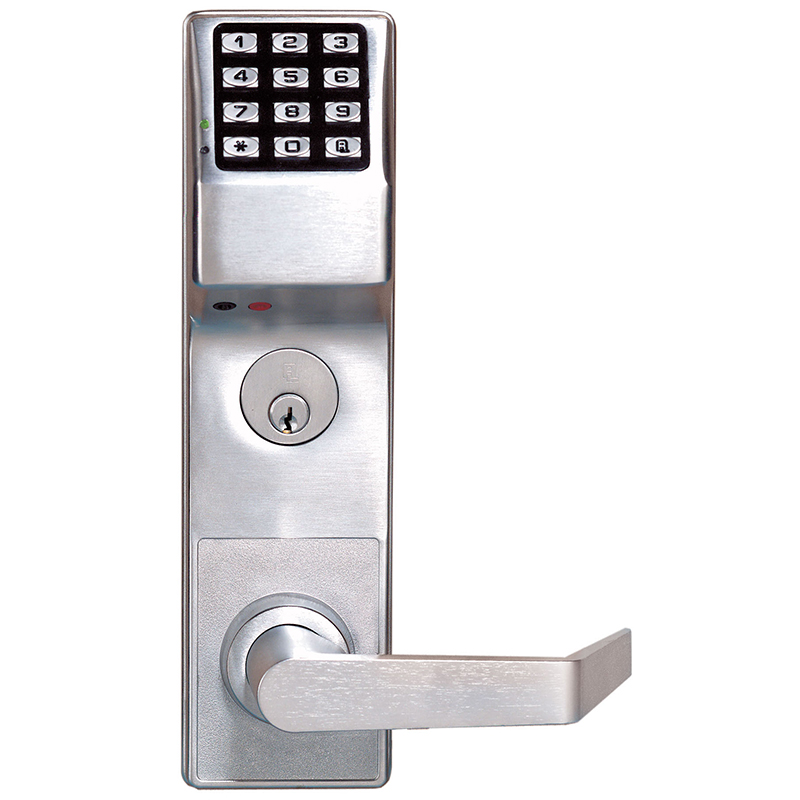

Alarm Lock ETPDLS1G/26DD93 Trilogy Exit Device Trim

Alarm Lock ETPDLS1G/26DD93 Trilogy Exit Device Trim offers a seamless blend of security and convenience for commercial applications. This pushbutton exit trim is equipped with a proximity reader, allowing for the programming of up to 2000 user codes. Designed to accommodate the Dorma 9300 series, it features a robust straight lever and a sleek satin chrome finish that complements various architectural styles. The weatherproof design ensures durability in various environments, while the 12-button metal keypad provides reliable access control. With a real-time clock and the ability to maintain a 40,000 event audit trail, this device allows for comprehensive monitoring of entry and exit activity. Users can be individually programmed to access the system via card only, code only, or both for enhanced security. This exit device trim is compatible with most major manufacturers’ rim and IC rim cylinders and is battery-operated, utilizing 5 AA batteries for ease of installation and maintenance. With features like up to 500 lock/unlock schedules, time zone support, and optional programming software, the Trilogy Exit Device Trim is an ideal solution for managing access in commercial settings while saving time and resources on guard tours. Enjoy peace of mind with this Grade 1 rated security solution.

Trilogy Exit Device Trim

Pushbutton Exit Trim with Prox Reader, 2000 Users, 40,000 Event Audit Trail, Weatherproof, Straight Lever, for Dorma 9300, Satin Chrome Finish

Add Trilogy convenience, programming, flexibility and audit trail to rim panic exit devices from most major manufacturers Trilogy Exit keyless lock Clutch mechanism insures long life and durability Fingertip and/or Windows Programmable 2000 User Codes: Master, manager, supervisor and users Real Time Clock for up to 40,000 Event Time/Date-Stamped Audit Trail Up to 500 Lock/Unlock Schedules (with Time Zone Support) Rugged 12-Button Metal Keypad Non-Handed; Fully Field Reversible Adaptable to most major manufacturers of standard RIM and IC RIM Cylinders Battery operated; uses 5 AA batteries Accepts most HID Proximity cards and keyfobs Users are individually programmed to use a card only, code only, or for highest security - both card and code Prox card data can be added to software by uploading from lock, by using AL-PRE or entering directly from computer using DL-WINDOWS software.

Pushbutton Exit Trim with Prox Reader.

TrilogyExit retrofits existing exit bars and saves manpower on guard tours.
