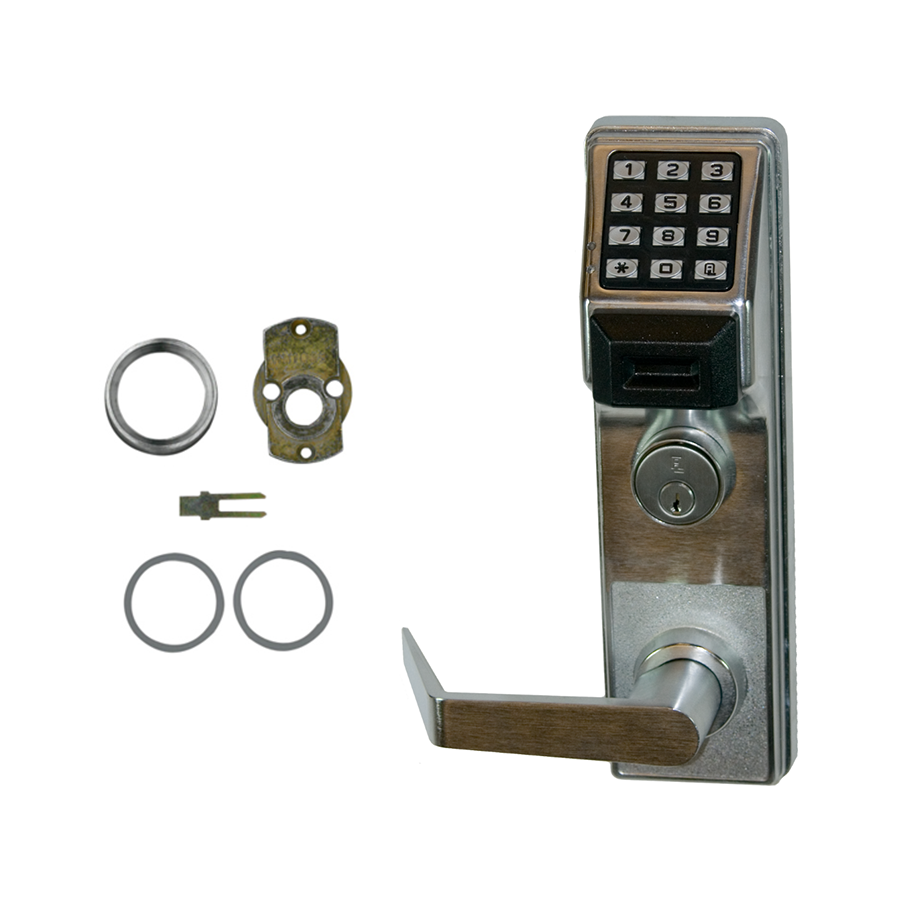

Alarm Lock ETPDNSRX-BIC/26DNS8 Networx Prox Reader Keypad - Sargent 88 Exit Trim, Weather Proof, 5000 Users

Alarm Lock Systems Inc ETPDNSRX-BIC/26DNS8 KIT is a state-of-the-art Networx Prox Reader Keypad designed to enhance access control while ensuring security and convenience. This upgrade features a new Sargent 88 exit trim, offering robust weatherproofing and an integrated (RX) Request to Exit function. With the capacity to support up to 5,000 users and 500 scheduled events, it provides an extensive audit trail of 35,000 events, making it ideal for high-traffic environments. The ETPDNSRX is engineered for seamless integration with existing exit devices, featuring a rugged clutch mechanism that guarantees long-lasting durability. Its non-handed design allows for easy installation on doors with a thickness of 1-5/8" to 1-7/8". The all-metal vandal-proof keypad facilitates secure access, accommodating user codes ranging from 3 to 6 digits. This advanced locking solution operates on batteries, eliminating the need for complex wiring or power supplies, significantly reducing installation time and costs. The lock's compatibility with various push bar models and its ability to integrate with HID Proximity cards make it a versatile choice for any security setup. With brushed chrome finish options, the ETPDNSRX not only provides functionality but also complements the aesthetic of modern spaces.

KIT - Networx Prox Reader Keypad - New Sargent 88 Exit Trim, Weather Proof, (RX) Request to Exit, Best SFIC Rim Cylinder Adaptor, 5000 Users, 500 Scheduled Events, 35,000 Audit Trail Events, 626/US26D Satin Chrome

Based on Trilogy, the #1 electronic standalone access locks, Networx Locking Products are networked to save staff labor, eliminating door-to-door programming and audit trail retrieval, by communicating wirelessly via Ethernet or 802.11B/G, all while providing the ultra-dependability, functionality & long battery life, original Trilogy's are known for. The expanded Networx line, for every type of door, combines to provide a quick, easy, economical access system for up to 2000 doors and 5000 users, with advanced features & functions, e.g., automatic schedules, event logs. But, with no wires to run, and no access panels or power supplies to buy or install, it can be a great time and budget saver for buildings, campuses, or office suites. At its simplest, it’s one Grade 1 wireless lock per door, installed in about an hour, all communicating to a single Gateway (your choice of gateways controls up to 63 locks), networked to any non-dedicated Windows based PC.

Features:

• Add Trilogy Networx keyless pushbutton convenience and labor-savings to any panic exit bar
• Rugged clutch mechanism insures long life and durability
• Flexible system monitoring, control & programming
• Models available for Von Duprin™, Sargent™, Yale™, Corbin/Russwin™, Dorma™, Marks M9900 or Arrow™ push bars
• Weatherproof and long-life battery operated
• ETPDN with built in HID Prox reader (shown right) accepts most HID Proximity cards and keyfobs; ETDLN has keypad only; Prox only model available
• For Request-to-Exit, specify model ETPDN-RX
• For Prox iClass™ ID cardholder support with REX, specify model ETPDNI-RX

Specifications:

• Lock Type: For use with exit device
• User Codes: 5000
• Code Length: 3-6 digits
• Vandal-Proof Keypad: All metal, 12 button
• Trim w/Rugged Clutch: Straight or curved lever
• Reader/Credential Support: ETPDLN for HID Prox; ETPDNI for iClass support
• Lockdown (Privacy): Global lockdown via lock, server or optional keyfob
• Request to Exit: ETPDN-RX; ETPDNI-RX with iClass support
• Handing: Non-handed, fully field reversible
• Door Thickness: 1-5/8 to 1-7/8"
• Cylinder: Generic rim cylinder supplied. For other manufacturers’ cylinders, adapters can be ordered separately
• Ratings: 3 Hour fire rated UL
• Finishes: US26D, US10B

Ordering Information:

• ETPDN: Trilogy Networx wireless access lock trim with built-in HID proximity ID card reader
• ETDLN: As above, with full-metal digital keypad only
• ETPDN-RX: Trilogy Networx wireless access lock trim with built-in HID proximity ID card reader with Request to Exit feature
• ETPDNI-RX: As above, with iClass support
