Alarm Lock ETPDNSRX-R/26DNS8 Networx Prox Reader Keypad - Sargent 88 Exit Trim, Weather Proof, 5000 Users

Alarm Lock Systems Inc ETPDNSRX-R/26DNS8 KIT - Networx Prox Reader Keypad is engineered for seamless integration with panic exit bars, offering keyless pushbutton convenience while enhancing security. This robust lock system supports up to 5,000 user codes and 500 scheduled events, making it ideal for a variety of applications, from office suites to large campuses. With its weatherproof design and long-lasting battery operation, this access control solution ensures durability in diverse environments. The all-metal, vandal-proof keypad features a 12-button layout, providing reliable access management for users. The ETPDNSRX-R model includes a built-in HID Prox reader compatible with most HID proximity cards and key fobs, while other models are available with keypad-only or iClass support. Installation is straightforward-one Grade 1 wireless lock per door can be set up in approximately one hour, without the need for extensive wiring or additional power supplies. The system is designed for flexibility, allowing for global lockdowns and customizable monitoring options. The ETPDNSRX-R also accommodates various door thicknesses and is compatible with Sargent 8888 cylinders. Additionally, it boasts a comprehensive audit trail with 35,000 events, ensuring you can track access with ease.

KIT - Networx Prox Reader Keypad - New Sargent 88 Exit Trim, Weather Proof, Sargent Rim Cylinder Adaptor, 5000 Users, 500 Scheduled Events, 35,000 Audit Trail Events, 626/US26D Satin Chrome

Based on Trilogy, the #1 electronic standalone access locks, Networx Locking Products are networked to save staff labor, eliminating door-to-door programming and audit trail retrieval, by communicating wirelessly via Ethernet or 802.11B/G, all while providing the ultra-dependability, functionality & long battery life, original Trilogy's are known for. The expanded Networx line, for every type of door, combines to provide a quick, easy, economical access system for up to 2000 doors and 5000 users, with advanced features & functions, e.g., automatic schedules, event logs. But, with no wires to run, and no access panels or power supplies to buy or install, it can be a great time and budget saver for buildings, campuses, or office suites. At its simplest, it’s one Grade 1 wireless lock per door, installed in about an hour, all communicating to a single Gateway (your choice of gateways controls up to 63 locks), networked to any non-dedicated Windows based PC.

Features:

• Add Trilogy Networx keyless pushbutton convenience and labor-savings to any panic exit bar
• Rugged clutch mechanism insures long life and durability
• Flexible system monitoring, control & programming
• Models available for Von Duprin™, Sargent™, Yale™, Corbin/Russwin™, Dorma™, Marks M9900 or Arrow™ push bars
• Weatherproof and long-life battery operated

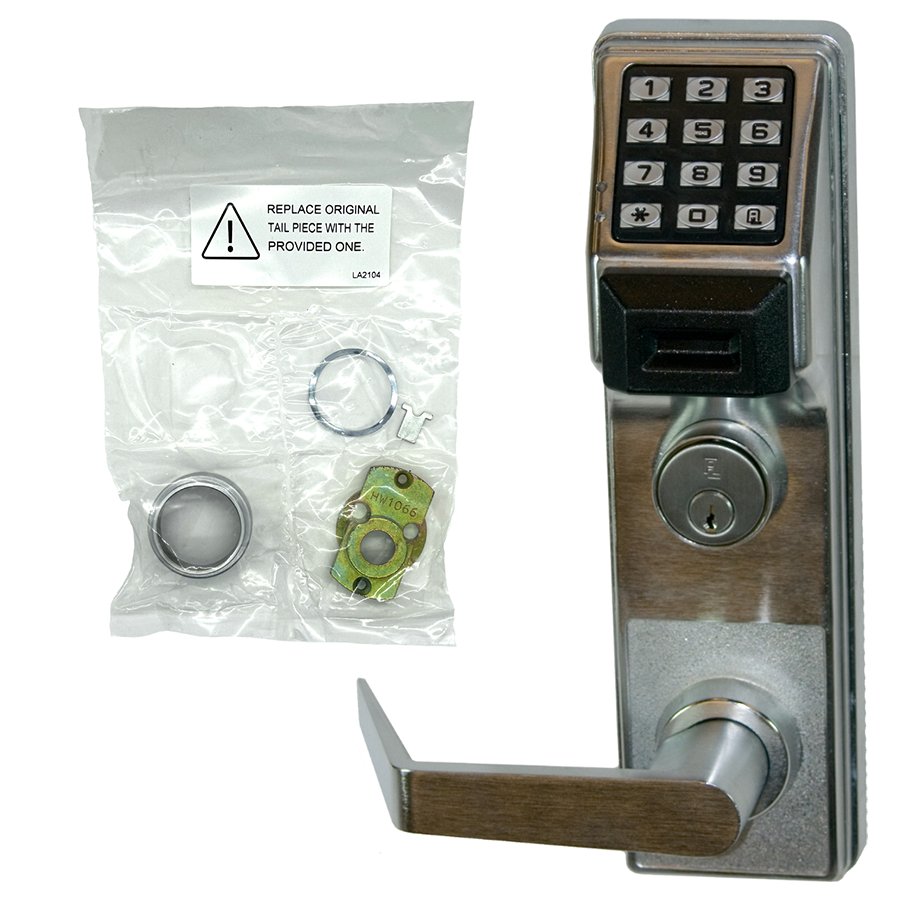

• ETPDN with built in HID Prox reader (shown right) accepts most HID Proximity cards and keyfobs; ETDLN has keypad only; Prox only model available
• For Request-to-Exit, specify model ETPDN-RX
• For Prox iClass™ ID cardholder support with REX, specify model ETPDNI-RX

Specifications:

• Lock Type: For use with exit device
• User Codes: 5000
• Code Length: 3-6 digits
• Vandal-Proof Keypad: All metal, 12 button
• Trim w/Rugged Clutch: Straight or curved lever
• Reader/Credential Support: ETPDLN for HID Prox; ETPDNI for iClass support
• Lockdown (Privacy): Global lockdown via lock, server or optional keyfob
• Request to Exit: ETPDN-RX; ETPDNI-RX with iClass support
• Handing: Non-handed, fully field reversible
• Door Thickness: 1-5/8 to 1-7/8"
• Cylinder: Generic rim cylinder supplied. For other manufacturers’ cylinders, adapters can be ordered separately
• Ratings: 3 Hour fire rated UL
• Finishes: US26D, US10B

Ordering Information:

• ETPDN: Trilogy Networx wireless access lock trim with built-in HID proximity ID card reader
• ETDLN: As above, with full-metal digital keypad only
• ETPDN-RX: Trilogy Networx wireless access lock trim with built-in HID proximity ID card reader with Request to Exit feature
• ETPDNI-RX: As above, with iClass support
