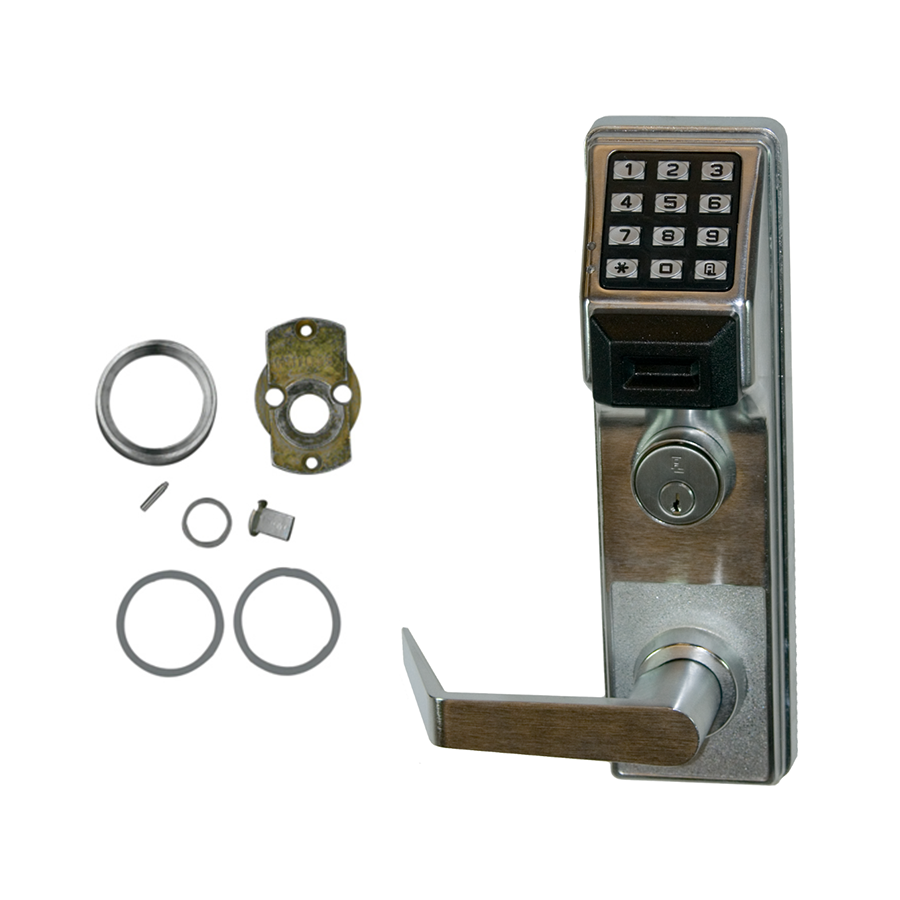

Alarm Lock ETPDNSRX-S/26DNS8 Networx Prox Reader Keypad with Sargent 88 Trim, Schlage Adaptor, 5000 Users

Alarm Lock Systems Inc ETPDNSRX-S/26DNS8 KIT is a state-of-the-art Networx Prox Reader Keypad designed to enhance security and access management for commercial properties. This system integrates seamlessly with new Sargent 88 exit trim, providing a weatherproof solution that is both durable and efficient. The keypad supports up to 5,000 user codes and accommodates 500 scheduled events, making it ideal for businesses with high traffic. With a robust audit trail capacity of 35,000 events, you can easily track access and enhance security protocols. The all-metal, vandal-proof 12-button keypad ensures longevity, while the rugged clutch mechanism promotes reliable performance over time. Installation is straightforward, with no wiring required, allowing for quick setup on doors with a thickness of 1-5/8" to 1-7/8". The ETPDNSRX model features a built-in HID Prox reader compatible with most HID proximity cards and key fobs, while also allowing for flexible access options through its global lockdown capability. Designed for use with exit devices, this Grade 1 lock offers non-handed, fully reversible handing, enhancing its adaptability across various applications. Experience the convenience and reliability of Alarm Lock Systems Inc's advanced security solutions for your access control needs.

KIT - Networx Prox Reader Keypad - New Sargent 88 Exit Trim, Weather Proof, Schlage Rim Cylinder Adaptor, 5000 Users, 500 Scheduled Events, 35,000 Audit Trail Events, 626/US26D Satin Chrome

Based on Trilogy, the #1 electronic standalone access locks, Networx Locking Products are networked to save staff labor, eliminating door-to-door programming and audit trail retrieval, by communicating wirelessly via Ethernet or 802.11B/G, all while providing the ultra-dependability, functionality & long battery life, original Trilogy's are known for. The expanded Networx line, for every type of door, combines to provide a quick, easy, economical access system for up to 2000 doors and 5000 users, with advanced features & functions, e.g., automatic schedules, event logs. But, with no wires to run, and no access panels or power supplies to buy or install, it can be a great time and budget saver for buildings, campuses, or office suites. At its simplest, it’s one Grade 1 wireless lock per door, installed in about an hour, all communicating to a single Gateway (your choice of gateways controls up to 63 locks), networked to any non-dedicated Windows based PC.

Features:

• Add Trilogy Networx keyless pushbutton convenience and labor-savings to any panic exit bar
• Rugged clutch mechanism insures long life and durability
• Flexible system monitoring, control & programming
• Models available for Von Duprin™, Sargent™, Yale™, Corbin/Russwin™, Dorma™, Marks M9900 or Arrow™ push bars
• Weatherproof and long-life battery operated
• ETPDN with built in HID Prox reader (shown right) accepts most HID Proximity cards and keyfobs; ETDLN has keypad only; Prox only model available
• For Request-to-Exit, specify model ETPDN-RX
• For Prox iClass™ ID cardholder support with REX, specify model ETPDNI-RX

Specifications:

• Lock Type: For use with exit device
• User Codes: 5000
• Code Length: 3-6 digits
• Vandal-Proof Keypad: All metal, 12 button
• Trim w/Rugged Clutch: Straight or curved lever
• Reader/Credential Support: ETPDLN for HID Prox; ETPDNI for iClass support
• Lockdown (Privacy): Global lockdown via lock, server or optional keyfob
• Request to Exit: ETPDN-RX; ETPDNI-RX with iClass support
• Handing: Non-handed, fully field reversible
• Door Thickness: 1-5/8 to 1-7/8"
• Cylinder: Generic rim cylinder supplied. For other manufacturers’ cylinders, adapters can be ordered separately
• Ratings: 3 Hour fire rated UL
• Finishes: US26D, US10B

Ordering Information:

• ETPDN: Trilogy Networx wireless access lock trim with built-in HID proximity ID card reader
• ETDLN: As above, with full-metal digital keypad only
• ETPDN-RX: Trilogy Networx wireless access lock trim with built-in HID proximity ID card reader with Request to Exit feature
• ETPDNI-RX: As above, with iClass support
