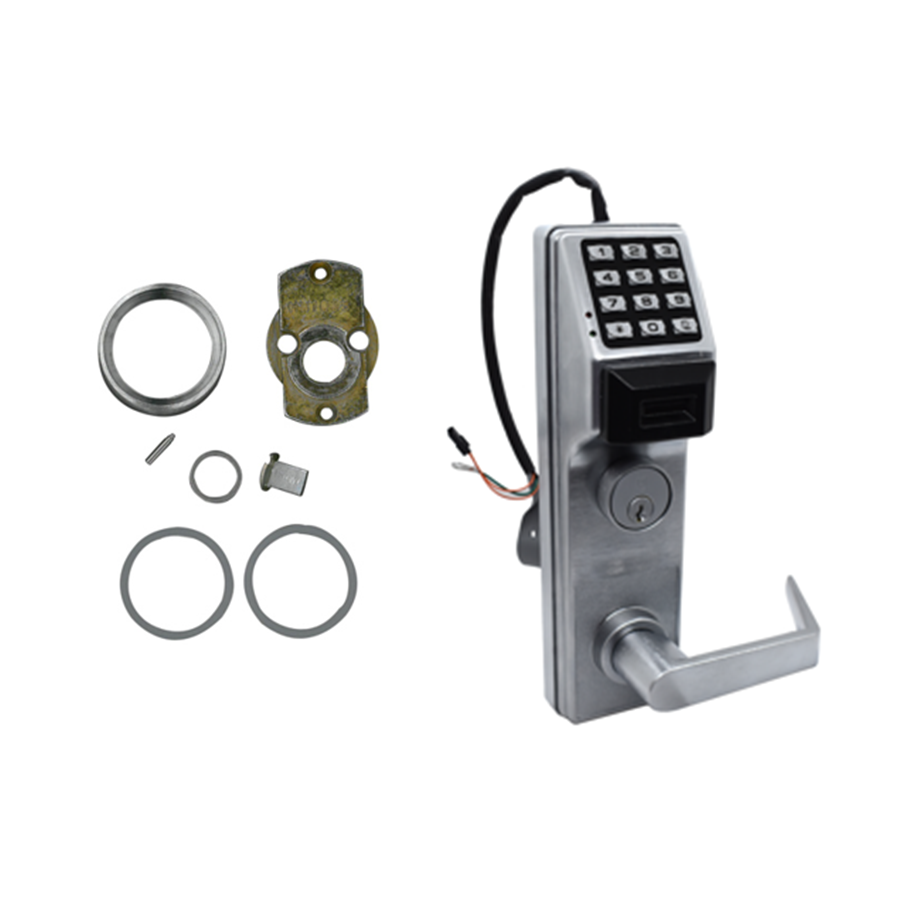

Alarm Lock ETPDNSRX-S/26DV99 Networx Prox Reader Keypad - Von Duprin Exit Trim, Weather Proof, Schlage Adaptor

Alarm Lock Systems Inc ETPDNSRX-S/26DV99 KIT is a sophisticated Networx Prox Reader Keypad designed to enhance security for exit devices while offering unparalleled ease of use. This innovative system supports up to 5,000 users and manages 500 scheduled events, making it ideal for high-traffic environments. The rugged, vandal-proof metal keypad features a 12-button interface, ensuring durability and reliability in demanding conditions. With its weatherproof design and battery-operated functionality, the ETPDNSRX-S/26DV99 KIT is perfect for outdoor applications, providing long-lasting performance without the hassle of running wires or installing access panels. The integrated HID Prox reader accommodates most HID proximity cards and keyfobs, streamlining access control. This lock trim is compatible with Von Duprin exit devices, and its non-handed design allows for easy installation on doors ranging from 1-5/8 to 1-7/8 inches thick. Users can manage global lockdowns, monitor access events via an extensive 35,000 event audit trail, and enjoy flexible programming options through a dedicated Windows PC. Available in a sleek satin chrome finish (US26D), this Grade 1 lock combines sophisticated technology with user-friendly features, making it a valuable addition to any security system.

KIT - Networx Prox Reader Keypad - Von Duprin Exit Trim, Weather Proof, Schlage Rim Cylinder Adaptor, 5000 Users, 500 Scheduled Events, 35,000 Audit Trail Events, 626/US26D Satin Chrome

Based on Trilogy, the #1 electronic standalone access locks, Networx Locking Products are networked to save staff labor, eliminating door-to-door programming and audit trail retrieval, by communicating wirelessly via Ethernet or 802.11B/G, all while providing the ultra-dependability, functionality & long battery life, original Trilogy's are known for. The expanded Networx line, for every type of door, combines to provide a quick, easy, economical access system for up to 2000 doors and 5000 users, with advanced features & functions, e.g., automatic schedules, event logs. But, with no wires to run, and no access panels or power supplies to buy or install, it can be a great time and budget saver for buildings, campuses, or office suites. At its simplest, it’s one Grade 1 wireless lock per door, installed in about an hour, all communicating to a single Gateway (your choice of gateways controls up to 63 locks), networked to any non-dedicated Windows based PC.

Features:

• Add Trilogy Networx keyless pushbutton convenience and labor-savings to any panic exit bar
• Rugged clutch mechanism insures long life and durability
• Flexible system monitoring, control & programming
• Models available for Von Duprin™, Sargent™, Yale™, Corbin/Russwin™, Dorma™, Marks M9900 or Arrow™ push bars
• Weatherproof and long-life battery operated
• ETPDN with built in HID Prox reader (shown right) accepts most HID Proximity cards and keyfobs; ETDLN has keypad only; Prox only model available
• For Request-to-Exit, specify model ETPDN-RX
• For Prox iClass™ ID cardholder support with REX, specify model ETPDNI-RX

Specifications:

• Lock Type: For use with exit device
• User Codes: 5000
• Code Length: 3-6 digits
• Vandal-Proof Keypad: All metal, 12 button
• Trim w/Rugged Clutch: Straight or curved lever
• Reader/Credential Support: ETPDLN for HID Prox; ETPDNI for iClass support
• Lockdown (Privacy): Global lockdown via lock, server or optional keyfob
• Request to Exit: ETPDN-RX; ETPDNI-RX with iClass support
• Handing: Non-handed, fully field reversible
• Door Thickness: 1-5/8 to 1-7/8"
• Cylinder: Generic rim cylinder supplied. For other manufacturers’ cylinders, adapters can be ordered separately
• Ratings: 3 Hour fire rated UL
• Finishes: US26D, US10B

Ordering Information:

• ETPDN: Trilogy Networx wireless access lock trim with built-in HID proximity ID card reader
• ETDLN: As above, with full-metal digital keypad only
• ETPDN-RX: Trilogy Networx wireless access lock trim with built-in HID proximity ID card reader with Request to Exit feature
• ETPDNI-RX: As above, with iClass support
