Alarm Lock ETPDNSRX-SIC/26DM99 Networx Prox Reader Keypad - Marks M9900 Exit Trim, Weather Proof, 5000 Users

Alarm Lock Systems Inc ETPDNSRX-SIC/26DM99 KIT is a cutting-edge access control solution designed for enhanced security and convenience. This Networx Prox Reader Keypad seamlessly integrates with Marks M9900 exit trim, providing weatherproof durability and advanced functionality. With support for up to 5,000 users and 500 scheduled events, you can effectively manage access in high-traffic areas without the hassle of traditional systems. The ETPDNSRX's rugged clutch mechanism ensures long-lasting performance, while its all-metal, vandal-proof 12-button keypad offers reliable operation. This system allows for easy programming and monitoring through wireless networking, eliminating the need for complex wiring and installation. It supports HID Proximity cards and key fobs, making it versatile for various user needs. Installation is straightforward, accommodating door thicknesses of 1-5/8 to 1-7/8 inches and featuring non-handed, fully reversible handing. The system also includes global lockdown capabilities, enhancing security during emergencies. With a fire rating of 3 hours and the option for iClass support, this advanced locking solution meets diverse security requirements. Choose the Alarm Lock Systems Inc ETPDNSRX-SIC/26DM99 KIT for a reliable, efficient, and user-friendly access management solution that simplifies security for any building or facility.

KIT - Networx Prox Reader Keypad - Marks M9900 Exit Trim, Weather Proof, (RX) Request to Exit, Schlage FSIC Rim Cylinder Adaptor, 5000 Users, 500 Scheduled Events, 35,000 Audit Trail Events, 626/US26D Satin Chrome

Based on Trilogy, the #1 electronic standalone access locks, Networx Locking Products are networked to save staff labor, eliminating door-to-door programming and audit trail retrieval, by communicating wirelessly via Ethernet or 802.11B/G, all while providing the ultra-dependability, functionality & long battery life, original Trilogy's are known for. The expanded Networx line, for every type of door, combines to provide a quick, easy, economical access system for up to 2000 doors and 5000 users, with advanced features & functions, e.g., automatic schedules, event logs. But, with no wires to run, and no access panels or power supplies to buy or install, it can be a great time and budget saver for buildings, campuses, or office suites. At its simplest, it’s one Grade 1 wireless lock per door, installed in about an hour, all communicating to a single Gateway (your choice of gateways controls up to 63 locks), networked to any non-dedicated Windows based PC.

Features:

• Add Trilogy Networx keyless pushbutton convenience and labor-savings to any panic exit bar
• Rugged clutch mechanism insures long life and durability
• Flexible system monitoring, control & programming
• Models available for Von Duprin™, Sargent™, Yale™, Corbin/Russwin™, Dorma™, Marks M9900 or Arrow™ push bars
• Weatherproof and long-life battery operated

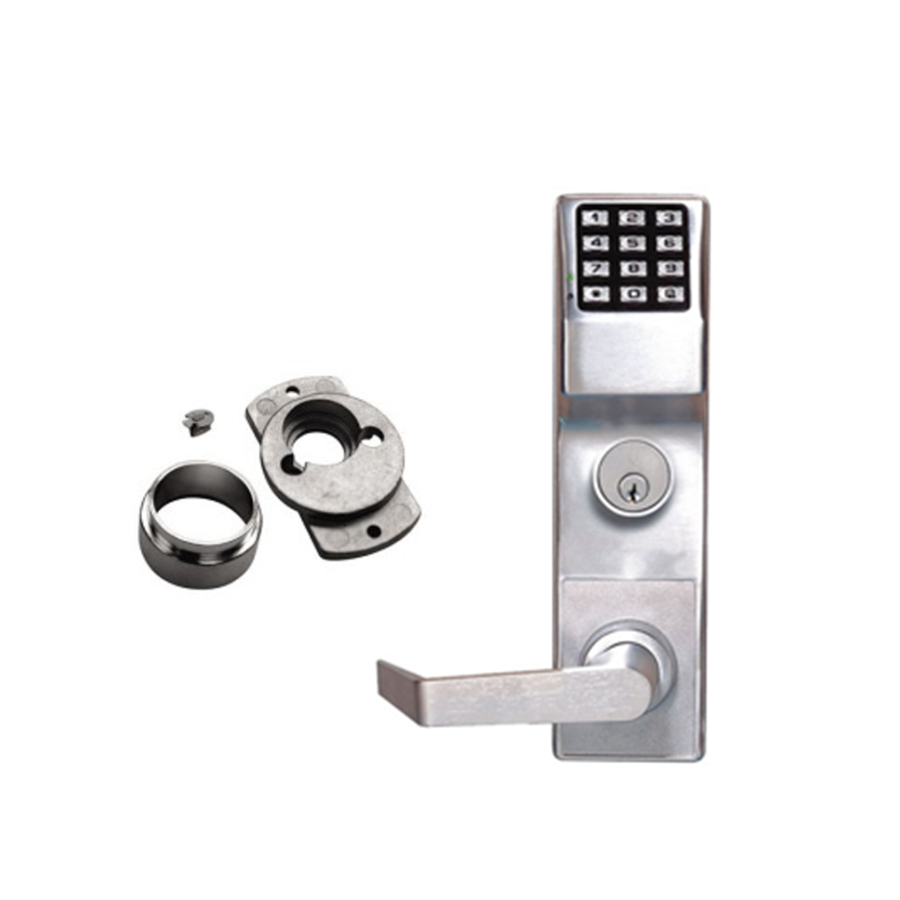

• ETPDN with built in HID Prox reader (shown right) accepts most HID Proximity cards and keyfobs; ETDLN has keypad only; Prox only model available
• For Request-to-Exit, specify model ETPDN-RX
• For Prox iClass™ ID cardholder support with REX, specify model ETPDNI-RX

Specifications:

• Lock Type: For use with exit device
• User Codes: 5000
• Code Length: 3-6 digits
• Vandal-Proof Keypad: All metal, 12 button
• Trim w/Rugged Clutch: Straight or curved lever
• Reader/Credential Support: ETPDLN for HID Prox; ETPDNI for iClass support
• Lockdown (Privacy): Global lockdown via lock, server or optional keyfob
• Request to Exit: ETPDN-RX; ETPDNI-RX with iClass support
• Handing: Non-handed, fully field reversible
• Door Thickness: 1-5/8 to 1-7/8"
• Cylinder: Generic rim cylinder supplied. For other manufacturers’ cylinders, adapters can be ordered separately
• Ratings: 3 Hour fire rated UL
• Finishes: US26D, US10B

Ordering Information:

• ETPDN: Trilogy Networx wireless access lock trim with built-in HID proximity ID card reader
• ETDLN: As above, with full-metal digital keypad only
• ETPDN-RX: Trilogy Networx wireless access lock trim with built-in HID proximity ID card reader with Request to Exit feature
• ETPDNI-RX: As above, with iClass support
