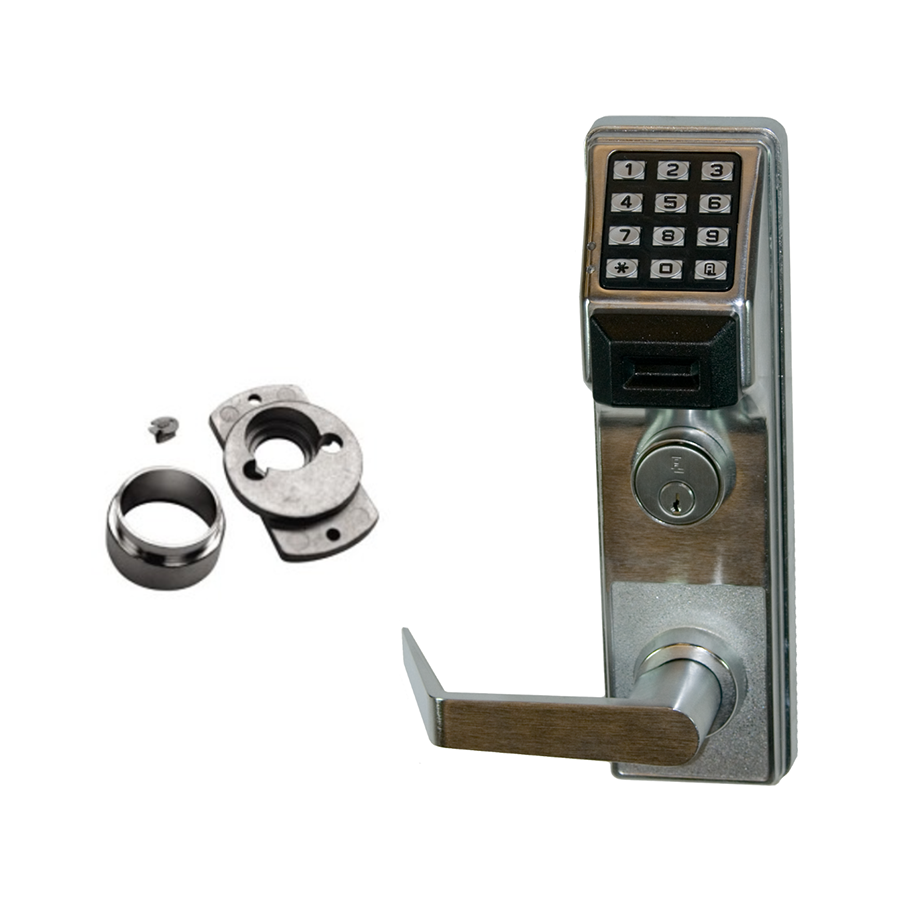

Alarm Lock ETPDNSRX-SIC/26DNS8 Networx Prox Reader Keypad - Sargent 88 Exit Trim, Weather Proof, 5000 Users

Alarm Lock Systems Inc ETPDNSRX-SIC/26DNS8 KIT is a sophisticated Networx Prox Reader Keypad designed to enhance security while simplifying access management. This system, built on the trusted Trilogy platform, combines the convenience of keyless entry with advanced features, making it ideal for various commercial environments. The rugged design is weatherproof and powered by long-lasting batteries, ensuring reliable operation in any condition. This model accommodates up to 5,000 users and 500 scheduled events, providing a robust solution for managing access across multiple doors. With its 12-button vandal-proof keypad and built-in HID proximity card reader, the ETPDNSRX-SIC/26DNS8 KIT offers flexible credential options, including support for iClass™ cards. The easy installation process allows for a Grade 1 wireless lock to be set up in about an hour, eliminating the need for extensive wiring. Key features include a global lockdown capability, a comprehensive audit trail of up to 35,000 events, and a variety of compatible exit devices. It supports a door thickness of 1-5/8" to 1-7/8" and includes a generic rim cylinder, with adapters available for other manufacturers. The sleek satin chrome finish not only enhances aesthetics but also ensures durability, making the ETPDNSRX-SIC/26DNS8 KIT an excellent choice for modern security solutions.

KIT - Networx Prox Reader Keypad - New Sargent 88 Exit Trim, Weather Proof, (RX) Request to Exit, Schlage FSIC Rim Cylinder Adaptor Less, (Comes with OEM SC1 Rim), 5000 Users, 500 Scheduled Events, 35,000 Audit Trail Events, 626/US26D Satin Chrome

Based on Trilogy, the #1 electronic standalone access locks, Networx Locking Products are networked to save staff labor, eliminating door-to-door programming and audit trail retrieval, by communicating wirelessly via Ethernet or 802.11B/G, all while providing the ultra-dependability, functionality & long battery life, original Trilogy's are known for. The expanded Networx line, for every type of door, combines to provide a quick, easy, economical access system for up to 2000 doors and 5000 users, with advanced features & functions, e.g., automatic schedules, event logs. But, with no wires to run, and no access panels or power supplies to buy or install, it can be a great time and budget saver for buildings, campuses, or office suites. At its simplest, it’s one Grade 1 wireless lock per door, installed in about an hour, all communicating to a single Gateway (your choice of gateways controls up to 63 locks), networked to any non-dedicated Windows based PC.

Features:

• Add Trilogy Networx keyless pushbutton convenience and labor-savings to any panic exit bar
• Rugged clutch mechanism insures long life and durability
• Flexible system monitoring, control & programming
• Models available for Von Duprin™, Sargent™, Yale™, Corbin/Russwin™, Dorma™, Marks M9900 or Arrow™ push bars
• Weatherproof and long-life battery operated
• ETPDN with built in HID Prox reader (shown right) accepts most HID Proximity cards and keyfobs; ETDLN has keypad only; Prox only model available
• For Request-to-Exit, specify model ETPDN-RX
• For Prox iClass™ ID cardholder support with REX, specify model ETPDNI-RX

Specifications:

• Lock Type: For use with exit device
• User Codes: 5000
• Code Length: 3-6 digits
• Vandal-Proof Keypad: All metal, 12 button
• Trim w/Rugged Clutch: Straight or curved lever
• Reader/Credential Support: ETPDLN for HID Prox; ETPDNI for iClass support
• Lockdown (Privacy): Global lockdown via lock, server or optional keyfob
• Request to Exit: ETPDN-RX; ETPDNI-RX with iClass support
• Handing: Non-handed, fully field reversible
• Door Thickness: 1-5/8 to 1-7/8"
• Cylinder: Generic rim cylinder supplied. For other manufacturers’ cylinders, adapters can be ordered separately
• Ratings: 3 Hour fire rated UL
• Finishes: US26D, US10B

Ordering Information:

• ETPDN: Trilogy Networx wireless access lock trim with built-in HID proximity ID card reader
• ETDLN: As above, with full-metal digital keypad only
• ETPDN-RX: Trilogy Networx wireless access lock trim with built-in HID proximity ID card reader with Request to Exit feature
• ETPDNI-RX: As above, with iClass support
