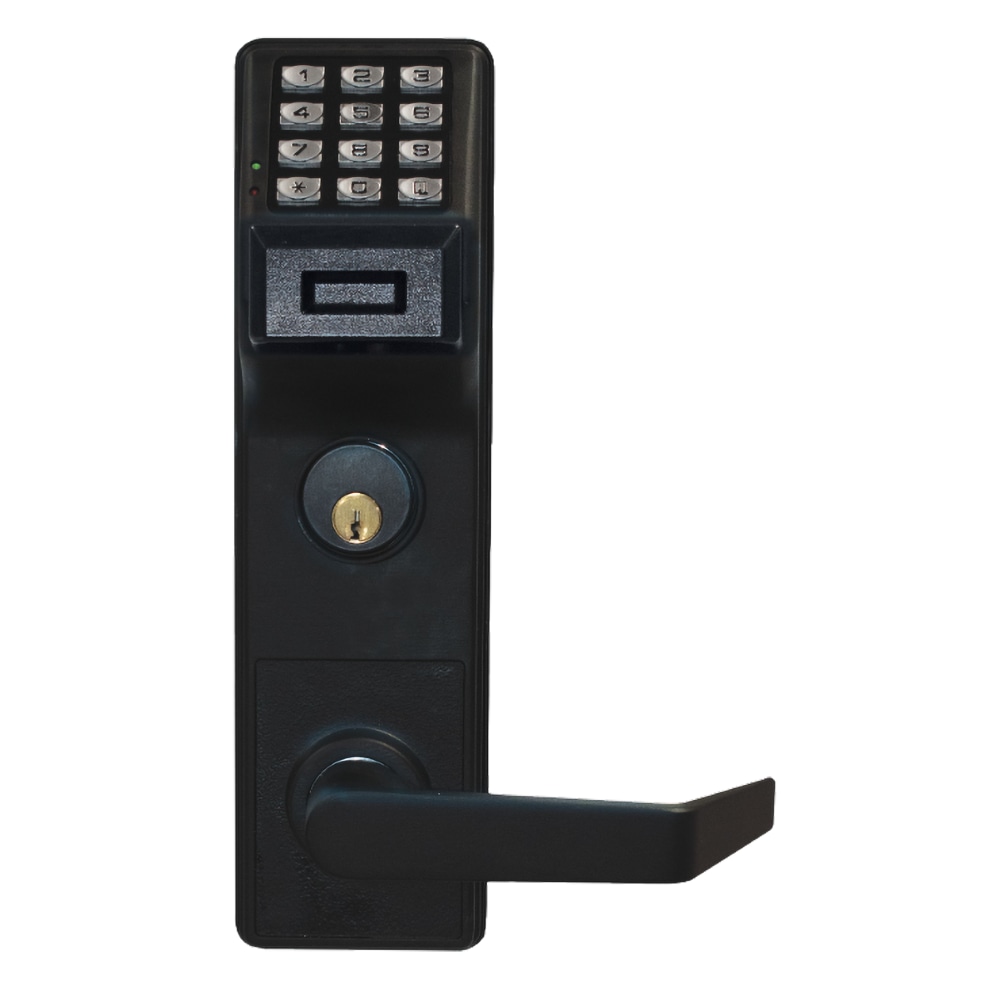

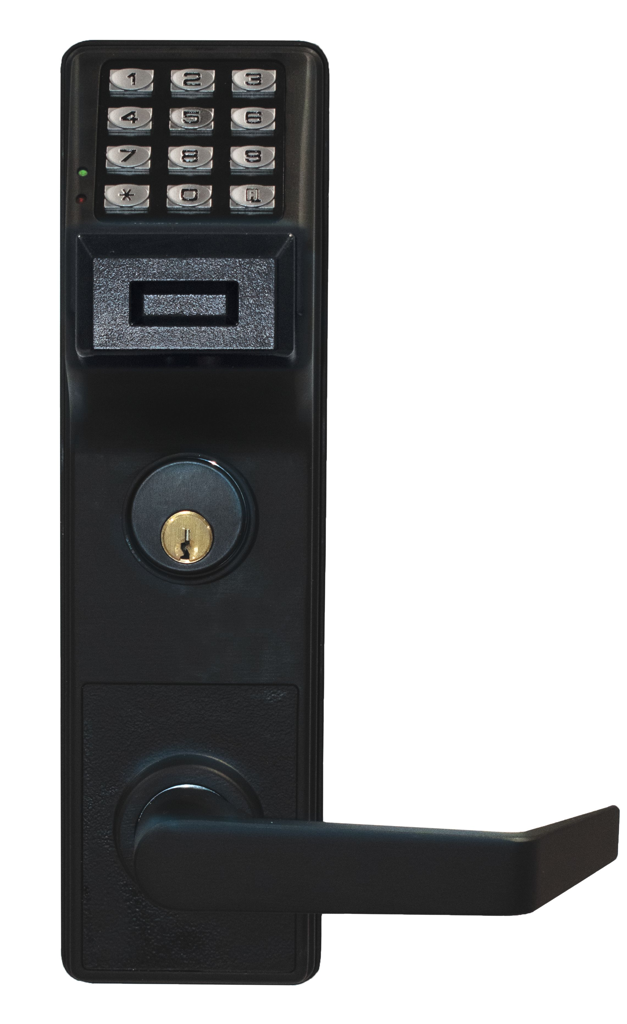

Alarm Lock ETPDNSRX/19M99 Wireless Prox/Pin Exit Lock with REX DPS for Marks M9900 Panic, Matte Black

Alarm Lock Systems Inc ETPDNSRX/19M99 Wireless Networking Prox/Pin Exit Lock offers a streamlined, efficient access control solution ideal for various environments. Built on the trusted Trilogy platform, this lock ensures easy wireless communication via Ethernet or 802.11B/G, eliminating the need for cumbersome door-to-door programming and audit trail retrieval. With the capability to manage up to 2,000 doors and 5,000 user codes, it is perfect for buildings, campuses, and office suites. This model features a rugged, vandal-proof 12-button keypad and a built-in HID proximity card reader, supporting both Prox and iClass credentials. Its flexible programming capabilities allow for global lockdowns and detailed event logging, enhancing security management. Installation is straightforward, typically completed in under an hour with no wiring required, making it a budget-friendly choice. The ETPDNSRX/19M99 is designed for doors ranging from 1-5/8" to 1-7/8" thick and is compatible with Marks M9900 panic exit devices. Weatherproof and battery-operated, it boasts an impressive Grade 1 rating for durability and reliability. With features like low battery alerts and an audible entry indicator, this lock seamlessly combines convenience and security, making it a superior choice for modern access management.

Wireless Networking Prox/Pin Exit Lock, Request to Exit (REX), Door Position Switch (DPS), For Use with Marks M9900 Panic, 622/US19 Matte Black

Based on Trilogy, the #1 electronic standalone access locks, Networx Locking Products are networked to save staff labor, eliminating door-to-door programming and audit trail retrieval, by communicating wirelessly via Ethernet or 802.11B/G, all while providing the ultra-dependability, functionality & long battery life, original Trilogy's are known for. The expanded Networx line, for every type of door, combines to provide a quick, easy, economical access system for up to 2000 doors and 5000 users, with advanced features & functions, e.g., automatic schedules, event logs. But, with no wires to run, and no access panels or power supplies to buy or install, it can be a great time and budget saver for buildings, campuses, or office suites. At its simplest, it’s one Grade 1 wireless lock per door, installed in about an hour, all communicating to a single Gateway (your choice of gateways controls up to 63 locks), networked to any non-dedicated Windows based PC.

Features:

• Add Trilogy Networx keyless pushbutton convenience and labor-savings to any panic exit bar
• Rugged clutch mechanism insures long life and durability
• Flexible system monitoring, control & programming
• Models available for Von Duprin™, Sargent™, Yale™, Corbin/Russwin™, Dorma™, Marks M9900 or Arrow™ push bars
• Weatherproof and long-life battery operated
• ETPDN with built in HID Prox reader (shown right) accepts most HID Proximity cards and keyfobs; ETDLN has keypad only; Prox only model available
• For Request-to-Exit, specify model ETPDN-RX
• For Prox iClass™ ID cardholder support with REX, specify model ETPDNI-RX

Specifications:

• Lock Type: For use with exit device
• User Codes: 5000
• Code Length: 3-6 digits
• Vandal-Proof Keypad: All metal, 12 button
• Trim w/Rugged Clutch: Straight or curved lever
• Reader/Credential Support: ETPDLN for HID Prox; ETPDNI for iClass support
• Lockdown (Privacy): Global lockdown via lock, server or optional keyfob
• Request to Exit: ETPDN-RX; ETPDNI-RX with iClass support
• Handing: Non-handed, fully field reversible
• Door Thickness: 1-5/8 to 1-7/8"
• Cylinder: Generic rim cylinder supplied. For other manufacturers’ cylinders, adapters can be ordered separately
• Ratings: 3 Hour fire rated UL
• Finishes: US26D, US10B

Ordering Information:

• ETPDN: Trilogy Networx wireless access lock trim with built-in HID proximity ID card reader
• ETDLN: As above, with full-metal digital keypad only
• ETPDN-RX: Trilogy Networx wireless access lock trim with built-in HID proximity ID card reader with Request to Exit feature
• ETPDNI-RX: As above, with iClass support
