Alarm Lock ETPDNSRX/26DC50 Networx Prox Reader Keypad - Corbin ED5200 Exit Trim, Weather Proof, Schlage C

Alarm Lock Systems Inc ETPDNSRX/26DC50 Networx Prox Reader Keypad offers advanced access control solutions for modern security needs. Designed specifically for use with exit devices, this weatherproof keypad integrates seamlessly into your access management system, supporting up to 5,000 users and 500 scheduled events. With a durable, all-metal, 12-button vandal-proof keypad, it ensures reliability and longevity, making it ideal for high-traffic commercial environments. This model features a built-in HID Prox reader, allowing it to accept most HID proximity cards and keyfobs, facilitating effortless entry. For environments requiring a Request-to-Exit function, the ETPDN-RX variant is available, enhancing safety and compliance. With a straightforward installation process that takes about an hour, this system eliminates the need for extensive wiring and external power supplies, making it a cost-effective solution for buildings and campuses. The ETPDNSRX/26DC50 operates on a long-lasting battery, supports global lockdown capabilities, and features an impressive audit trail of up to 35,000 events. Compatible with Corbin ED5000 exit devices, this Grade 1 lock trim is designed to withstand rigorous use while maintaining its aesthetic appeal with a satin chrome finish. Upgrade your security system with this versatile and robust locking solution.

Networx Prox Reader Keypad - Corbin ED5200 Exit Trim, Weather Proof, (RX) Request to Exit, Schlage C Keyway, 5000 Users, 500 Scheduled Events, 35,000 Audit Trail Events, 626/US26D Satin Chrome

Based on Trilogy, the #1 electronic standalone access locks, Networx Locking Products are networked to save staff labor, eliminating door-to-door programming and audit trail retrieval, by communicating wirelessly via Ethernet or 802.11B/G, all while providing the ultra-dependability, functionality & long battery life, original Trilogy's are known for. The expanded Networx line, for every type of door, combines to provide a quick, easy, economical access system for up to 2000 doors and 5000 users, with advanced features & functions, e.g., automatic schedules, event logs. But, with no wires to run, and no access panels or power supplies to buy or install, it can be a great time and budget saver for buildings, campuses, or office suites. At its simplest, it’s one Grade 1 wireless lock per door, installed in about an hour, all communicating to a single Gateway (your choice of gateways controls up to 63 locks), networked to any non-dedicated Windows based PC.

Features:

• Add Trilogy Networx keyless pushbutton convenience and labor-savings to any panic exit bar
• Rugged clutch mechanism insures long life and durability
• Flexible system monitoring, control & programming
• Models available for Von Duprin™, Sargent™, Yale™, Corbin/Russwin™, Dorma™, Marks M9900 or Arrow™ push bars
• Weatherproof and long-life battery operated

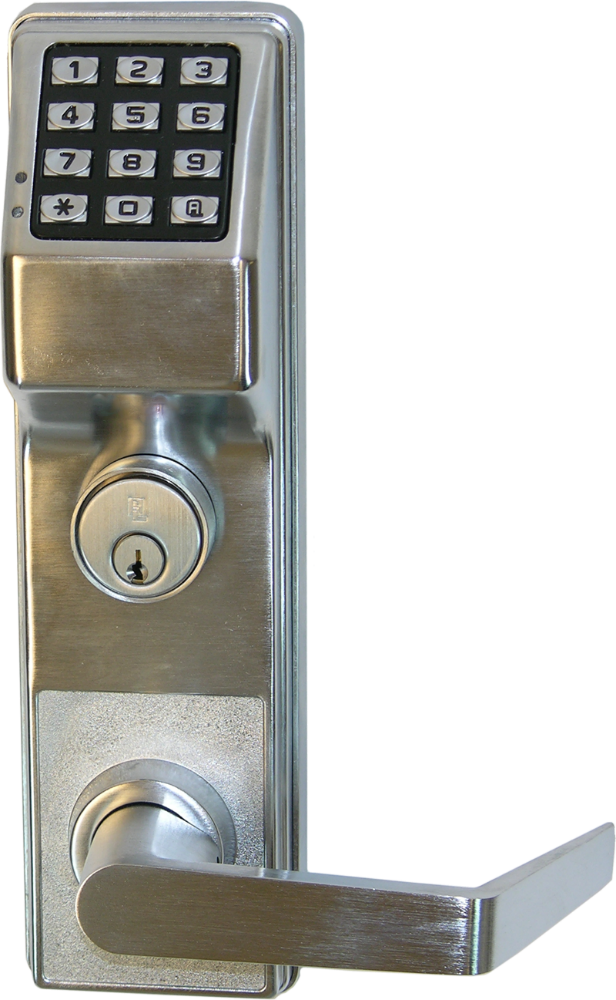

• ETPDN with built in HID Prox reader (shown right) accepts most HID Proximity cards and keyfobs; ETDLN has keypad only; Prox only model available
• For Request-to-Exit, specify model ETPDN-RX
• For Prox iClass™ ID cardholder support with REX, specify model ETPDNI-RX

Specifications:

• Lock Type: For use with exit device
• User Codes: 5000
• Code Length: 3-6 digits
• Vandal-Proof Keypad: All metal, 12 button
• Trim w/Rugged Clutch: Straight or curved lever
• Reader/Credential Support: ETPDLN for HID Prox; ETPDNI for iClass support
• Lockdown (Privacy): Global lockdown via lock, server or optional keyfob
• Request to Exit: ETPDN-RX; ETPDNI-RX with iClass support
• Handing: Non-handed, fully field reversible
• Door Thickness: 1-5/8 to 1-7/8"
• Cylinder: Generic rim cylinder supplied. For other manufacturers’ cylinders, adapters can be ordered separately
• Ratings: 3 Hour fire rated UL
• Finishes: US26D, US10B

Ordering Information:

• ETPDN: Trilogy Networx wireless access lock trim with built-in HID proximity ID card reader
• ETDLN: As above, with full-metal digital keypad only
• ETPDN-RX: Trilogy Networx wireless access lock trim with built-in HID proximity ID card reader with Request to Exit feature
• ETPDNI-RX: As above, with iClass support
