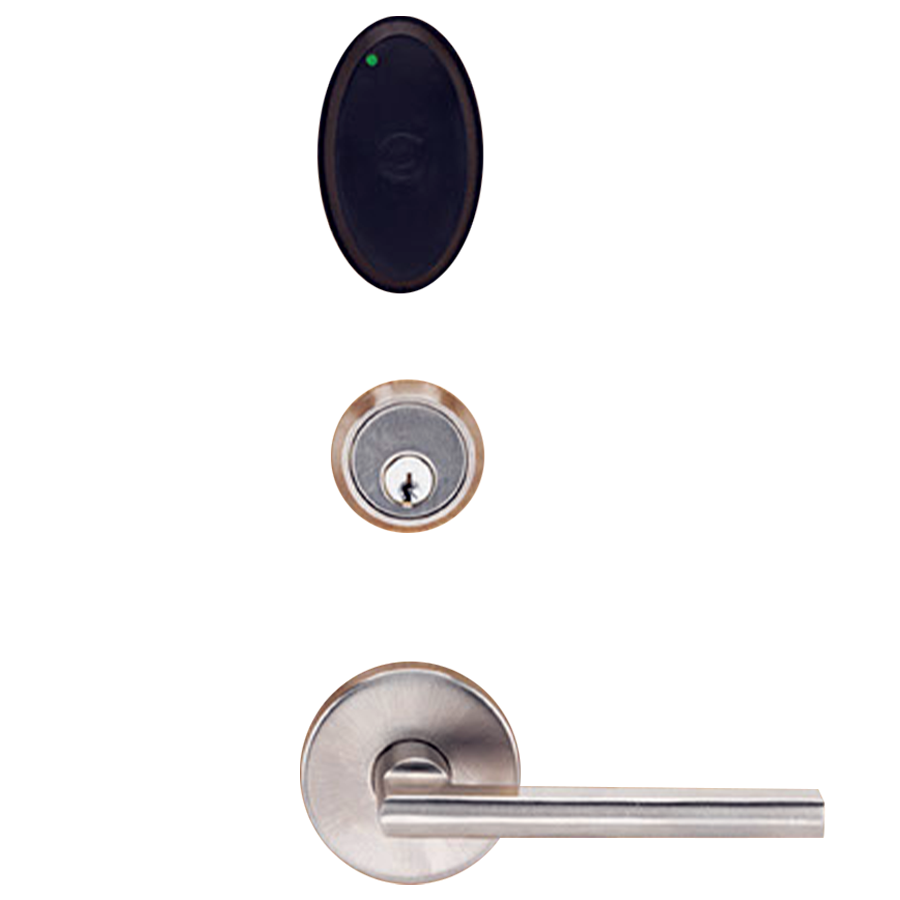

Alarm Lock N90S2195F26D ArchiTech Wireless Cylindrical Lock, 5000 Users, Satin Chrome, Grade 1

Alarm Lock Systems Inc N90S2195F26D ArchiTech Network Wireless Cylindrical Lock offers robust security tailored for educational, commercial, and residential multi-dwelling applications. This Grade 1 certified lock supports up to 5,000 users and 500 scheduled events, ensuring seamless access management. With a 36,000 event audit trail, you can easily monitor and review access history, enhancing your security protocols. Designed with surface mount electronics and a square prox reader, this lock integrates effortlessly into existing enterprise systems or new construction projects. The satin chrome finish (626/US26D) adds an attractive touch to any door. Its storeroom function and Schlage C keyway provide additional flexibility and security. The N90S2195F26D operates on 4 AA batteries, boasting a battery life of 3 to 4 years due to its advanced power-saving circuit. Installation is straightforward, with manual card enrollment and wireless programming capabilities extending up to 100 feet. The lock is compatible with various architectural trims and lever designs, making it a versatile choice for any setting. With features like a real-time clock, electronic deadbolt monitoring, and a self-cleaning motor, this lock is engineered for durability and ease of use, ensuring your property remains secure and accessible.

ArchiTech Network Wireless Cylindrical Lock, 5000 Users, 500 Scheduled Events, 36,000 Event Audit Trail, Surface Mount Electronics (S), Square Prox Reader (2), Grade 1 Marks Lever (195), Storeroom Function (F), Schlage C Keyway, 626/US26D Satin Chrome

Ideal for educational, commercial office or residential multi-dwelling settings, durable Grade 1 locks plus choice of ID credential technology, attractive Architect Models can be added on to control Doors within existing enterprise systems or part of a new building's overall design.

• N90 Cylindrical
• N95 Mortise

Features:

• 5000 Users, 500 Scheduled Events & 40,000 Event Audit Trail
• Surface-Mount or Mortised-in Electronics and Battery Pack
• Lock available in Mortise and Cylindrical versions
• Real Time Clock
• Uses 4 AA Batteries – 3 to 4 year battery life, typ. using advanced Power-Saver circuit.
• Operated via access card, key fob etc.
• DL-Windows Software for programming
• USB Radio Gateway Method or Via Networx Gateways (Ethernet, 802.11 or POE)
• Manual Card Enrollment Option for Quick Installation
• Wireless programming range: up to 100 ft.
• ANSI / BHMA Grade 1 Certified, UL Listed 3 Hours
• Includes standard lever rose hardware design
• Compatible with all 300+ optional architectural trim / lever or knob designs
• Stainless steel latch, 2-3/4" Backset
• Auto-Reverse lock body tested to 6 million cycles
• Lock Body - Self cleaning long life motor
• Door closure monitor / electronic deadbolt monitor
• Key override standard or high-security
• Optional integrated Door position indicator switch

Specifications:

• Administrative DL-Windows Software for programming
• PC Radio USB Key Programming Method or Via Networx Gateways (in Ethernet, 802.11 or POE Models)
• Manual Card Enrollment Option
• Grade 1 locking hardware
• Electro-mechanical button for ANSI F20 Apartment Entry Function
• Integrated Door position switch
• Seamlessly Integrates with Networx Net Panel Wireless Access Panel for use with electric Strikes, mag locks and/or remote Keypads
