Alarm Lock NETPDKPAK26D-KIT Networx Wireless Prox Reader Keypad Kit with Control Panel Power Supply

Alarm Lock Systems Inc NETPDKPAK26D-KIT offers a robust solution for access control with its Networx Wireless Prox Reader Keypad. This comprehensive kit includes a control panel, 12V power supply, and a plug-in AC transformer, enabling you to power up to two readers with ease. Designed for efficiency, it accommodates up to 5,000 users and provides a substantial 35,000 event audit trail, ensuring you can monitor access effectively. The NETDK keypad works seamlessly with the NetpPanel, allowing entry restriction via a secure PIN code. It connects directly to the dedicated NETPANEL, releasing electric strikes or maglocks upon verification of enrolled passcodes. For enhanced functionality, locks are programmed via DL Windows software, compatible with both existing standalone and new wireless locks. This kit features an operating temperature range of 14°F to 120°F, and the included sealed lead acid backup battery ensures approximately two hours of power at full load. The weatherproof design adds durability, making it suitable for various environments. With audible low battery alerts and visible entry indicators, it ensures reliable operation whether in residential or commercial applications. Elevate your security with the Alarm Lock Systems Inc NETPDKPAK26D-KIT.

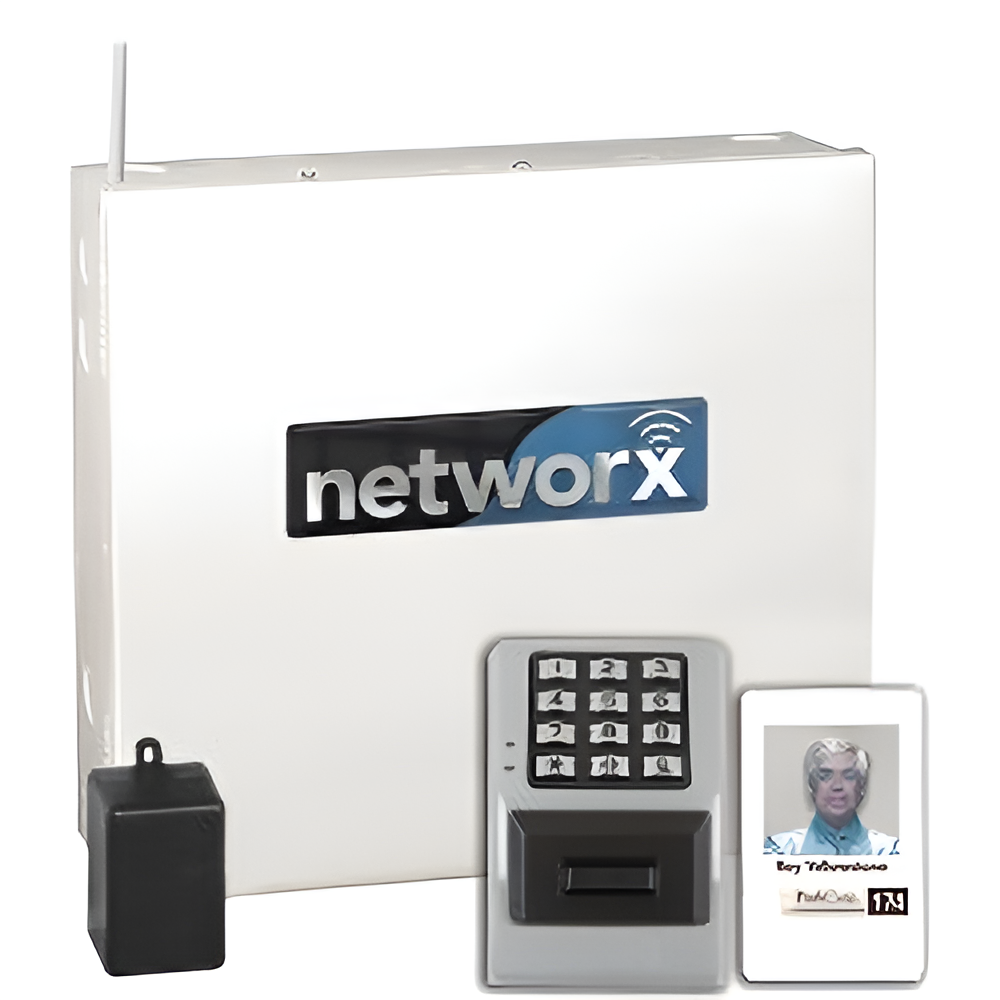

KIT - Networx Wireless Prox Reader Keypad with Control Panel, 12V Power Supply, Plug in AC Transformer, Powers up to 2 Readers, Backup Battery Included, 5,000 Users and Provide 35,000 Audit Trail, 626/US26D Satin Chrome

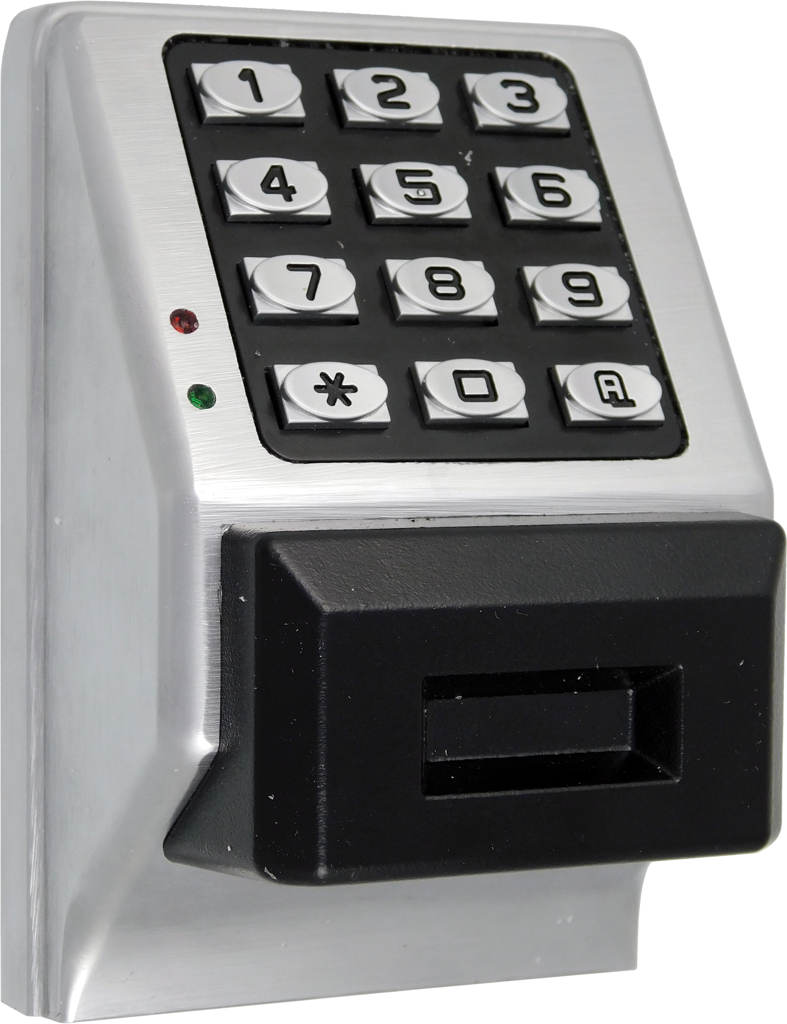

The NETDK Keypad works in conjunction with the Networx NETPANEL wireless Door control panel for restricting entry by PIN code. The NETDK wires directly to the dedicated NETPANEL, and releases an electric Strike or maglock upon authorization of an enrolled pass-code. Refer to Description of the NETPANEL for system Features and functionality as all of the access control decisions are made by the panel. Locks will be programmed via DL Windows software which can be used with both your existing standalone locks and new wireless locks.

Features:

• Networx Keypads NETDK / NETPDK
• Power Requirements: 12VDC supplied by NETPANEL
• Idle Current: 10mA
• Maximum Wire Length: 200 feet (61m)
• Recommended Wire Size: 24 AWG minimum
• Proximity Card Formats Supported: Alarm Lock standard 36 bit format or HID standard 26 bit format (for use with the Model NETPDK only)
• Operating Temperature: 14-120°F (–10-49°C)
• Input Power: 16.5VAC via Class 2 Plug-In 50VATransformer (supplied Model TRF-14)
• Maximum Lock Power Output Current: 1.5A @12VDC
• Primary and Secondary Relays: SPDT Form C, N/O, N/C 8A @ 30VAC or VDC
• Supplied Backup Battery: Sealed Lead Acid 4AH
• Battery Backup Time: Approximately 2 hours at full load
