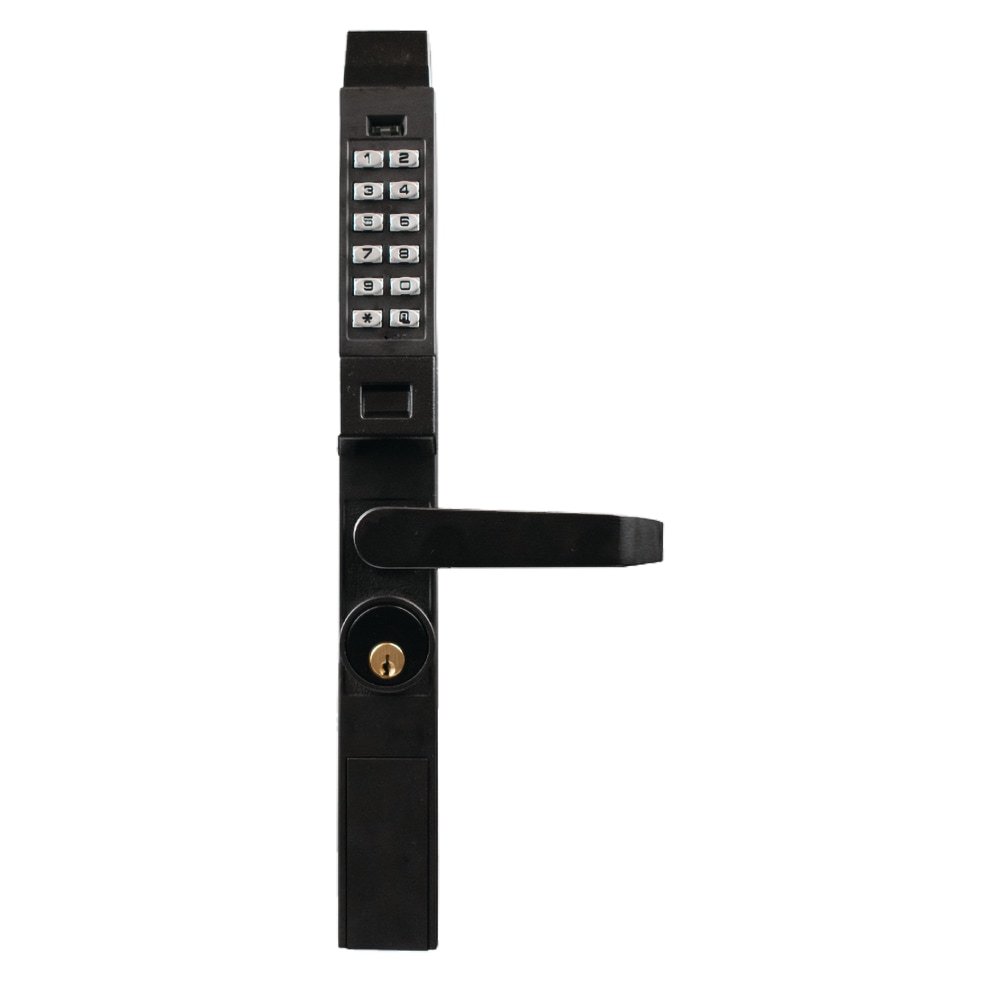

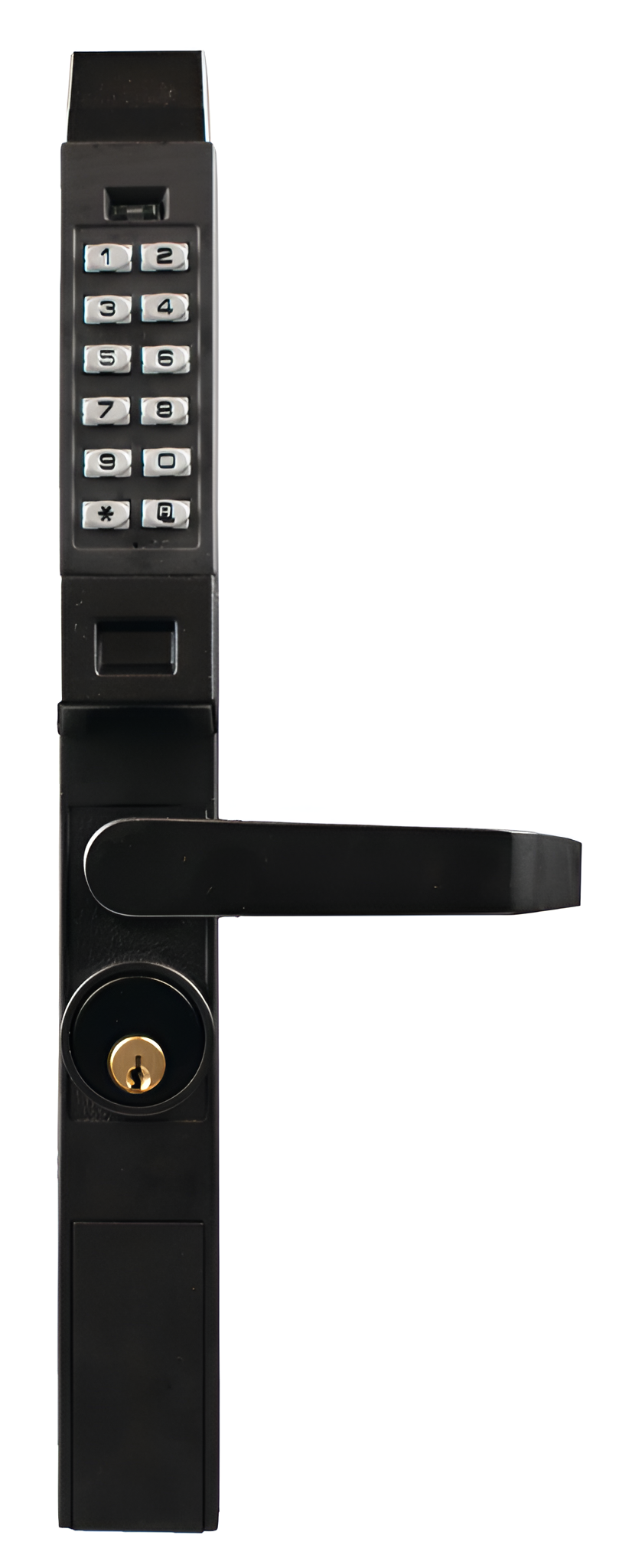

Alarm Lock PDL1300NW/19 Networx Narrow Stile Wireless Prox Lock Trim with Wiegand Reader, Matte Black

Alarm Lock Systems Inc PDL1300NW/19 Networx Narrow Stile Wireless Access Prox Lock Trim is designed to enhance security while providing keyless convenience for glass door applications. This advanced locking solution integrates a built-in Wiegand proximity ID card reader, allowing access via HID Prox ID cards or PIN codes, accommodating up to 2,000 users. The robust aluminum trim is compatible with Adams Rite® 4500, 4700, and 4900 Series deadlatches, making it an ideal retrofit option. The PDL1300NW/19 features an intuitive 12-button keypad, offering both mechanical durability and user-friendly operation. With the ability to store a 40,000 event audit trail, you can easily monitor door access and activity. The lock’s weatherproof design operates efficiently in temperatures ranging from -31°F to +151°F, ensuring reliability in various environments. Long-lasting performance is guaranteed with battery operation for up to 65,000 cycles, supported by low battery alerts. This non-handed lock trim is fully reversible and supports multiple backsets, making it versatile for various installations. Available in a sleek matte black finish, the PDL1300NW/19 combines aesthetic appeal with advanced security features, making it a perfect choice for residential and commercial properties seeking effective access management solutions.

Networx Narrow Stile Wireless Access Prox Lock Trim with Built in Wiegand Proximity ID Card Reader for use with Adams Rite 4500, 4700, 4900 Series Deadlatch, 622/US19 Matte Black

Now get convenient keyless PIN code or Prox access anywhere there’s a glass Door. Trilogy Narrow Stile lever Models (left and right) designed to work with Adams Rite® latch Series; Thumbturn Models support swing & hook bolt Products. Plus, PC-programmable 1300 Series Models provide audit trail log of Door users.

Features:

• DL1200, DL1300: Pushbutton aluminum Door trim retrofit glass Doors with latch locks:
• Add keyless convenience to mechanical latch locks from Trilogy’s all-metal, vandal-resistant 12-button Keypad and/or automatic timed-scheduled locking/unlocking and audit trail with 1300 Series.
• Aluminum Door retrofit outside trim for Adams Rite® 1850, 1950, 4710, 4070*, 4730, 4900 Series and MS1850S* and MS1950S* Series latch locks.
• DL1200 supports 100 3-5 digit PIN user codes, fingertip programmable.
• DL1300 (and Prox PDL1300, right) support 2000 users, PC programming/reporting and Features 40,000 event audit trail by user and 500 event schedule/real time clock (e.g. lock/unlock by time).
• Weatherproof -31° to +151°F (-35° to +66°C).
• Long-life, battery-operated for 100,000 and 80,000 cycles respectively, typical on 2 lithium 3V batteries, supplied; low battery alert.
• Compact styling 14-3/8" H x 1-5/8" D x 1-3/4" W.
• Key override mortise cylinder, 1-1/4" supplied. (Supports 1-1/8", 1-1/4" and 1-3/8"). Also Interchangeable Cores supported (Corbin/Russwin, Yale, Schlage, Medeco.)
• Backsets 31/32",1-1/8" and 1-1/2" Stile Thickness 1-3/4".
• Non-handed; fully field-reversible.
• Two Finishes US26D satin & 10B Duranodic.
• PDL1300: Narrow stile Prox ID card PC-programmable Model with audit trail:
• Includes all of the 1300 Series Features, at left:
• Built-in HID Prox reader, supports up to 2000 users with HID Prox ID cards or/fobs or 3-6 digit PIN codes.
• Easy Tap & Add batch Prox ID card enrollment mode allows many cards to be quickly added without PC –also– downloadable from PC or Prox enroller tool.
• 40,000 event time-/date- stamped audit trail by user.
• 500 event schedule/real time clock (e.g. lock/unlock by time).
• Long-life, battery-operated for 65,000 cycles, typical on 2 lithium 3V batteries, supplied; low battery alert.

Specifications:

• Door Thickness: Supports Stile 1-3/4" only.
• Backset: Supports 3-1/32", 1-1/8", & 1-1/2".
• Handing: Non-Handed.
• Power: Uses 2 DL123A lithium batteries.
• Keypad: All metal, 12 Button.
• Cylinders: Supplied with 6-Pin standard mortise cylinder in SC1 keyway. 1-3/8" or 1-1/2" cylinders supported.
• Cams:
• Cam supplied works with generic Alarm Lock cylinder.
• Other standard cams available for Corbin-Russwin, Marks, Arrows, Sargent and Schlage.
• IC type cams for Best, Corbin-Russwin, Medeco, Schlage and Yale are also available.
• ProductSDL1200ET, DL1300ET & PDL1300ET Series: Aluminum Door retrofit outside trim. Works with Marks, Arrow, DCI, Von Duprin, Corbin, Dor-o-Matic, Dorma & Jackson.
• DL1200ET: has 100 user codes, master, Manager, basic user and 3 "one-time" user codes.
• DL1300ET & PDL1300ET: have 2,000 user codes, multiple "one-time" user codes. 500 event schedule, real time clock & 40,000 event audit trail.
• PDL1300ET: also has proximity capabilities.

Finishes:

• 626/US26D- Satin Chrome Plated
• 640/US10B -Dark Oxidized Satin Bronze, Oil Rubbed
