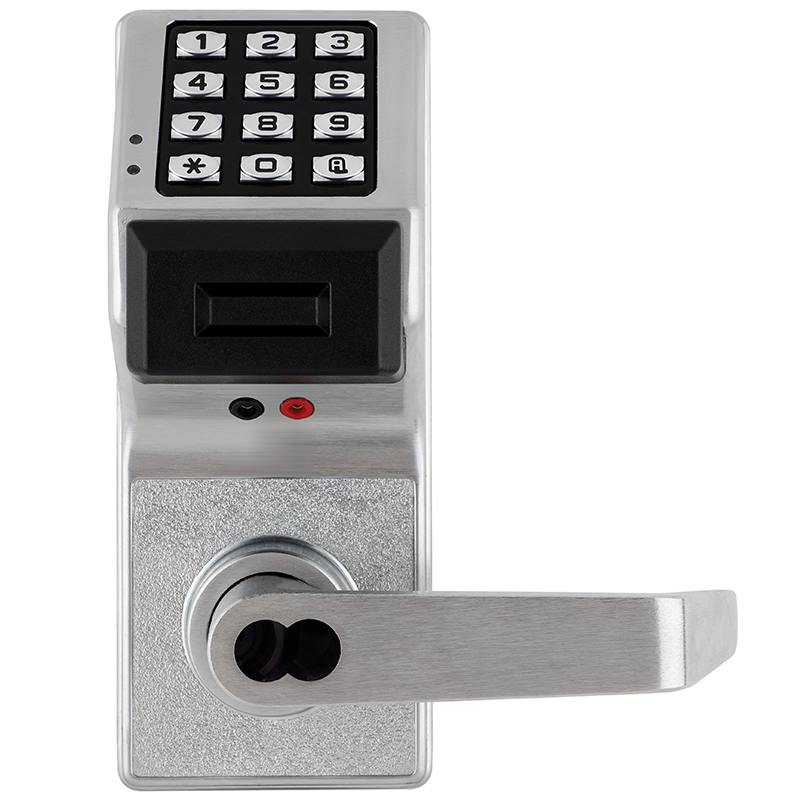

Alarm Lock PDL3000IC-R US26D Trilogy T3 Cylindrical Lock

Alarm Lock PDL3000IC-R US26D Trilogy T3 Cylindrical Lock offers a robust pushbutton entry solution with a built-in proximity reader, designed to enhance security in commercial spaces. This high-security lock accommodates up to 2,000 users, allowing for individual codes ranging from 3 to 6 digits or the use of HID prox cards and keyfobs. It features multilevel security levels, including master, manager, supervisor, and basic user access, ensuring tailored entry permissions. Equipped with a weatherproof design, the PDL3000 operates in extreme temperatures from -31°F to +151°F, making it ideal for both indoor and outdoor applications. Battery-operated with a lifespan of 60,000 cycles, this lock minimizes maintenance and downtime compared to traditional hardwired systems. The PDL3000 also boasts a 40,000 event audit trail and supports 150 scheduled events, providing comprehensive access control and monitoring capabilities. Easy installation within an hour means you can save both time and costs. Additional features include a quick passage mode and a convenient Tap & Add batch ID card enrollment for swift user setup. With its Grade 1 BHMA Certified durability, satin chrome finish, and non-handed design, the Alarm Lock PDL3000IC-R combines functionality and style for any commercial setting.

Trilogy T3 Cylindrical Lock

Pushbutton Cylindrical Door Lock, with Prox Reader, 2000 Users, 40000 Event Audit Trail, Straight Lever, Sargent LFIC Prep, Less Core, Satin Chrome Finish, Non-Handed

PDL3000 PIN/Prox Cylindrical High Security Locks 2000 user codes (3-6 digits) and/or accepts HID prox cards and keyfobs Multilevel security - Master; manager; supervisor; basic users Easy Tap & Add batch ID card enrollment mode allows many cards to be quickly added without PC -also- downloadable from PC or enroller tool 40,000 event audit trail log 150 scheduled events PC programming/reporting Quick passage mode (without being in program mode) Weatherproof -31deg to +151degF (-35deg to +66degC) 5AA Battery operated; 60,000 cycles, typ.

Trilogy HID® Reader/Enroller Prox Lock with audit trail.

The PDL3000 uses the same ID cards as hardwired access systems and installs in an hour.

• Save all the downtime and 1/2 the cost of hardwired systems
• Provide access for up to 2000 users, with prox ID-cards or 3 to 6 digit codes including:
• Master, manager, supervisor and basic user. Users are individually programmed to use a card only, code only, or, for the highest security, both card and code.
• Built-in HID Prox reader for entry with HID125KZ prox ID cards and keyfob credentials
• Grade 1 BHMA Certified durability and rugged clutch mechanism ensure long dependable life
• Weatherproof performance for indoor and outdoor applications, wide operating temperature range of -31°F to +151°F (-35°C to +66°C)
• Electronic master key system with access customized to each user’s hours - Give each user access to common areas and/or their individual area(s) and do so defined by the actual times they are permitted entry there.
• Tap and Add batch ID card enrollment mode at lock or download from a PC
• 40,000 event audit trail; 500 scheduled events
• PC programming/reporting
