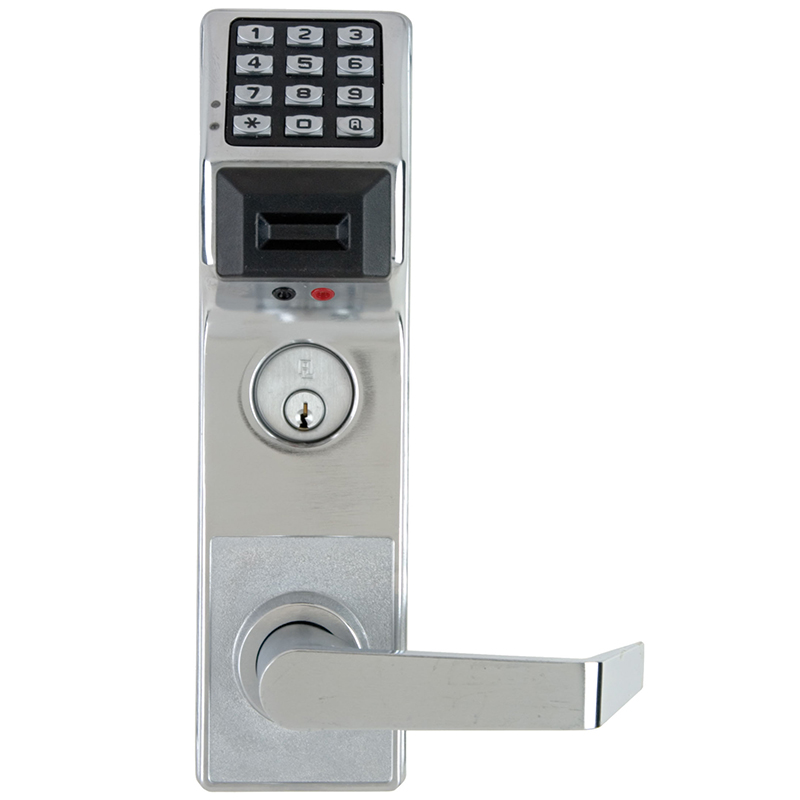

Alarm Lock PDL3500CRR US26D Trilogy T3 Mortise Lock

Alarm Lock PDL3500CRR US26D Trilogy T3 Mortise Lock offers a robust solution for secure access control in commercial environments. This pushbutton classroom mortise lock features a built-in HID prox reader, accommodating up to 300 users with master, manager, supervisor, and basic user codes. The lock supports 2000 user codes (3-6 digits) and allows easy batch enrollment for prox ID cards without the need for a PC. Designed for durability, the PDL3500CRR operates in extreme temperatures ranging from -31°F to +151°F, ensuring reliable performance in various conditions. It boasts a long-lasting battery pack, providing up to 75,000 cycles, with a low-battery alert for peace of mind. The 40,000-event audit trail keeps a detailed log of all electronic activity, while the real-time clock enables up to 500 scheduled events and holiday schedules. Installation is straightforward with options for left or right handing, and the lock is field-reversible. The satin chrome finish adds an elegant touch, making it suitable for any professional setting. With a fire rating of 3 hours and Grade 1 security, the Alarm Lock PDL3500CRR is the ideal choice for those seeking a combination of convenience and high-security features.

Trilogy T3 Mortise Lock

Pushbutton Classroom Mortise Lock, with Prox Reader, 300 Users, 40,000 Event Audit Trail, Weatherproof, Straight Lever, Right Hand or Left Hand Reverse, Satin Chrome

PDL3500 Series mortise lock with built in HID prox reader, similar to DL3500 Series, but with: 2000 user codes (3-6 digits) and/or HID prox cards/fobs Multilevel security - Master; manager; supervisor; basic users Easy Tap & Add batch prox ID card enrollment mode allows many cards to be quickly added without PC -also- downloadable from PC or prox enroller tool PC programming/reporting Quick passage mode (without being in program mode) Program data transferred to lock via AL-PCI2 or AL-DTMIII 5AA battery-pak operated; 75,000 cycles, typ. 5 Architectural finishes Weatherproof -31deg to +151degF (-35deg to +66degC)

Trilogy Mortise: High security digital locks.

 Trilogy high security mortise locks with and without prox DL3500 Series Mortise Locks 300 User codes.

• 300 User codes: Master, manager, supervisor & basic users
• Fingertip or Windows PC-programmable
• Real time clock enables up to 500 scheduled events and holiday schedules
• 40,000 Event audit trail provides a printed time/date- stamped log of all electronic activity
• Long-life battery pak for 80,000 cycles, typical and low-battery alert
• Choose either classroom or deadbolt versions and left or right handing (If reverse hand is required, lock is field reversible.)
• 1 3/8” (3.5 cm) mortise cylinder supplied card enrollment mode allows many cards to be quickly added without PC –also– downloadable from PC or prox enroller tool
• 40,000 event audit trail log
• 500 scheduled events, e.g., lock or unlock
• PC programming/reporting
• Quick passage mode (without being in program mode)
• Program data transferred to lock via AL-PCI2 or AL-DTMIII
• 5AA battery-pak operated; 75,000 cycles, typical
• 3 Architectural finishes (US3 polished brass, 26D satin chrome, 10B duronodic)
• Weatherproof -31˚ to +151˚F (-35˚ to +66˚C)

Resources

• DL3500 & DL3500EX Programming Instructions
• DL3500 Door Template
• EC Declaration of Conformity for the DL3500 Series Mortise Lock
• UL Single-Point Locks or Latches - Model DL3500
• UL Single-Point Locks or Latches Certified For Canada - Model DL3500
• What's in the Box? DL3500CR
