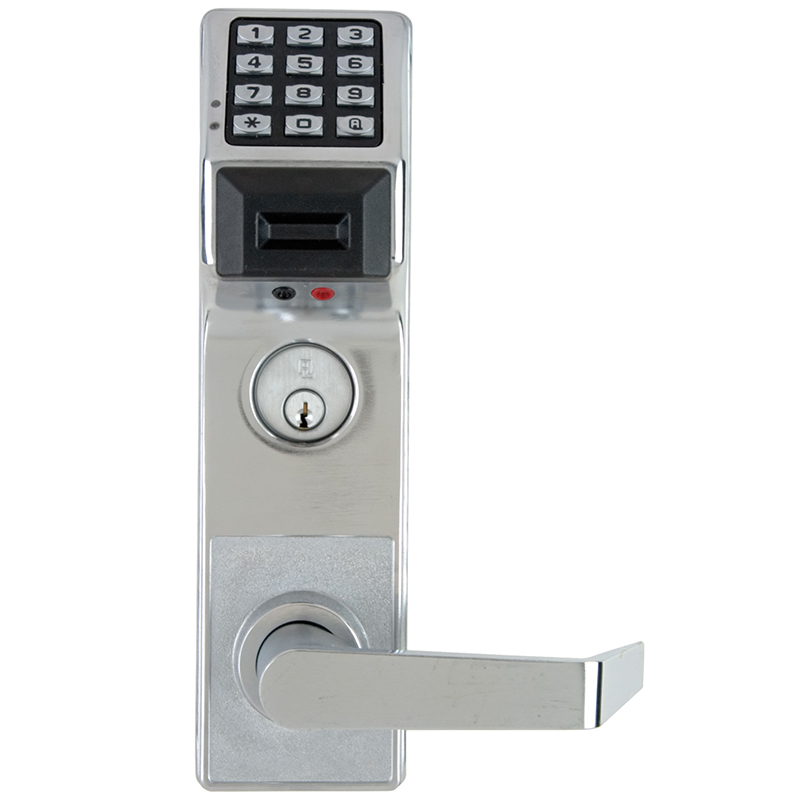

Alarm Lock PDL3500DBL US26D Trilogy T3 Mortise Lock

Alarm Lock PDL3500DBL US26D Trilogy T3 Mortise Lock offers a robust solution for securing your premises with its advanced pushbutton design and integrated deadbolt. Equipped with a built-in HID proximity reader, this lock accommodates up to 300 users through a combination of user codes and HID prox cards or fobs, ensuring flexible access control tailored to your needs. The PDL3500 series features an impressive 40,000-event audit trail, providing a detailed log of all electronic activity, which is essential for monitoring access and enhancing security protocols. With multilevel security options, including master, manager, supervisor, and basic user levels, it allows for customized access rights. Designed for durability, this weatherproof lock operates effectively in extreme temperatures, from -31°F to +151°F (-35°C to +66°C), making it suitable for various environments. Installation is straightforward, compatible with door thicknesses from 1-3/8" to 1-7/8". The lock is powered by a long-lasting battery pack, ensuring up to 75,000 cycles of reliable operation. Offered in a sleek satin chrome finish, the Alarm Lock PDL3500DBL provides a combination of security, ease of use, and aesthetic appeal, making it an ideal choice for commercial applications.

Trilogy T3 Mortise Lock

Pushbutton Mortise Lock with Deadbolt, with Prox Reader, 300 Users, 40,000 Event Audit Trail, Weatherproof, Straight Lever, Left Hand or Right Hand Reverse, Satin Chrome

PDL3500 Series mortise lock with built in HID prox reader, similar to DL3500 Series, but with: 2000 user codes (3-6 digits) and/or HID prox cards/fobs Multilevel security - Master; manager; supervisor; basic users Easy Tap & Add batch prox ID card enrollment mode allows many cards to be quickly added without PC -also- downloadable from PC or prox enroller tool PC programming/reporting Quick passage mode (without being in program mode) Program data transferred to lock via AL-PCI2 or AL-DTMIII 5AA battery-pak operated; 75,000 cycles, typ. 5 Architectural finishes Weatherproof -31deg to +151degF (-35deg to +66degC)

Trilogy Mortise: High security digital locks.

 Trilogy high security mortise locks with and without prox DL3500 Series Mortise Locks 300 User codes.

• 300 User codes: Master, manager, supervisor & basic users
• Fingertip or Windows PC-programmable
• Real time clock enables up to 500 scheduled events and holiday schedules
• 40,000 Event audit trail provides a printed time/date- stamped log of all electronic activity
• Long-life battery pak for 80,000 cycles, typical and low-battery alert
• Choose either classroom or deadbolt versions and left or right handing (If reverse hand is required, lock is field reversible.)
• 1 3/8” (3.5 cm) mortise cylinder supplied card enrollment mode allows many cards to be quickly added without PC –also– downloadable from PC or prox enroller tool
• 40,000 event audit trail log
• 500 scheduled events, e.g., lock or unlock
• PC programming/reporting
• Quick passage mode (without being in program mode)
• Program data transferred to lock via AL-PCI2 or AL-DTMIII
• 5AA battery-pak operated; 75,000 cycles, typical
• 3 Architectural finishes (US3 polished brass, 26D satin chrome, 10B duronodic)
• Weatherproof -31˚ to +151˚F (-35˚ to +66˚C)

Resources

• DL3500 & DL3500EX Programming Instructions
• DL3500 Door Template
• EC Declaration of Conformity for the DL3500 Series Mortise Lock
• UL Single-Point Locks or Latches - Model DL3500
• UL Single-Point Locks or Latches Certified For Canada - Model DL3500
• What's in the Box? DL3500CR
