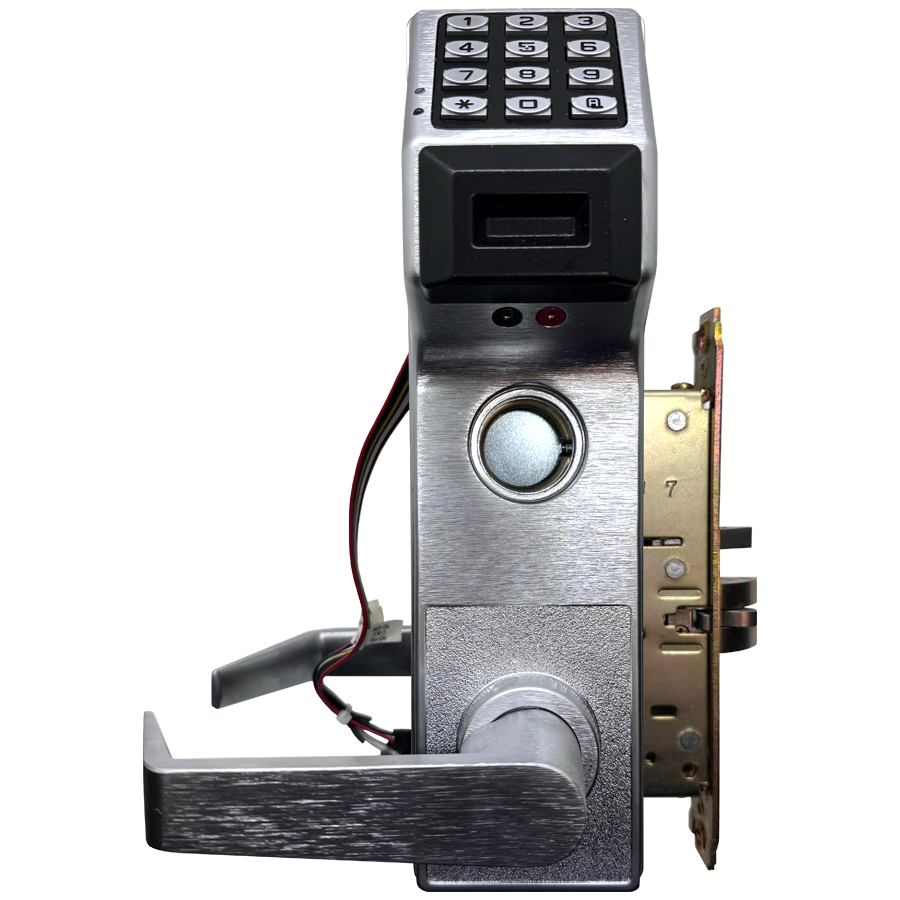

Alarm Lock PDL3500DBR/26D Mortise Trilogy T3 Prox Reader Keypad Lock, Right Hand, Satin Chrome

Alarm Lock Systems Inc PDL3500DBR/26D Mortise Trilogy T3 Prox Reader Keypad Standalone Lock combines advanced security features with user-friendly convenience. Designed for right-handed installation, this lock is field reversible, offering flexibility for various door applications. It accommodates up to 2,000 users with customizable 3 to 6-digit codes and supports HID prox cards and fobs, making it ideal for high-traffic areas. The PDL3500DBR/26D features a durable, weatherproof design that operates effectively in temperatures ranging from -31°F to +151°F. The long-life 5AA battery pack ensures up to 75,000 cycles, along with a low-battery alert, ensuring reliable performance. With a 40,000 event audit trail, you can easily monitor access history, while the real-time clock allows for scheduling up to 500 events, including holiday schedules. The lock's vandal-proof all-metal keypad is fingertip programmable, accessible via a PC for enhanced management. Additional features include an easy Tap & Add enrollment mode for quick card integration and a quick passage mode for effortless entry. With its satin chrome finish, this lock not only enhances security but also adds a sleek aesthetic to any entryway. Elevate your access control with the Alarm Lock PDL3500DBR/26D.

Mortise Trilogy T3 Prox Reader Keypad Standalone Lock, Right Hand (Field Reversible), Deadlatch and Deadbolt, Weather Proof, 1-3/8in Mortise Cylinder, Schlage C Keyway, 2000 Users, 40,000 Event Audit Trail and 500 Scheduled Events, 626/US26D Satin Chrome

Trilogy high security mortise locks and keyless gate locks with and without prox. Series supports 100 to 2000 pin and or prox codes, including multi-level user codes and one-time service codes. All are fingertip programmable at Vandalproof all-metal Keypad.

DL3500 Series:

• 300 User codes: Master, manager, supervisor & basic users for keyless gate locks
• Fingertip or Windows PC-programmable
• Real time clock enables up to 500 scheduled events and holiday schedules
• 40,000 Event audit trail provides a printed time/date- stamped log of all electronic activity
• Long-life battery pack for 80,000 cycles, typ. and low-battery alert
• Choose either classroom or deadbolt versions and left or right Handing (If reverse hand is required, lock is field reversible.)
• 1-3/8" (3.5 cm) mortise cylinder supplied card enrollment mode allows many cards to be quickly added without PC also downloadable from PC or prox enroller tool
• 40,000 event audit trail log
• 500 scheduled events, e.g., lock or unlock
• PC programming/reporting
• Quick passage mode (without being in program mode)
• Program data transferred to lock via AL-PCI2 or AL-DTMIII
• 5AA battery-pack operated; 75,000 cycles, typ.
• 5 Architectural Finishes
• Weatherproof -31° to +151°F (-35° to +66°C)

PDL3500 Series:

• PDL3500 Series mortise lock with built in HID prox reader, similar to DL3500 Series, but with:
• 2000 user codes (3-6 digits) and/or HID prox cards/fobs
• Multilevel security - Master; manager; supervisor; basic users
• Easy Tap & Add batch prox ID card enrollment mode allows many cards to be quickly added without PC also downloadable from PC or prox enroller tool
• PC programming/reporting
• Quick passage mode (without being in program mode)
• Program data transferred to lock via AL-PCI2 or AL-DTMIII
• 5AA battery-pack operated; 75,000 cycles, typ.
• 5 Architectural Finishes
• Weatherproof -31° to +151°F (-35° to +66°C)

Features

• Weatherproof -31° to +151°F (-35° to +66°C)
• 40,000 event audit trail log
• 1-3/8" (3.5 cm) mortise cylinder supplied card enrollment mode allows many cards to be quickly added without PC also downloadable from PC or prox enroller tool
• Real time clock enables up to 500 scheduled events and holiday schedules
• 300 User codes: Master, manager, supervisor & basic users for keyless gate locks
• Long-life battery pack for 80,000 cycles, typ. and low-battery alert
• Choose either classroom or deadbolt versions and left or right Handing (If reverse hand is required, lock is field reversible.)
• PC programming/reporting
• 5AA battery-pack operated; 75,000 cycles, typ.
• Fingertip or Windows PC-programmable
• 5 Architectural Finishes
• Quick passage mode (without being in program mode)
• Program data transferred to lock via AL-PCI2 or AL-DTMIII
• 40,000 Event audit trail provides a printed time/date- stamped log of all electronic activity
• 500 scheduled events, e.g., lock or unlock
