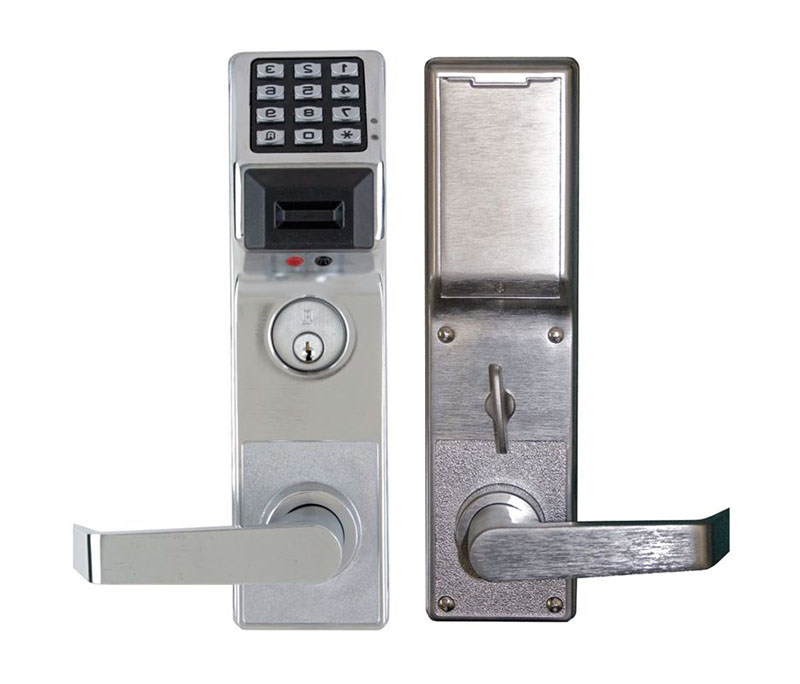

Alarm Lock PDL4500DBL US26D Trilogy T3 Mortise Lock

Alarm Lock PDL4500DBL US26D Trilogy T3 Mortise Lock offers a robust solution for access control with its advanced pushbutton design and integrated deadbolt. This weatherproof lock includes a proximity reader, accommodating up to 2000 users and maintaining a comprehensive 40,000 event audit trail, making it ideal for high-security environments. Designed for versatility, the PDL4500 features both keypad and PC programming options, allowing for seamless user management. With the ability to execute 500 scheduled events and a privacy pushbutton for temporary lock-out, it ensures that sensitive areas, such as restrooms and classrooms, remain secure. The lock is compatible with right-handed or left-handed installations, enhancing its adaptability for various door configurations. Finished in a sleek satin chrome, this mortise lock is not only aesthetically pleasing but also built for durability, rated for 60,000 cycles. It operates on a 5AA battery pack and includes self-stick bilingual instructional signage for easy setup. The PDL4500 is UL Listed and fire-rated for up to 3 hours, ensuring compliance with safety standards. Ideal for commercial applications, the Alarm Lock PDL4500DBL integrates security and convenience, making it an essential choice for any building professional looking to enhance access control systems.

Trilogy T3 Mortise Lock

Pushbutton Mortise Lock with Deadbolt, with Prox Reader, 2000 Users, 40000 Event Audit Trail, Weatherproof, Straight Lever, Satin Chrome Finish, Left-Handed or Right-Hand Reverse

PDL4500 Similar to the DL3200 electronic door lock features plus: 2000 PIN or PIN/Prox user codes; 500 scheduled events; 40,000 audit trail Privacy Pushbutton - Push button on inside door to temporarily lock-out keypad codes (programmable option) Occupied and multi-status LED indicator, flashes when privacy session is active Self-stick instructional signage, supplied (bilingual) Keypad or PC programming/reporting Right- or left-hand, classroom or deadbolt function models 1-3/8" mortise cylinder & ASA strike, matching function, supplied. 5AA battery-pak operated; 60,000 cycles, typ. 5 Architectural finishes (US3 polished brass, 26 polished chrome, 26D satin chrome, 5 antique brass, 10B duronodic) Weatherproof -31deg to +151degF (-35deg to +66degC)

Trilogy Privacy/Lock Down Pushbutton – for restrooms, on-call rooms, file rooms, fitting rooms, classrooms.

Pushbutton Mortise Lock with Deadbolt and Prox Reader. Can have up to 2000 Users and 40,000 Event Audit Trail.

• PDL4500 Similar to the DL3200 electronic door lock features
• Self-stick instructional signage, supplied (bilingual) Keypad or PC programming/reporting
• Right- or left-hand
• Classroom or deadbolt function models 1-3/8” mortise cylinder & ASA strike, matching function, supplied
• 5AA battery-pak operated
• 60,000 cycles
