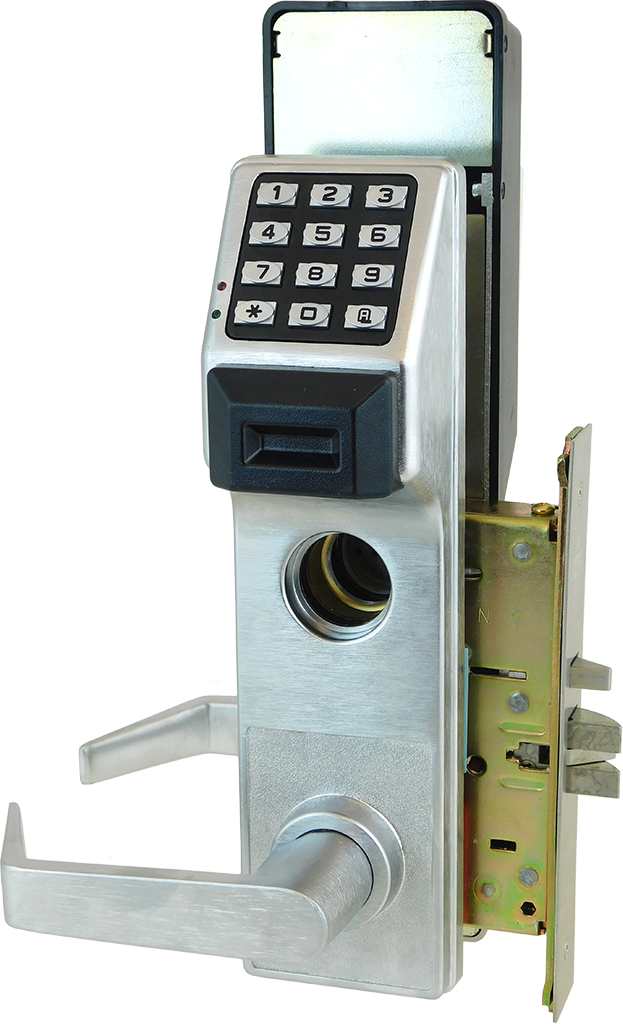

Alarm Lock PDL6600CRL/26D Networx Prox Reader Keypad Mortise Lock LH, Schlage C, 5000 Users, Satin Chrome

Alarm Lock Systems Inc PDL6600CRL/26D Networx Prox Reader Keypad Mortise Lock LH offers a sophisticated solution for modern access control needs. This left-handed, field-reversible lock combines the trusted functionality of the original Trilogy standalone locks with advanced wireless communication capabilities via Ethernet or 802.11B/G. With the capacity to manage up to 5,000 users, it supports 3-6 digit PIN codes and HID proximity cards, making it ideal for high-traffic areas. The lock features a durable stainless steel latchbolt with a 3/4" projection and deadlocking capabilities, ensuring robust security. A comprehensive 35,000 event audit trail is available for review, while 500 scheduled automatic lock/unlock events provide operational flexibility. Designed for easy installation, it requires no hardwiring or access panels, and is compatible with doors ranging from 1-3/8" to 1-7/8" thick. The PDL6600CRL/26D is not only weatherproof, operating in temperatures from -31°F to +151°F, but also includes visual and audible entry indicators. With UL certification and ADA-compliant levers, this lock is a reliable choice for both residential and commercial applications, ensuring long-lasting performance with Grade 1 durability.

Networx Prox Reader Keypad Mortise Lock LH (Left Hand, Field Reversible), Schlage C Keyway, 5000 Users, 35,000 Audit Trail, Supports 802.11 or Ethernet, No Hardwiring, 626/US26D Satin Chrome

The Trilogy PDL6600CRL Series Networx Locks eliminate door-to-door programming and audit trail retrieval by communicating wirelessly via Ethernet or 802.11B/G, while providing all original Trilogy standalone lock's functionality. It provide a quick, easy and economical access system with advanced features and functions like various automatic schedules, event logs and support for up to 5000 users with 3-6 digit numeric PIN codes and Prox ID card users. However, this lock has no wires to run and no access panels or power supplies to buy or install.

Features:

• PDL6600- Request to exit (REX); When used on Networx; sound at door, will record on audit trail. Must pull audit log to view
• Left hand straight lever classroom function Mortise Prox/Pin Lock
• 1-1/4" x 4-7/8" strike included as always
• 1-3/8" (3.5cm) mortise cylinder supplied
• Classroom function feature stainless steel latchbolt with 3/4" (1.91cm) projection and deadlocking latch
• Product comes with 2-3/4" backset as standard
• Rugged clutch mechanism and Grade 1 durability ensure long life
• 4 C-cell batteries included as always
• Alarm Lock can have up to 5000 different user codes (3-6 digits) and HID Proximity cards
• Standard ANSI A115 Mortise prep that is modified by adding additional through-bolt holes
• 35,000 event audit log
• Weatherproof -31 degree to +151 degree F (-35 degree to +66 degree C)
• Visual and audible entry indicators on front of lock
• UL listed hardware
• Cylinder: Classroom function supplied with straight cam
• ADA compliant levers
• 500 scheduled automatic lock/unlock events
• It easily fits into the door with thickness from 1-3/8" to 1-7/8" (4.46cm) wide dimensions
