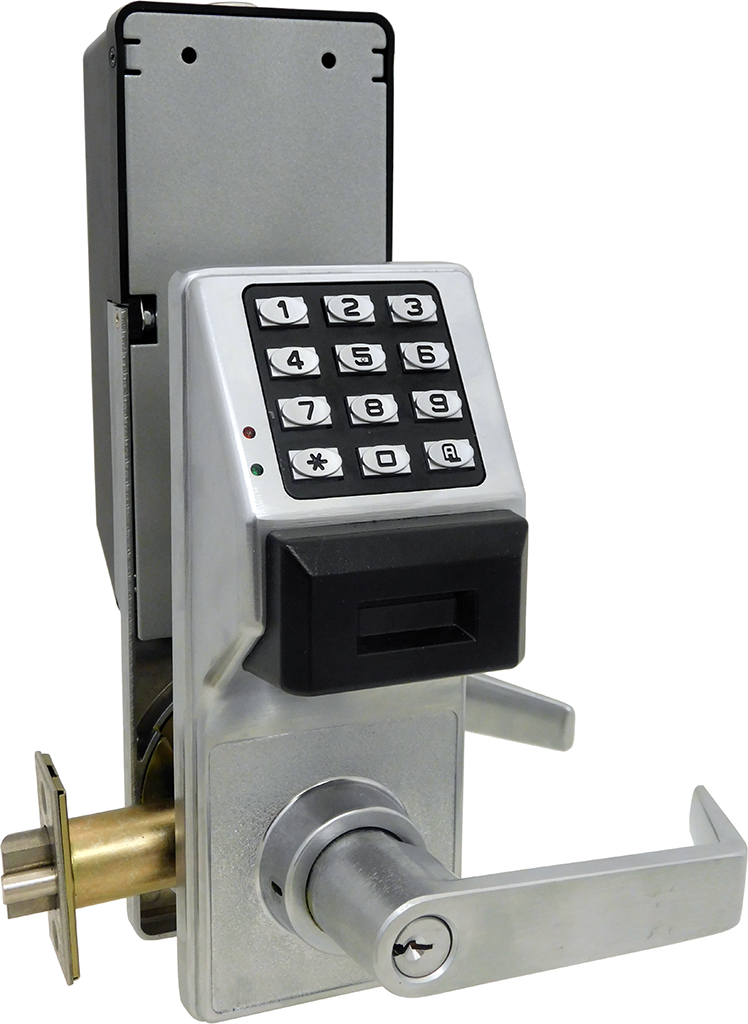

Alarm Lock PDLN4100/26D Networx Privacy Wireless Access Control Prox Reader/Keypad Lock, Schlage C

Alarm Lock Systems Inc PDLN4100/26D Networx Privacy Wireless Access Control Cylindrical Prox Reader/Keypad Lock combines advanced security features with unparalleled convenience. Designed for both commercial and residential applications, this electronic lock accommodates up to 5,000 users, making it ideal for high-traffic areas. Its robust audit trail capability tracks up to 40,000 events, ensuring you have detailed access logs for monitoring purposes. Equipped with a keyless entry system, the PDLN4100 supports both keypad and proximity card access, reading most HID card and key fob formats. The privacy pushbutton feature allows users to temporarily lock out keypad access, providing an added layer of security when needed. With weatherproof construction, this lock operates effectively in extreme temperatures, from -31°F to +151°F, ensuring reliable performance in any environment. The installation process is straightforward, with a mortise cylinder and ASA strike included. The lock fits doors with a thickness of 1-5/8" to 1-7/8" and features a non-handed design for versatile application. Powered by 5 AA batteries, the PDLN4100 boasts a typical lifespan of 60,000 cycles. Available in a sleek satin chrome finish, this lock not only enhances security but also complements modern architectural designs.

Networx Privacy Wireless Access Control Cylindrical Prox Reader/Keypad Lock, Schlage C, 5000 Users, 35,000 Audit Trail, Supports 802.11 or Ethernet, No Hardwiring, 626/US26D Satin Chrome

PDL4100 Series Electronic battery operated digital proximity lock. Holds up to 2000 codes, Master, Management, Supervisor & basic user. Multiple "one-time" user codes. 500 event schedule, real time clock & 40,000 event audit trail. Will read most HID card and keyfob formats. Privacy feature will lock out all users for a programmed amount of time. Residency feature-allows exiting without having to lock the Door.

Features:

• 2000 PIN or PIN/Prox user codes; 500 scheduled events; 40,000 audit trail.

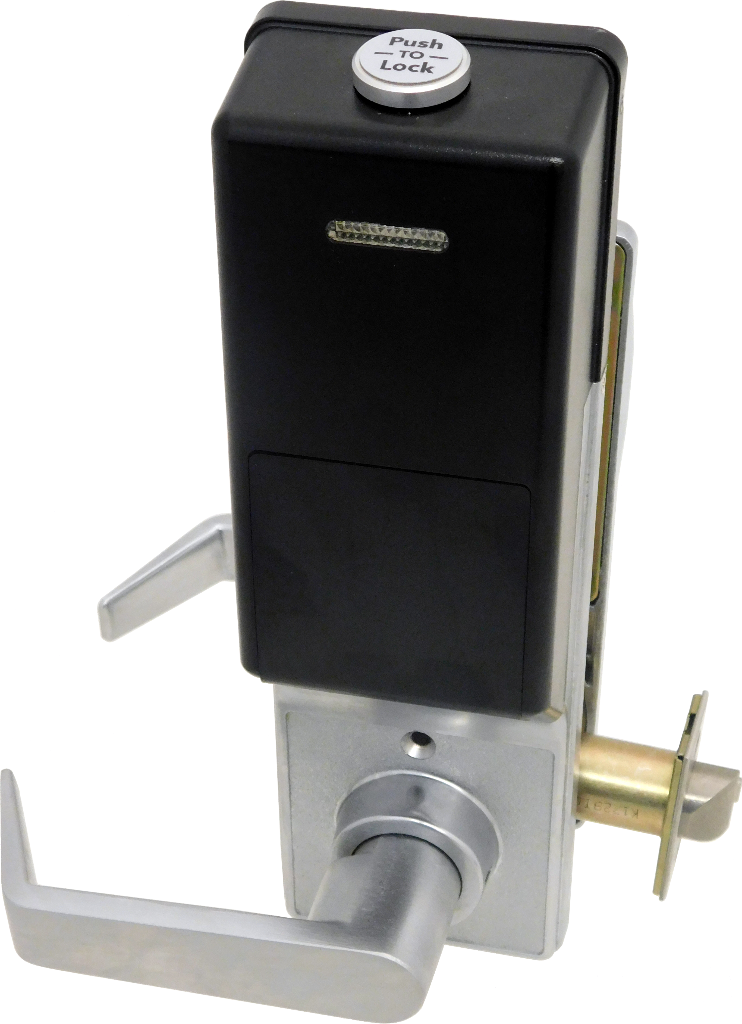

• Privacy Pushbutton – Push button on inside Door to temporarily lock-out Keypad codes (programmable option).
• Occupied and multi-status LED indicator, flashes when privacy session is active.
• Self-stick instructional signage, supplied (bilingual).
• Keypad or PC programming/reporting.
• Right- or left-hand, classroom or deadbolt function Models.
• 1-3/8" mortise cylinder & ASA Strike, matching function, supplied.
• 5AA battery-pack operated; 60,000 cycles, typ.
• 5 Architectural Finishes (US3 polished brass, 26 polished chrome, 26D satin chrome, 5 antique brass, 10B duranodic).
• Weatherproof -31° to +151°F (-35° to +66°C).

Specifications:

• Door Thickness: Fits 1-5/8" to 1-7/8". Other Thickness, refer to chart below.
• Backset: 2-3/4" (2-3/8" also available. Must specify when ordering.)
• Strike: 1-1/8" x 2-3/4" T Strike & 1-1/4" x 4-7/8" ASA Strike included.
• Latch Bolt: UL Listed, Fire rated 3 hours, 1/2" throw, reversible.
• Handing: Non-Handed.
• Power: 5 AA alkaline batteries (included.)
• Keypad: All metal, 12 Button. All functions programmed through Keypad.
• Door Prep.: Standard ANSI A115 Series Prep, modified by adding additional through-bolt holes.
• Compliances:
• BHMA Certified Grade 1 heavy duty cylindrical lockset.
• UL Listed 10C Positive Pressure Specification.
• FCC Certified.
• ADA Compliant Levers.
• Interchangeable Core Models:
• Standard Model accepts 6 & 7-Pin cylinders from Best, Falcon, Arrow, KSP, Medeco Keymark, & Kaba Peaks.
• IC Core Models Prepped for 6 & 7-Pin Yale and Corbin-Russwin.
• IC Core Models Prepped for 6-Pin Medeco, Sargent, and Schlage.

Extended Sizes:

• Standard and SFIC cylinder Preps can be extended for thicker Doors.
• W54: 2-1/8"
• W57: 2-1/4"
• W60: 2-3/8"
• W64: 2-1/2"
• W70: 2-3/4"
• W76: 3"
• W83: 3-1/4"
• W89: 3-1/2"
• Note: Locks can be adjusted by + / - 1/8" by adding or removing spacers.

Finishes:

• 626/US26D - Satin Chrome Plated
• 640/US10B - Dark Oxidized Satin Bronze, Oil Rubbed
• 632/US3 - Bright Brass Plasted, Clear Coated
• 625/26 - Polished Chrome
• 609/5 - Antique Brass
