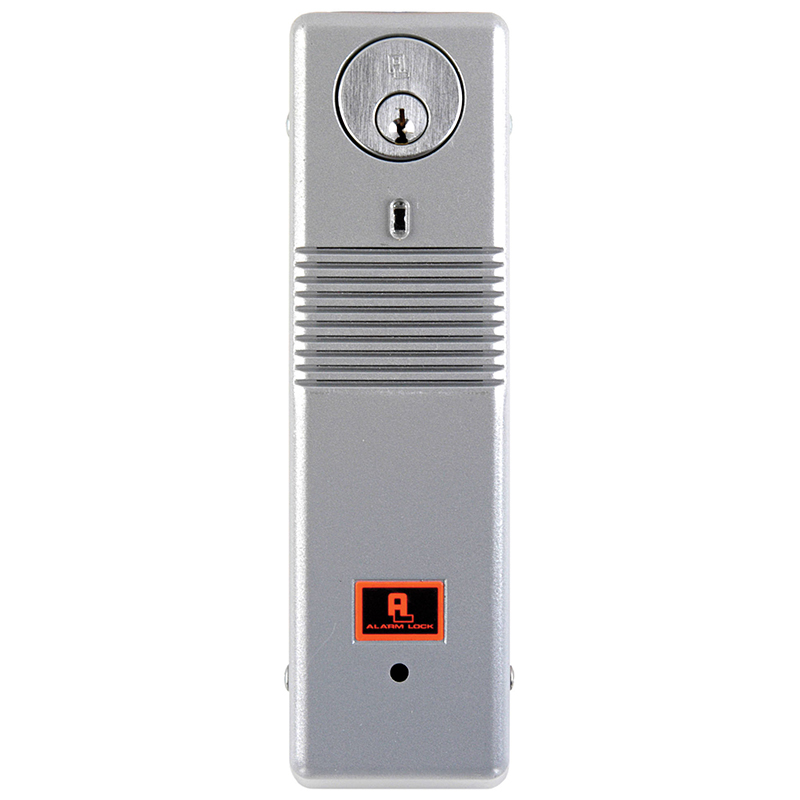

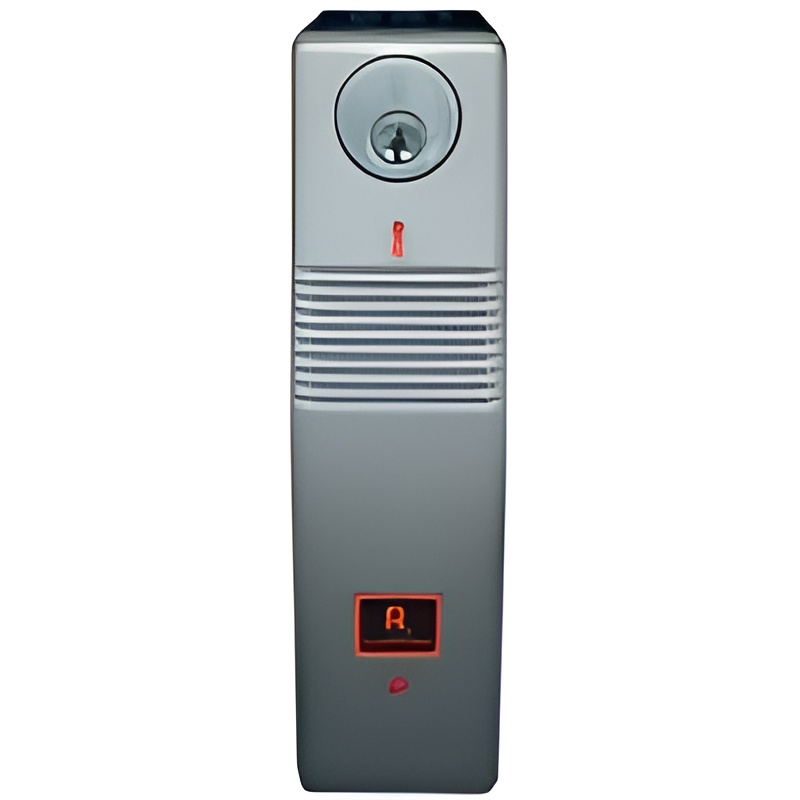

Alarm Lock PG21MB Exit Alarms

• Two selectable arming modes for security door alarms and locks -
• Always armed mode – when key is turned counter clockwise to the disarm position, the key cannot be removed. To remove key, turn back to arm mode, thus keeping unit armed always.
• Standard security door alarm arming mode – when key is inserted turning counter clockwise will disarm and key can be removed. Turning key clockwise will arm and key can be removed.
• Max-Flex Terminals, allowing for any or all of the following:
• Continuous power with the addition of an external power supply
• Multiple door monitoring permitted with built-in external reed switches
• Security Door Lock and Alarm Status Indicator – The LED will indicate RED when armed.
• Entry Delay Time Options – include 15 seconds, 1 minute 15 seconds & 3 minutes 15 seconds
• Sleek model design key-activated door alarm for use on standard size and narrow stile doors
• Unauthorized use of door causes alarm to sound and activates LED indicator
• Options include continuous alarm, minute shutdown with auto reset and exit/entry delay
• Uses standard mortise cylinder
• Tamper switch supervised
• For exterior key control, optional RIM cylinder may be used
• Metallic silver or duronodic finish
• Optional Strobe unit (shown) – PG21MSS/PG21MBS units include a highly visible amber strobe will flash when unit goes into alarm
• Key Activated
• Two Arming Modes
• For Use on Standard and Narrow Stile Doors
• Runs on 9-Volt Alkaline Battery
• 2-Year Manufacturer Warranty

Resources

• K-12 & Campus Security LocDown™ Solutions
• K-12 & Campus Security LocDown™ Solutions
• 2019 Alarm Lock Price Book
• 2020 Alarm Lock Product Catalog
• 250/260, 700/710, 250WP/700WP/710WP Installation & Operation Instructions
• Alarm Lock Product Catalog
• Cut Sheet
• Cut Sheet
