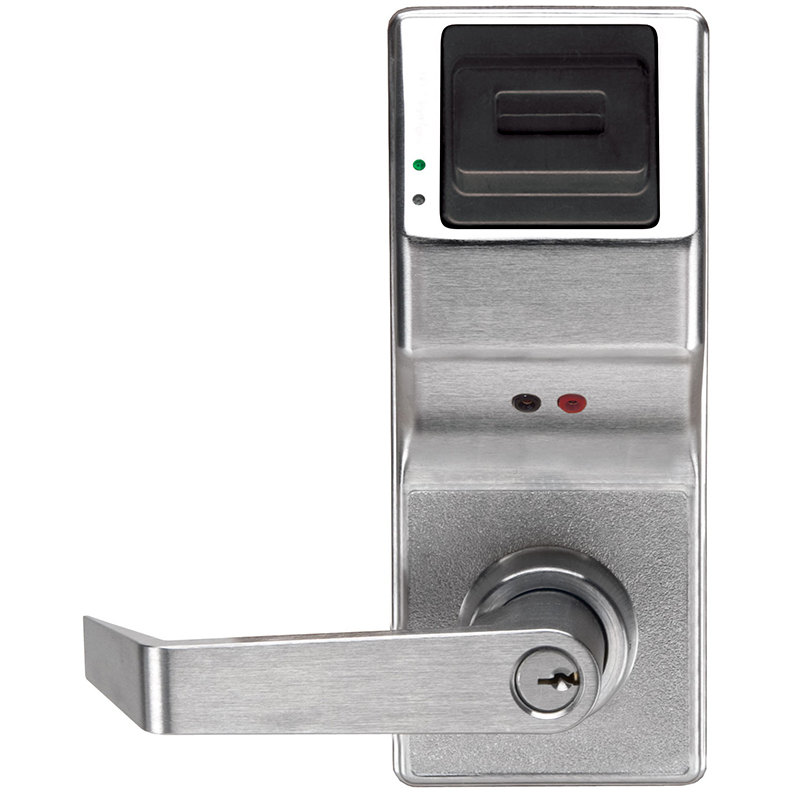

Alarm Lock PL3000 US26D Trilogy Cylindrical Lock

Alarm Lock PL3000 US26D Trilogy Cylindrical Lock delivers exceptional security and convenience for commercial applications. This prox reader cylindrical door lock is designed to accommodate up to 300 users, making it ideal for high-traffic areas. Its straight lever design in a satin chrome finish ensures both style and durability, while the keyless operation enhances its vandal-proof capabilities, making it suitable for even the harshest environments. The PL3000 allows for seamless access control, accepting HID prox cards and key fobs for quick entry. The easy Tap & Add feature simplifies the enrollment process, enabling batch addition of ID cards without the need for a PC. For further management, the lock provides a robust 40,000 event audit trail log and supports up to 500 scheduled events, all manageable via optional PC programming and reporting tools. Constructed with Grade 1 security standards and featuring a conventional cylinder type, this lock is fire-rated for three hours, ensuring safety and compliance. Designed for doors with thicknesses ranging from 1-5/8" to 1-7/8", the PL3000 is a reliable choice for those seeking a superior locking solution. With a limited two-year warranty and a battery-powered operation, this lock combines functionality with peace of mind.

Trilogy Cylindrical Lock

Prox Reader Cylindrical Door Lock, 300 Users, 1600 Event Audit Trail, Straight Lever, Satin Chrome

PL3000 Prox Cylindrical Keypad-less version of above for ultimate vandal-proofness in harshest environments Accepts HID prox cards and keyfobs for access Easy Tap & Add batch ID card enrollment mode allows many cards to be quickly added without PC -also- downloadable from PC or enroller tool 40,000 event audit trail log, 150 scheduled events PC programming/reporting

Prox-only vandal proof lock.

Trilogy prox only defeats vandals.

• Keypad-less version of above for ultimate vandal-proofness in harshest environments
• Accepts HID prox cards and keyfobs for access
• Easy Tap & Add batch ID card enrollment mode allows many cards to be quickly added without PC –also- downloadable from PC or enroller tool
• 40,000 event audit trail log, 500 scheduled events
• PC programming/reporting

Resources

• AL-DTM-III Changes for the PL3000 & PL3500
• AL-DTM-III Setup & Configuration Instructions
• EC Declaration of Conformity for the PDL3000 & PL3000 Proximity Door Lock
• PL3000 Programming Instructions
• PL3000 Spec Sheet
