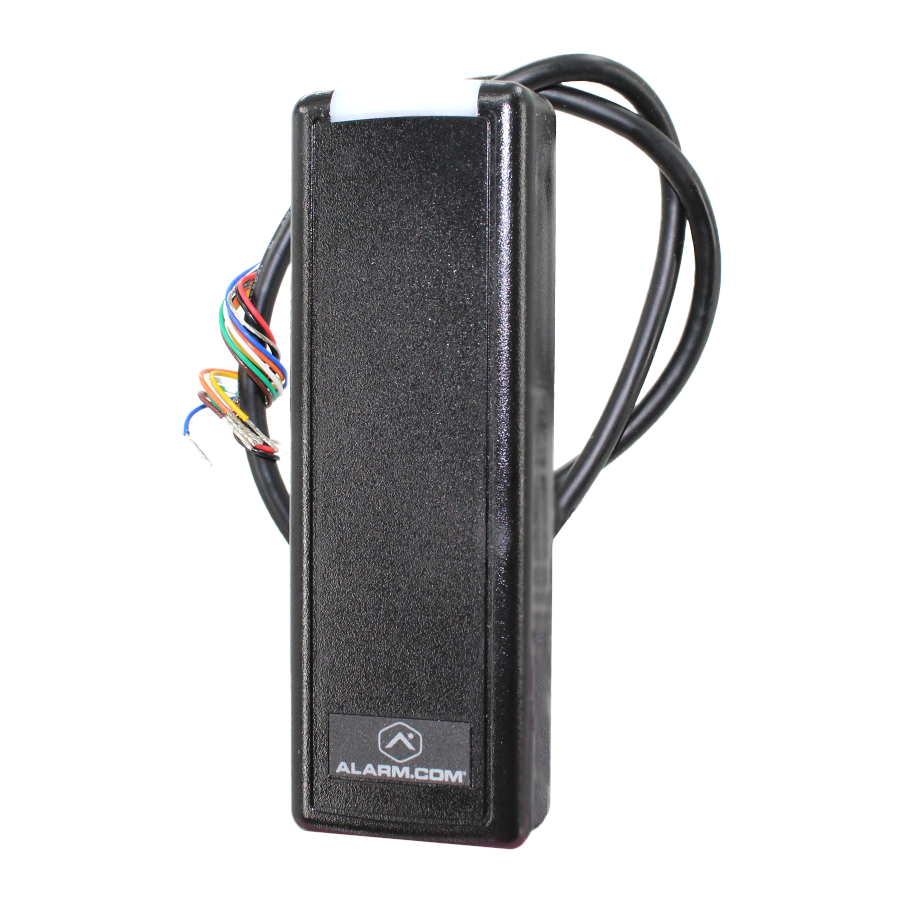

Alarm.com ADC-AC-ET10 Mullion Reader with HF + Prox + Mobile

ALARM.COM ADC-AC-ET10 Mullion Reader with HF + Prox + Mobile combines advanced technology with user-friendly features, making it an ideal solution for commercial properties. This contactless access control reader integrates seamlessly with the Alarm.com for Business platform, providing intelligent automation functionalities such as disarming upon badging in and locking doors during arming. Equipped with multiple technology options, including Proximity (125 kHz), MIFARE DESFire (13.56 MHz), NFC, and Bluetooth®, the ADC-AC-ET10 ensures versatile access management. It supports mobile credentials, allowing users to unlock doors via their smartphones, eliminating the need for physical badges. The reader features OSDP™ compliance, ensuring secure communication and remote firmware upgrades. With an impressive temperature range of -31°F to 151°F and a robust design suitable for both indoor and outdoor environments, the ADC-AC-ET10 is built to withstand diverse conditions. Its tri-state LED light bar and audible beeper provide clear visual and audio feedback during access attempts. Installation is hassle-free with plug-and-play capabilities, enabling easy configuration through the Alarm.com app or web interface. Weighing just 7 oz and measuring 5.1 x 1.7 x 0.7 inches, this reader is compact yet powerful, making it a valuable addition to any access control system.

Mullion Reader with HF + Prox + Mobile

Smarter Access Control is a powerful, easy-to-use solution for commercial properties that seamlessly integrates with the Alarm.com for Business platform. This platform enables intelligent automation and features, such as disarming when badging in, locking doors when arming, and tagging access events on the video timeline. These three multi-technology contactless access control readers offer a modern aesthetic and a state-of-the-art feature set, including Proximity (125 kHz), MIFARE DESFire (13.56 MHz), NFC, and Bluetooth®. All readers are fully OSDP™ compliant and are enabled for OSDP Secure Channel.

Features:

• Multiple technologies in a single reader: Proximity, MIFARE DESFire, NFC & BLE
• Mobile Credentials support enables phones to unlock doors, eliminating badges
• OSDP Auto-Detect
• OSDP Secure Channel and remote firmware upgradability
• MIFARE DESFire® EV1 & EV2 support
• LEAF credential support for secure, open, interoperability
• FSK and ASK legacy proximity credentials support for seamless transitions
• Accelerometer-based tamper detection
• Tri-state LED light bar (red, green, amber) and audible beeper
• Accommodates indoor, outdoor installation environments

Benefits:

• Scan-to-add card format and serial detection
• Control doors and manage users from the Alarm.com app
• Integrated Alarm.com intrusion and video offerings
• User-friendly, flexible scheduling
• Configure hardware using web or app for easy installation
• Plug & play installation—no networking expertise required

Specifications:

• RF Technologies: 125 KHz, 13.56 MHz, NFC, Bluetooth Low Energy
• Reads: MIFARE DESFire® EV1 & EV2, LEAF, FSK and ASK proximity
• Input power: 5-16 VDC, 144 mA max (ET10), 169 mA max (ET20), 193 mA max (ET25)
• Output: OSDP, Wiegand, accelerometer based tamper detection
• Read ranges: EV1: 1.2", EV2: 2.2", 125 kHz up to 4"
• Temperature: -31°F – 151°F (-35°C – 66°C)
• Dimensions: 5.1 x 1.7 x 0.7" (13.0 x 4.3 x 1.8cm) (ET10), 5.1 x 3.3 x 0.7" (13.0 x 8.4 x 1.8cm) (ET20 & ET25)
• Operating Humidity: 5 – 95% (non-condensing) RH
• Weight: 7 oz (ET10), 10 oz (ET20), 11.3 oz (ET25)
• Certifications: FCC, IC, CE, UL 294,EN 302291, EN 301489, EN 300330,EN 50130-4, IP55, BIS IS 13252
