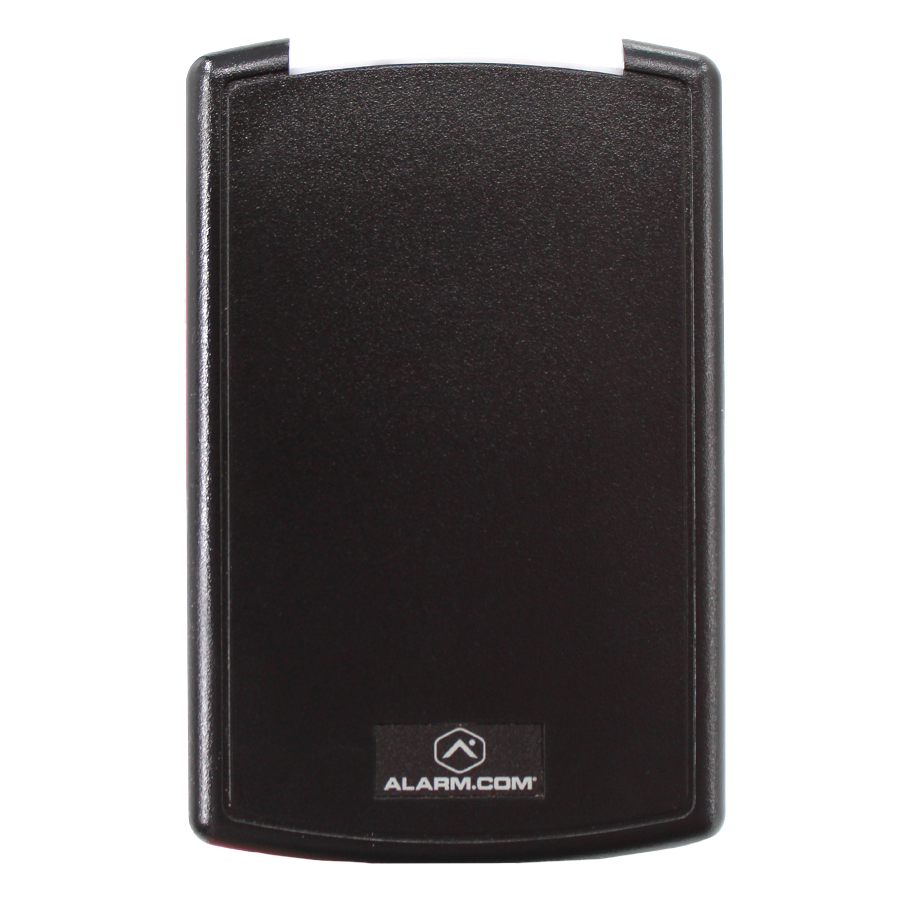

Alarm.com ADC-AC-ET20 Single Gang Reader w/ HF + Prox + Mobile

ALARM.COM ADC-AC-ET20 Single Gang Reader w/ HF + Prox + Mobile offers a sophisticated and versatile access control solution tailored for commercial properties. This reader seamlessly integrates with the Alarm.com for Business platform, allowing for intelligent automation, such as disarming when badging in and locking doors upon arming. Equipped with multiple technologies, the ADC-AC-ET20 supports Proximity (125 kHz), MIFARE DESFire (13.56 MHz), NFC, and Bluetooth®, ensuring flexibility in access methods. It features mobile credentials support, enabling users to unlock doors using their smartphones, effectively eliminating the need for physical badges. The reader is OSDP™ compliant, with secure channel capabilities and remote firmware upgradability. Installation is user-friendly, requiring no networking expertise-just plug and play. The ADC-AC-ET20 can manage doors and users effortlessly from the Alarm.com app, providing integrated intrusion and video monitoring options. With an accelerometer-based tamper detection system, tri-state LED light bar, and an audible beeper, security is enhanced. Built to withstand diverse environments, this reader operates within a temperature range of -31°F to 151°F and is designed for both indoor and outdoor installations. Weighing in at 10 oz and measuring 5.1 x 3.3 x 0.7 inches, the ADC-AC-ET20 combines robust functionality with modern design.

Single Gang Reader w/ HF + Prox + Mobile

Smarter Access Control is a powerful, easy-to-use solution for commercial properties that seamlessly integrates with the Alarm.com for Business platform. This platform enables intelligent automation and features, such as disarming when badging in, locking doors when arming, and tagging access events on the video timeline. These three multi-technology contactless access control readers offer a modern aesthetic and a state-of-the-art feature set, including Proximity (125 kHz), MIFARE DESFire (13.56 MHz), NFC, and Bluetooth®. All readers are fully OSDP™ compliant and are enabled for OSDP Secure Channel.

Features:

• Multiple technologies in a single reader: Proximity, MIFARE DESFire, NFC & BLE
• Mobile Credentials support enables phones to unlock doors, eliminating badges
• OSDP Auto-Detect
• OSDP Secure Channel and remote firmware upgradability
• MIFARE DESFire® EV1 & EV2 support
• LEAF credential support for secure, open, interoperability
• FSK and ASK legacy proximity credentials support for seamless transitions
• Accelerometer-based tamper detection
• Tri-state LED light bar (red, green, amber) and audible beeper
• Accommodates indoor, outdoor installation environments

Benefits:

• Scan-to-add card format and serial detection
• Control doors and manage users from the Alarm.com app
• Integrated Alarm.com intrusion and video offerings
• User-friendly, flexible scheduling
• Configure hardware using web or app for easy installation
• Plug & play installation—no networking expertise required

Specifications:

• RF Technologies: 125 KHz, 13.56 MHz, NFC, Bluetooth Low Energy
• Reads: MIFARE DESFire® EV1 & EV2, LEAF, FSK and ASK proximity
• Input power: 5-16 VDC, 144 mA max (ET10), 169 mA max (ET20), 193 mA max (ET25)
• Output: OSDP, Wiegand, accelerometer based tamper detection
• Read ranges: EV1: 1.2", EV2: 2.2", 125 kHz up to 4"
• Temperature: -31°F – 151°F (-35°C – 66°C)
• Dimensions: 5.1 x 1.7 x 0.7" (13.0 x 4.3 x 1.8cm) (ET10), 5.1 x 3.3 x 0.7" (13.0 x 8.4 x 1.8cm) (ET20 & ET25)
• Operating Humidity: 5 – 95% (non-condensing) RH
• Weight: 7 oz (ET10), 10 oz (ET20), 11.3 oz (ET25)
• Certifications: FCC, IC, CE, UL 294,EN 302291, EN 301489, EN 300330,EN 50130-4, IP55, BIS IS 13252
