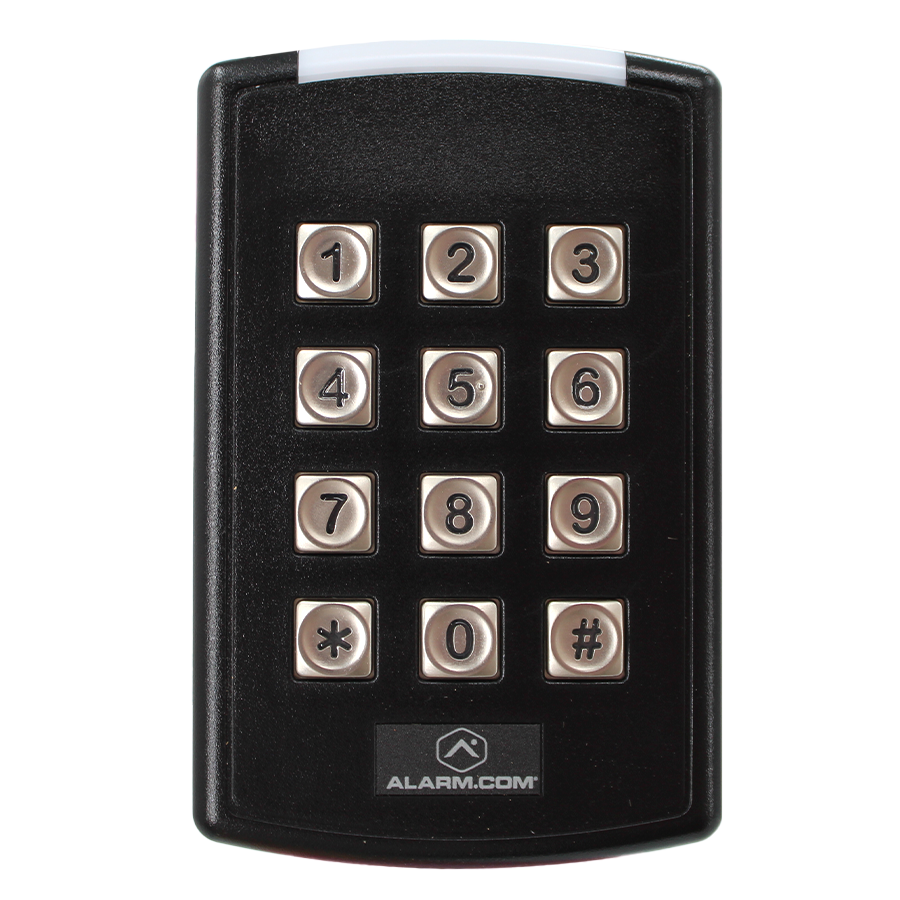

Alarm.com ADC-AC-ET25 Keypad Reader with HF + Prox + Mobile

ALARM.COM ADC-AC-ET25 Keypad Reader with HF + Prox + Mobile offers a cutting-edge solution for secure access control in commercial properties. Designed to integrate seamlessly with the Alarm.com for Business platform, this reader enhances security through intelligent automation, enabling features such as automatic disarming upon entry and door locking when arming the system. This versatile device supports multiple contactless technologies, including Proximity (125 kHz), MIFARE DESFire (13.56 MHz), NFC, and Bluetooth®, ensuring compatibility with various credential types. The ADC-AC-ET25 is fully OSDP compliant, featuring secure channel capabilities and remote firmware upgrades for enhanced security. Additionally, its user-friendly interface allows for easy management of doors and user permissions directly from the Alarm.com app. The reader’s robust design accommodates both indoor and outdoor installations, with a temperature tolerance ranging from -31°F to 151°F. Equipped with accelerometer-based tamper detection and a tri-state LED light bar for visual feedback, the ADC-AC-ET25 ensures reliable operation. With a plug-and-play installation process, no networking expertise is required, making it an ideal choice for building professionals and knowledgeable homeowners seeking a modern access control solution.

Keypad Reader with HF + Prox + Mobile

Smarter Access Control is a powerful, easy-to-use solution for commercial properties that seamlessly integrates with the Alarm.com for Business platform. This platform enables intelligent automation and features, such as disarming when badging in, locking doors when arming, and tagging access events on the video timeline. These three multi-technology contactless access control readers offer a modern aesthetic and a state-of-the-art feature set, including Proximity (125 kHz), MIFARE DESFire (13.56 MHz), NFC, and Bluetooth®. All readers are fully OSDP™ compliant and are enabled for OSDP Secure Channel.

Features:

• Multiple technologies in a single reader: Proximity, MIFARE DESFire, NFC & BLE
• Mobile Credentials support enables phones to unlock doors, eliminating badges
• OSDP Auto-Detect
• OSDP Secure Channel and remote firmware upgradability
• MIFARE DESFire® EV1 & EV2 support
• LEAF credential support for secure, open, interoperability
• FSK and ASK legacy proximity credentials support for seamless transitions
• Accelerometer-based tamper detection
• Tri-state LED light bar (red, green, amber) and audible beeper
• Accommodates indoor, outdoor installation environments

Benefits:

• Scan-to-add card format and serial detection
• Control doors and manage users from the Alarm.com app
• Integrated Alarm.com intrusion and video offerings
• User-friendly, flexible scheduling
• Configure hardware using web or app for easy installation
• Plug & play installation—no networking expertise required

Specifications:

• RF Technologies: 125 KHz, 13.56 MHz, NFC, Bluetooth Low Energy
• Reads: MIFARE DESFire® EV1 & EV2, LEAF, FSK and ASK proximity
• Input power: 5-16 VDC, 144 mA max (ET10), 169 mA max (ET20), 193 mA max (ET25)
• Output: OSDP, Wiegand, accelerometer based tamper detection
• Read ranges: EV1: 1.2", EV2: 2.2", 125 kHz up to 4"
• Temperature: -31°F – 151°F (-35°C – 66°C)
• Dimensions: 5.1 x 1.7 x 0.7" (13.0 x 4.3 x 1.8cm) (ET10), 5.1 x 3.3 x 0.7" (13.0 x 8.4 x 1.8cm) (ET20 & ET25)
• Operating Humidity: 5 – 95% (non-condensing) RH
• Weight: 7 oz (ET10), 10 oz (ET20), 11.3 oz (ET25)
• Certifications: FCC, IC, CE, UL 294,EN 302291, EN 301489, EN 300330,EN 50130-4, IP55, BIS IS 13252
