Images may not represent actual product and finish

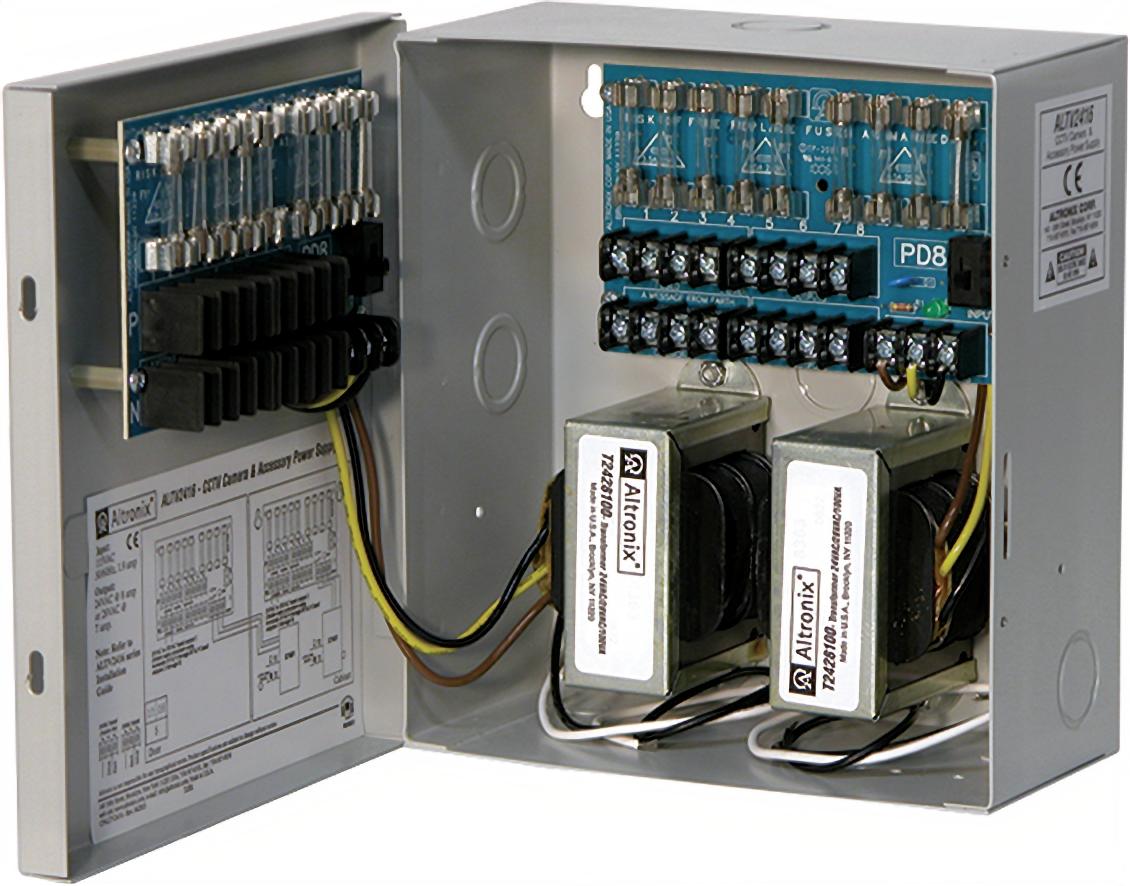

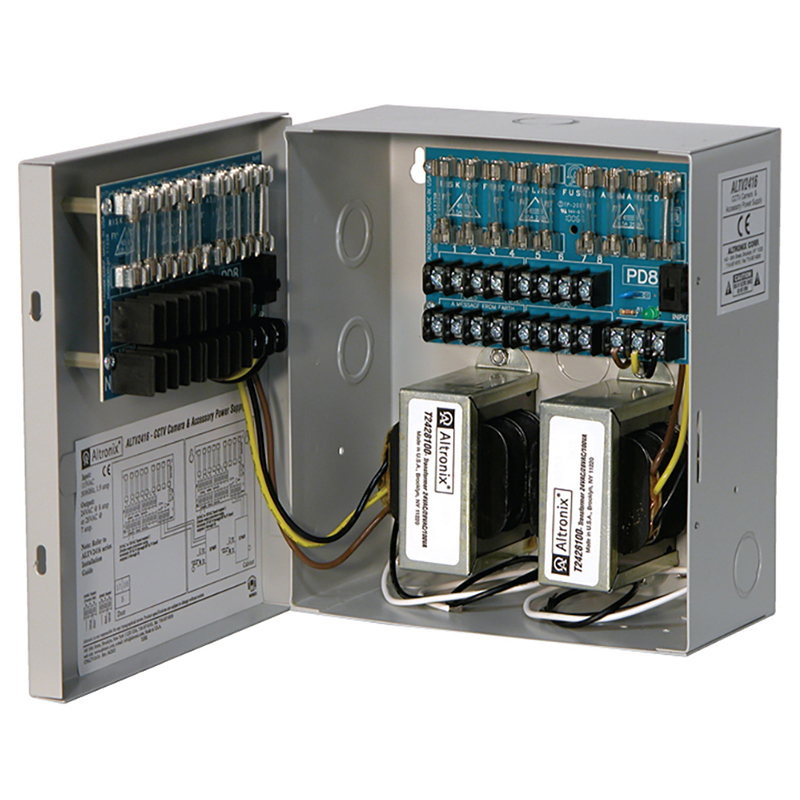

Altronix ALTV2416 Power Supply

Your Price: $270.03

Retail Price:$353.15

Your Savings:$83.12(24%)

CCTV Power Supply, Input 115VAC 50/60Hz at 1.9A, 16 Fuse Protected Outputs, 24VAC at 8A or 28VAC at 7A, Grey Enclosure

Part Number : ALT_ALTV2416

Availability: 11 In Stock

Quantity

Description

Altronix ALTV2416 Power Supply

24VAC @ 8 amp or 28VAC 7A (200VA) supply current. Sixteen (16) fuse protected outputs. Surge suppression. Includes transformer & enclosure.

Input:
115VAC, 50/60Hz, 1.9 amp.
Output:
Sixteen (16) fuse protected outputs.
24VAC @ 8 amp (192VA) supply current (0.5 amp per device, 3.5 amp max.)
28VAC @ 7 amp (196VA) supply current (0.438 amp per device, 3.5 amp max.)
Outputs are rated @ 3.5 amp.
Surge suppression.
Electrical:
Operating temperature: 0° C to 49° C ambient.
BTU/Hr.:
24VAC: 98.27 BTU/Hr.
28VAC: 100.32 BTU/Hr.
System AC input VA requirement: 218.5VA.
Features:
Secondary fuse rated @ 10 amp/250V.
AC power LED.
Power ON/OFF switch.
Spare fuses provided.
(all models w/primary and/or secondary fuses).
Mechanical:
Enclosure Dimensions (H x W x D approx.): 8.5" x 7.5" x 3.5" (215.9mm x 190.5mm x 88.9mm).
Product weight (approx.): 9.1 lbs. (4.1 kg).
Shipping weight (approx.): 10.1 lbs. (4.6 kg).

Features

115VAC, 50/60Hz, 1.9 amp.
Input:
28VAC @ 7 amp (196VA) supply current (0.438 amp per device, 3.5 amp max.)
28VAC: 100.32 BTU/Hr.
AC power LED.
System AC input VA requirement: 218.5VA.
(all models w/primary and/or secondary fuses).
24VAC: 98.27 BTU/Hr.
Product weight (approx.): 9.1 lbs. (4.1 kg).
Sixteen (16) fuse protected outputs.
Output:
24VAC @ 8 amp (192VA) supply current (0.5 amp per device, 3.5 amp max.)
Enclosure Dimensions (H x W x D approx.): 8.5" x 7.5" x 3.5" (215.9mm x 190.5mm x 88.9mm).
Outputs are rated @ 3.5 amp.
Electrical:
Power ON/OFF switch.
Mechanical:
Spare fuses provided.
Operating temperature: 0° C to 49° C ambient.
Shipping weight (approx.): 10.1 lbs. (4.6 kg).
Features:
Surge suppression.
Secondary fuse rated @ 10 amp/250V.
BTU/Hr.:

Attributes

Access Type: CCTV Power Supply

Alternate Codes: 125267, ALTV2416, PS2416

Category: Access Control, Alarm Power Supplies, Alarms & Intercom, Burglar Alarms, CCTV Power Supplies, CCTV Products, Power Supplies, Wire & Power Supplies

Commercial Residential: Commercial

Installation: Commercial

Output Amps: 8/7 AMPS

Output Volts: 24/28VAC

Pack Qty: 1

Purpose: CCTV

Series: Altronix Power Supplies

Ship Weight: 10.2 lbs.

Subtype: Power Supply

Transformer Output: 5 to 10 Amps

Transformer Type: AC

Type: Wire-In Transformer

Unit of Measure: Each

Voltage/ Amp Rating: 24V AC
