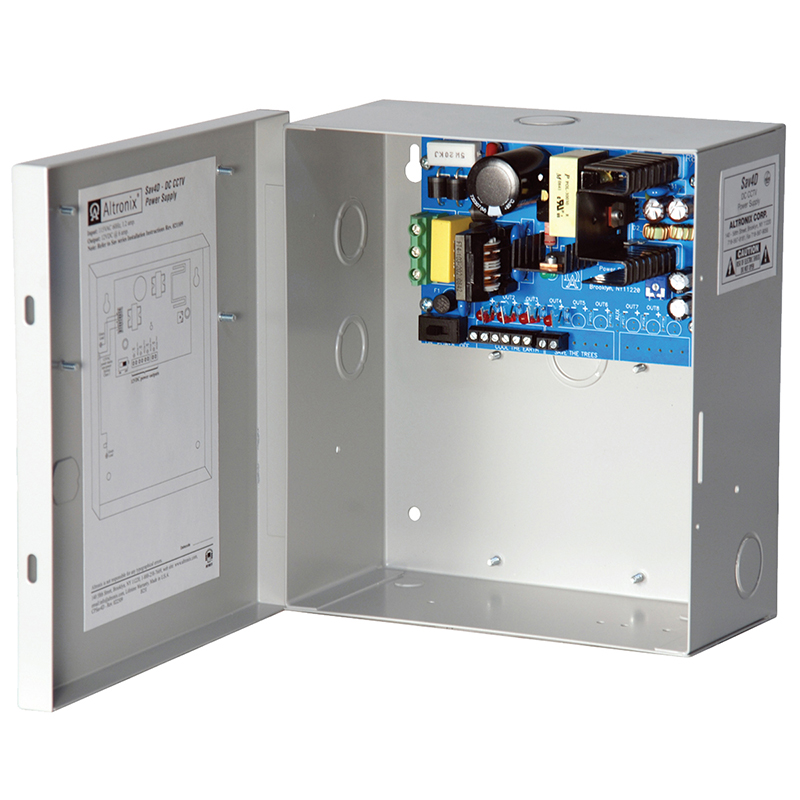

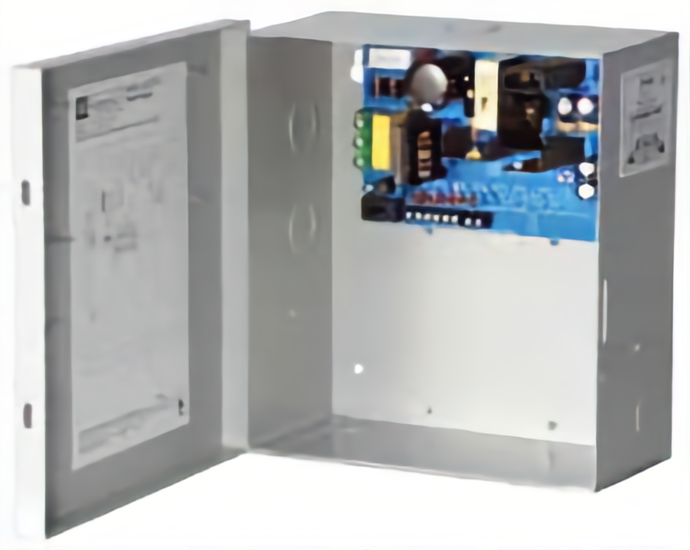

Altronix SAV4D Power Supply
Images may not represent actual product and finish

Altronix SAV4D Power Supply

Your Price: $149.56
Retail Price:$200.69
Your Savings:$51.13(25%)
DC CCTV Power Supply, 115VAC 60Hz at 1.5A or 230VAC 50Hz at 0.75A Input, 4 PTC Protected Class 2 Outputs 12VDC at 5A Max Total Current, Grey Enclosure
Part Number : ALT_SAV4D
Availability: 15 In Stock
Altronix SAV4D Power Supply

Sav4D Power Supply provides 12VDC distributed via four (4) Class 2 Rated PTC protected power-limited outputs for powering surveillance cameras.
  • Input:
  • 115VAC 60Hz, 1.5 amp /230VAC 50Hz, 0.75 amp.
  • Output:
  • 12VDC @ 5 amp total output current (0.27 amp per device, 2.5 amp max.).
  • Four (4) Class 2 Rated PTC protected power limited outputs.
  • Filtered and electronically regulated outputs.
  • Short circuit and thermal overload protection.
  • Electrical:
  • Operating temperature: 0° C to 49° C ambient.
  • 30.71 BTU/Hr.
  • System AC input VA requirement: 172.5VA.
  • Features:
  • Four (4) power LEDs.
  • Field installable 3-wire line cord with integral strain relief.
  • Unit maintains camera synchronization.
  • Ease of installation saves time and eliminates costly labor.
  • Mechanical:
  • NEMA1 enclosure.
  • Enclosure Dimensions (H x W x D approx.): 8.5" x 7.5" x 3.5" (215.9mm x 190.5mm x 88.9mm).
  • Product weight (approx.): 4.1 lbs. (1.86 kg).
  • Shipping weight (approx.): 4.6 lbs. (2.09 kg).

Features

  • Four (4) Class 2 Rated PTC protected power limited outputs.
  • Short circuit and thermal overload protection.
  • Field installable 3-wire line cord with integral strain relief.
  • Input:
  • NEMA1 enclosure.
  • Ease of installation saves time and eliminates costly labor.
  • Shipping weight (approx.): 4.6 lbs. (2.09 kg).
  • Product weight (approx.): 4.1 lbs. (1.86 kg).
  • Unit maintains camera synchronization.
  • Filtered and electronically regulated outputs.
  • 115VAC 60Hz, 1.5 amp /230VAC 50Hz, 0.75 amp.
  • 12VDC @ 5 amp total output current (0.27 amp per device, 2.5 amp max.).
  • Output:
  • Enclosure Dimensions (H x W x D approx.): 8.5" x 7.5" x 3.5" (215.9mm x 190.5mm x 88.9mm).
  • Electrical:
  • Mechanical:
  • Operating temperature: 0° C to 49° C ambient.
  • System AC input VA requirement: 172.5VA.
  • Features:
  • 30.71 BTU/Hr.
  • Four (4) power LEDs.

Attributes

Manufacturer surcharge: $ 0.0

Access Type: Power Supply

Alternate Codes: SAV4D

Category: Access Control, Alarm Power Supplies, Alarms & Intercom, Burglar Alarms, CCTV Power Supplies, CCTV Products, Power Supplies, Wire & Power Supplies

Commercial Residential: Commercial

Function: 4 Output CCTV Power Supply

Installation: Commercial

Output Amps: 5 AMPS

Output Volts: 12VDC

Pack Qty: 1

Purpose: CCTV

Series: Altronix Power Supplies

Ship Weight: 4.65 lbs.

Subtype: Power Supply

Transformer Output: 5 to 10 Amps

Transformer Type: DC

Type: Wire-In Transformer

Unit of Measure: Each

Voltage: 12V DC
