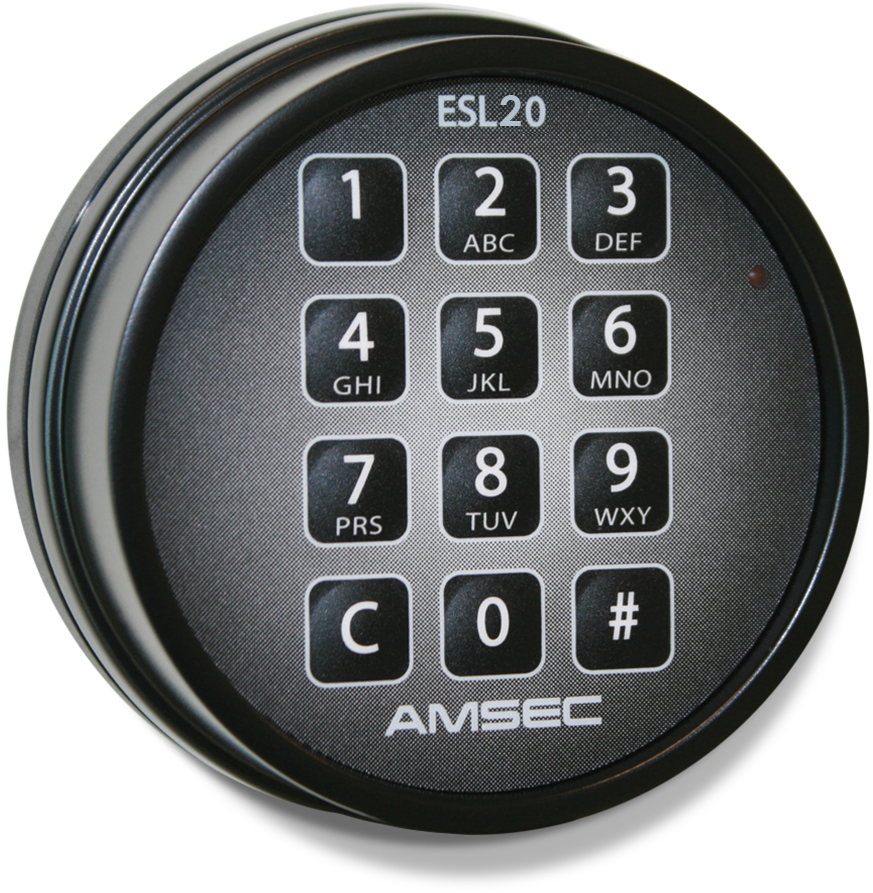

Amsec 0616258 Black ESL20 (UL Type 1) Retro-Fit Kit

Amsec 0616258 Black ESL20 (UL Type 1) Retro-Fit Kit offers an advanced electronic locking solution ideal for both commercial and residential applications. This lock combines high security with user-friendly features, making it a top choice for those who demand reliability and functionality. The ESL20XL features a time delay mode that can be set between 1 to 99 minutes, providing an added layer of security against unauthorized access. It supports multiple user codes, allowing one Master code and up to eight user codes, ensuring full control and management over access. For enhanced protection, the dual control mode requires two combinations to unlock, while the armored car override facilitates emergency access when needed. Designed for easy installation, the lock comes with an attractive metal die-cast keypad housing and a splash-proof keypad, ensuring durability in various environments. The encapsulated electronics are sealed against moisture and a patented dead-latched design enhances security. Optional expansion modules enhance functionality further, allowing connections for alarm systems and external A/C power. With a standard bolt type and powered by a 9V battery, the Amsec ESL20 is UL Listed and combines robust security with practical usability for every setting.

Black ESL20 (UL Type 1) Retro-Fit Kit

Amsec has been a pioneer in the electronic lock market. The ESLXL Series locks offer unrivaled value in electronic safe access. The ESL10XL and ESL20XL locks have the best blend of features and function in Electronic Safe Locks. The ESLXL Series offer an attractive metal die-cast keypad housing with an alpha-numeric slanted keypad. The ESL10XL is a basic keypad lock for home and office applications. The ESL20XL offers advanced features necessary for commercial applications. All the ESL20XL features are programmed from the keypad. The Expansion Modules provide convenient screw terminal and slip spade connections for field wiring by the installer. A/C Power can be connected to the ESL10XL and ESL20XL lock (with the ESLAC kit) or an Expansion Module (with the ESLTFMR kit). Wiring, conduit and attachment hardware is provided with all optional kits.

ESL10XL Features:

• Replaces most mechanical combination locks. Easy installation and operation.
• Factory Reset Combination for solving lost combinations without requiring expensive service calls.
• Electronics are encapsulated within the lock and are sealed to prevent possible moisture related failures.
• Cable fits through a 1/2" spindle hole without cutting and re-crimping connector.
• Audible beep and flash from every keystroke gives maximum feedback to the user.
• 15 minute Penalty Lockout after four incorrect entries protects against manipulation attempts.
• New patented dead-latched lock design with an internal relock device for maximum security.
• Lock "auto-locks" when bolt work is thrown to prevent safes from being left in a day lock position.
• Slam Bolt version for locker applications.
• Optional internal battery pack extends operation between battery changes.

ESL20XL Features:

• Time Delay Mode: Delays can be set from 1 to 99 minutes.
• Multiple User Mode: When enabled, one Master code and eight user codes are available with full supervisory control and code management.
• Dual Control Mode: The lock can be programmed to require two combinations to open for added security.
• Armored Car Override: When enabled, allows an armored car service to bypass Time Delay.
• External A/C Power: Provides power for unlimited use with battery power as backup.
• Control Port: Turn the ESL20XL on/off with an Access Manager, Alarm System or other device.

Optional Expansion Modules:

• Provides these additional capabilities on the ESL20XL:
• Duress (Silent Signal) Alarm Output. Provides relay output for alarm system connection.
• External connection for A/C power transformer on ESL20XL and ESL10XL.
• External connection for control port.
• Provides for connection of one or two ESL20XL locks.
