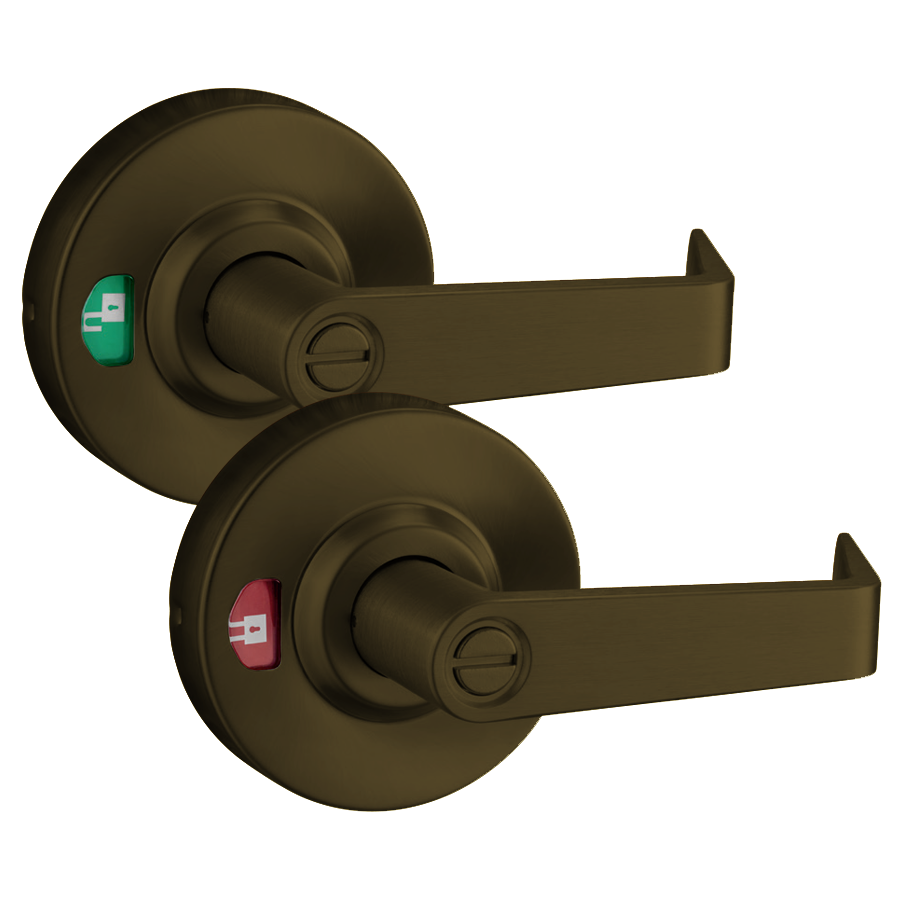

Arrow Lock APL02-ST-613E-UNV Sierra Grade 1 Privacy Indicator Lever, 2-3/8in 2-3/4in Backset, Satin Bronze

Arrow Lock Company APL02-ST-613E-UNV Privacy Indicator Sierra Lever Grade 1 offers a perfect blend of security and convenience, making it an ideal choice for various commercial applications. This cylindrical lock features bold red and green status indicators, allowing users to quickly determine if the door is locked or unlocked at a glance. Its privacy function automatically unlocks when the inside lever is rotated or the door is closed, ensuring ease of access while preventing lockouts. Designed for retrofit applications, the APL Series lock boasts a patent-pending design that simplifies installation and upgrades. It meets ANSI/BHMA A156.2 Grade 1 standards and is UL/cUL listed for 3-hour doors, ensuring superior strength and durability for high-use environments. The stainless steel latch features a ½" throw, while the lock accommodates standard 2-1/8" door preparations and fits doors ranging from 1-3/8" to 1-3/4" thick. Perfect for restrooms, quiet rooms, nursing mothers’ rooms, dressing rooms, and conference rooms, this lock eliminates the need for a separate deadbolt, allowing for one-motion egress. With a 3-year mechanical warranty and multiple finish options, including dark oxidized satin bronze, the Arrow Lock APL02-ST-613E-UNV is an excellent choice for any professional setting.

Privacy Indicator Sierra Lever Grade 1, Includes 2-3/8in, 2-3/4in Backset and 1-3/8in Door Spacer, 613E/US10BE Dark Oxidized Satin Bronze

Arrow's APL Series cylindrical lock with status indicators provides enhanced privacy at a glance with it's bold green and red status symbols. This cylindrical lock is the ideal choice for a wide variety of commercial applications where consistent quality, ease of use and installation are required.

Features:

• Bright red or green window display with padlock icon
• Ideal for retrofit applications
• Privacy function with automatic unlock when rotating inside lever or closing door
• Patent pending design
• Suitable for multiple applications
• Certified ANSI/BHMA A156.2 Grade 1 and UL/cUL listed for 3 hour doors
• 3-year mechanical warranty
• Status indicator window allows the user to clearly see if the door is locked or unlocked at a glance
• Quick and easy installation makes upgrading to accommodate a status indicator simple and cost effective
• Allows for one motion egress and prevents lockouts of unoccupied rooms
• Incorporating indicator in the lock, eliminates the need for a separate deadbolt and allows for one motion egress
• Meets strength and durability standards for high use applications

Applications:

• Restrooms
• Quiet Rooms
• Nursing Mother’s Rooms
• Dressing Rooms
• Conference Rooms

Specifications:

• Door Preparation: Requires standard 2-1/8" (54mm) bore with through bolts.
• Backset: 2-3/8" (60mm) or 2-3/4" (70mm)
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4". 1-3/8" doors require the use of spacers.
• Latch: Stainless Steel 1/2" (13mm) throw, UL Listed, spring latch
• Latch Front: 1-1/8" x 2-1/4" for 2-3/4" (70mm) backset
• Strike: 4-7/8" (ANSI (124mm)
• Handing: Non-handed

Finishes:

• 605/US3 - Bright Brass
• 613E/US10BE - Dark Oxidized Satin Bronze Equivalent
• 626/US26D - Satin Chromium Plated
• BSP - Black Suede Powder Coat
