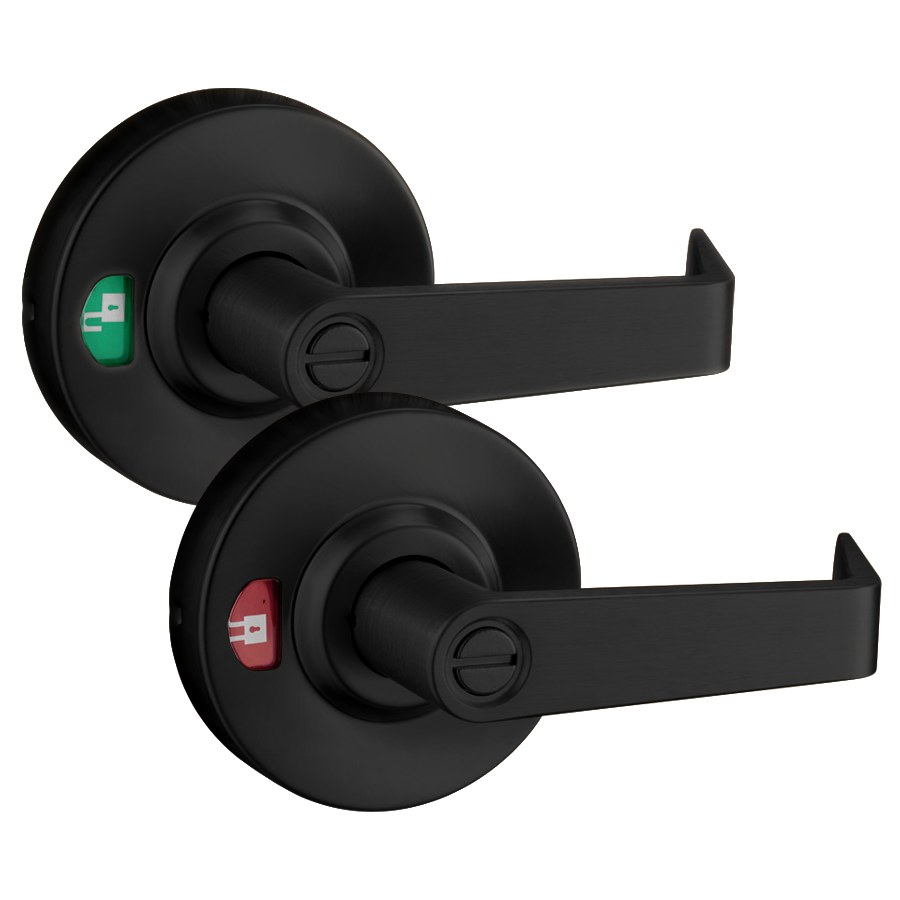

Arrow Lock APL02-ST-BSP-UNV Sierra Grade 1 Privacy Indicator Lever, Black Suede, 2-3/8in 2-3/4in Backset

Arrow Lock Company APL02-ST-BSP-UNV Privacy Indicator Sierra Lever Grade 1 is engineered for superior functionality and enhanced privacy in commercial environments. This cylindrical lock features striking red and green status indicators, allowing users to quickly ascertain whether a space is occupied. It is particularly suited for retrofit applications, making it an ideal upgrade for facilities seeking improved privacy solutions. Designed for versatility, the APL02-ST-BSP-UNV is perfect for restrooms, quiet rooms, nursing mother’s rooms, dressing rooms, and conference rooms. Its privacy function ensures automatic unlocking when the inside lever is rotated or when the door closes, preventing accidental lockouts of unoccupied rooms. The lock meets ANSI/BHMA A156.2 Grade 1 and is UL/cUL listed for 3-hour doors, ensuring it meets high standards of durability and reliability. Installation is both quick and straightforward, accommodating standard 2-1/8" bore doors with a backset option of either 2-3/8" or 2-3/4". The APL02-ST-BSP-UNV is constructed with a stainless steel latch and offers a sleek Black Suede Powder Coat finish, adding both style and strength to your security needs. With a 3-year mechanical warranty, this lock is a smart investment for any professional setting.

Privacy Indicator Sierra Lever Grade 1, Includes 2-3/8in, 2-3/4in Backset and 1-3/8in Door Spacer, 622/US19/BSP Black Suede Powder Coat

Arrow's APL Series cylindrical lock with status indicators provides enhanced privacy at a glance with it's bold green and red status symbols. This cylindrical lock is the ideal choice for a wide variety of commercial applications where consistent quality, ease of use and installation are required.

Features:

• Bright red or green window display with padlock icon
• Ideal for retrofit applications
• Privacy function with automatic unlock when rotating inside lever or closing door
• Patent pending design
• Suitable for multiple applications
• Certified ANSI/BHMA A156.2 Grade 1 and UL/cUL listed for 3 hour doors
• 3-year mechanical warranty
• Status indicator window allows the user to clearly see if the door is locked or unlocked at a glance
• Quick and easy installation makes upgrading to accommodate a status indicator simple and cost effective
• Allows for one motion egress and prevents lockouts of unoccupied rooms
• Incorporating indicator in the lock, eliminates the need for a separate deadbolt and allows for one motion egress
• Meets strength and durability standards for high use applications

Applications:

• Restrooms
• Quiet Rooms
• Nursing Mother’s Rooms
• Dressing Rooms
• Conference Rooms

Specifications:

• Door Preparation: Requires standard 2-1/8" (54mm) bore with through bolts.
• Backset: 2-3/8" (60mm) or 2-3/4" (70mm)
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4". 1-3/8" doors require the use of spacers.
• Latch: Stainless Steel 1/2" (13mm) throw, UL Listed, spring latch
• Latch Front: 1-1/8" x 2-1/4" for 2-3/4" (70mm) backset
• Strike: 4-7/8" (ANSI (124mm)
• Handing: Non-handed

Finishes:

• 605/US3 - Bright Brass
• 613E/US10BE - Dark Oxidized Satin Bronze Equivalent
• 626/US26D - Satin Chromium Plated
• BSP - Black Suede Powder Coat
