Arrow Lock BM20 XL 26D IC7 Mortise Entrance Lock

Arrow Lock BM20 XL 26D IC7 Mortise Lock - Entrance offers a robust solution for high-security settings, ideal for schools, hospitals, and commercial buildings. This entrance and dormitory mortise lock features a durable X lever and L rose design, complemented by a satin chrome finish. Built from heavy gauge steel with a zinc dichromate finish, the lock case is resistant to corrosion, ensuring longevity even in demanding environments. Engineered for strength and performance, the BM Series meets ANSI Grade 1 standards, making it suitable for heavy-duty use. The lockset is handed but can be field-reversed without disassembly, adding to its versatility. Designed for doors with a standard thickness of 1-3/4 inches, it has a backset of 2-3/4 inches and accommodates various trim designs. The stainless steel latchbolt features a two-piece mechanical design with anti-friction inserts for smooth operation, while the one-piece deadbolt provides additional security. Keying options include master keying and high security cylinders, allowing for tailored access control. Backed by a five-year limited warranty, the Arrow Lock BM20 is a reliable choice for those prioritizing security and durability in their locking solutions.

Mortise Lock - Entrance

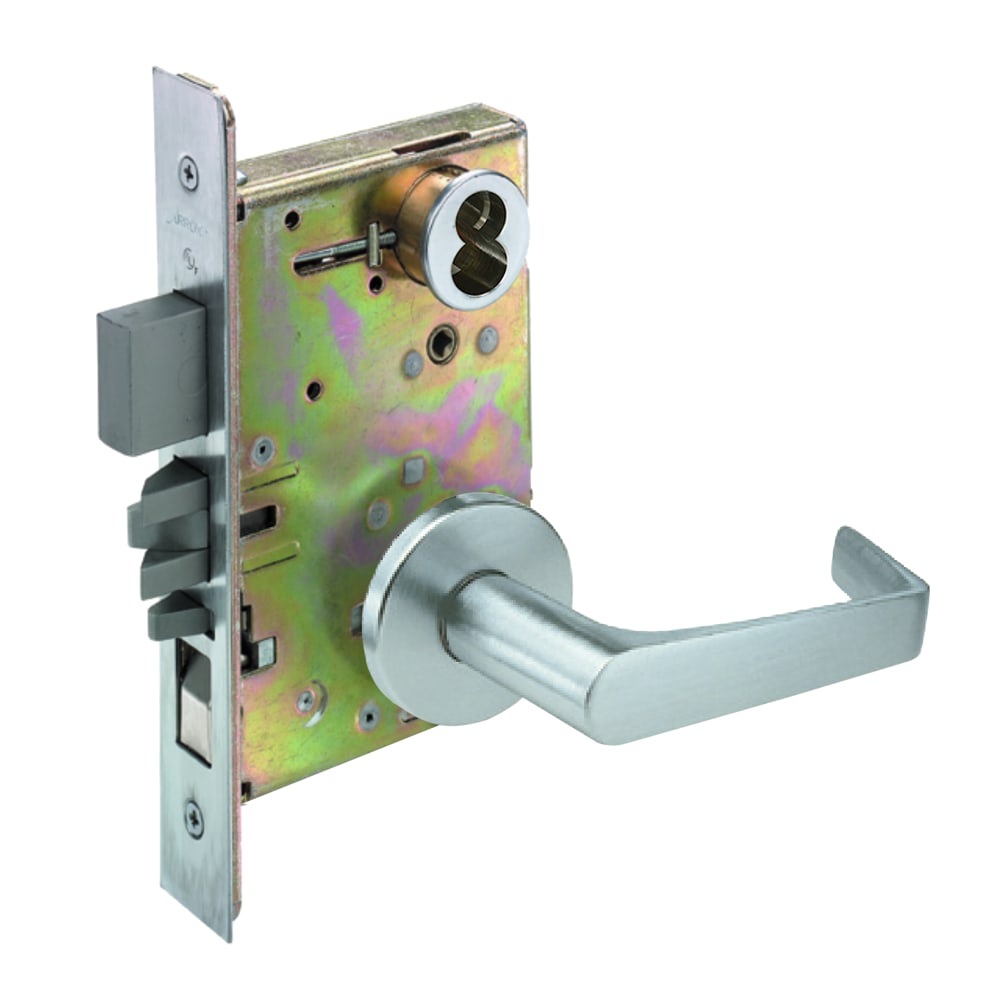

Entrance, Dormitory Mortise Lock, X Lever, L Rose, SFIC Prep Less Core, Satin Chrome

Arrow mortise locks are offered in a complete range of functions designed for commercial, institutional and industrial applications. They are engineered for strength and performance, and precisely manufactured to exacting standards. Arrow mortise locks are intended for heavy duty use in schools, hospitals and commercial buildings where security, durability and low maintenance are required. The lock case is made from heavy gauge steel, with zinc dichromate finish for corrosion resistance and it can be re-handed without disassembling the lock case. A wide selection of trim designs and functions are offered which meet or exceed the performance requirements of ANSI Grade 1.

The BM Series are engineered for strength and performance, and precisely manufactured to exact standards.

Arrow BM Series Lever Mortise Locks are intended for heavy duty use in schools, hospitals and commercial buildings where security, durability and low maintenance are required.

• Handing: Handed; field reversible. The lockset can be re-handed without disassembling the lock case.
• Door Thickness: 1-3/4" (4mm) standard. Optional door thickness available; consult factory.
• Backset: 2-3/4" (70mm).
• Lockcase: Heavy gauge steel, with zinc dichromate finish for corrosion resistance. 5-7/8" (149mm) x 4" (102mm) x 15/16" (24mm).
• Armored Front: Heavy gauge steel, 8" (203 mm) x 1-1/4" (32mm) x 3/32" (2mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm).
• Faceplate: Wrought brass or bronze, attached by machine screws to lockcase front.
• Latchbolt: Stainless steel, 2 piece mechanical with anti-friction insert. 5/8" (16mm) x 1" (25mm) x 3/4" (19mm) throw.
• Auxiliary Latchbolt: 9/16" (14mm) effective throw and 3/8" (10mm) effective auxiliary latch deadlocking.
• Deadbolt: One-piece stainless steel, 19/32" (15mm) x 1 1/4" (32mm) x 1" (25mm) throw.
• Hub: Lever: nickel steel, 5/16" (8mm).
• Spacing: Center to center, hub to cylinder: 3-5/8" (92mm).
• Center to center, hub to turnpiece: 2-7/16" (62 mm).
• Strike: Wrought brass or bronze, ANSI straight lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) 1-1/8" (29mm) lip to center. Optional strikes, lip lengths and ANSI wrought strike box available.
• Keys: Two nickel silver standard.
• Keying Features Available:
  • Master keying
  • Construction master keying
  • Visual key control
  • Concealed key control
  • High security cylinder
  • Interchangeable core (IC) - Pointe, Pointe Flex
• Warranty: Five-year limited.
