Arrow Lock BM21 VG 26D Mortise Lock for Front Door

Arrow Lock BM21 VG 26D Mortise Lock is a robust solution designed for front door applications in commercial, institutional, and industrial settings. Engineered with precision, this lock meets the rigorous demands of environments such as schools and hospitals, where security, durability, and low maintenance are paramount. The lock case is constructed from heavy gauge steel and features a zinc dichromate finish, ensuring long-lasting corrosion resistance. The BM21 model boasts a field-reversible handing, allowing for easy adjustments without disassembling the lock. It accommodates standard door thicknesses of 1-3/4 inches and includes a 2-3/4 inch backset, making it versatile for various installations. With a deadbolt made from one-piece stainless steel and a stainless steel latchbolt with an anti-friction insert, the lock provides reliable performance. Additional features include a variety of keying options such as master keying and high-security cylinders, as well as a five-year limited warranty for peace of mind. The lock's faceplate is available in wrought brass or bronze, offering aesthetic flexibility. Whether you require a dependable lock for a busy entrance or a secure option for sensitive areas, the Arrow Lock BM21 VG 26D Mortise Lock delivers strength and reliability where it matters most.

Mortise Lock - Front Door

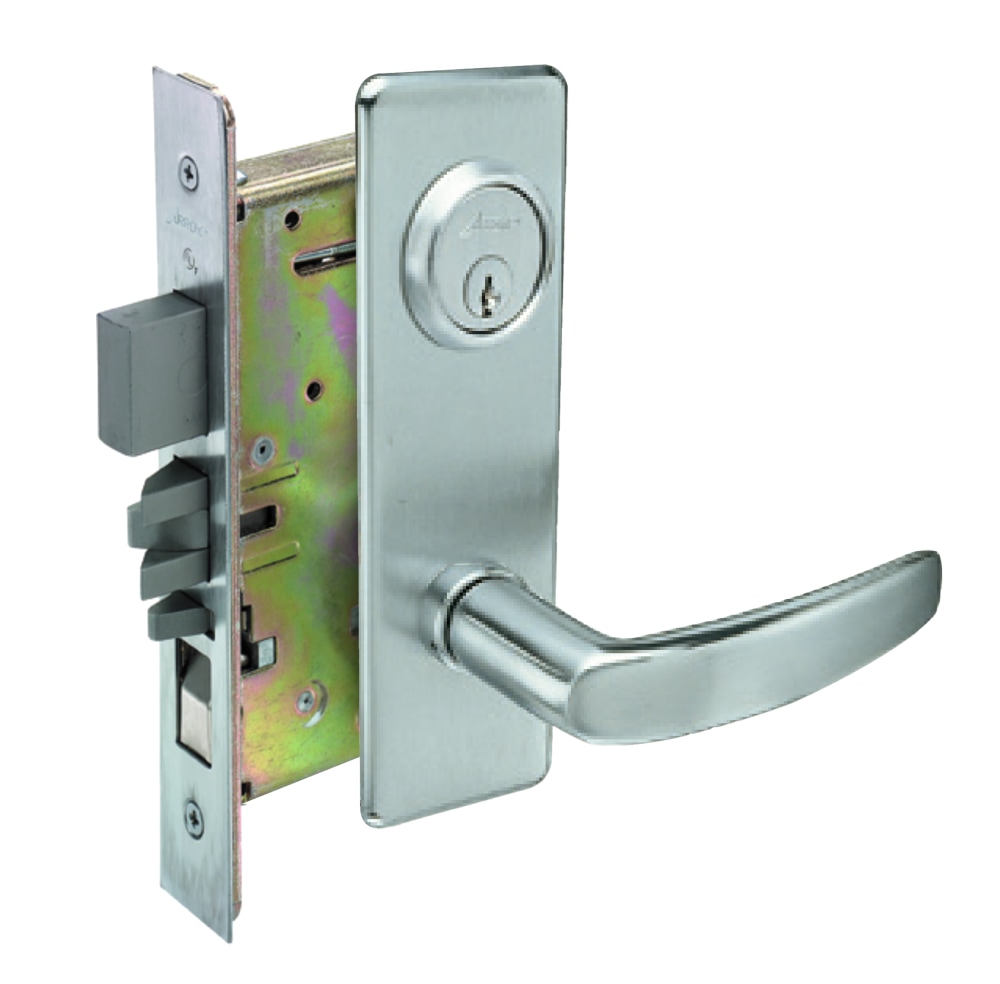

Front Door Mortise Lock, V Lever, G Escutcheon, Satin Chrome

Arrow mortise locks are offered in a complete range of functions designed for commercial, institutional and industrial applications. They are engineered for strength and performance, and precisely manufactured to exacting standards. Arrow mortise locks are intended for heavy duty use in schools, hospitals and commercial buildings where security, durability and low maintenance are required. The lock case is made from heavy gauge steel, with zinc dichromate finish for corrosion resistance and it can be re-handed without disassembling the lock case. A wide selection of trim designs and functions are offered which meet or exceed the performance requirements of ANSI Grade 1.

The BM Series are engineered for strength and performance, and precisely manufactured to exact standards.

Arrow BM Series Lever Mortise Locks are intended for heavy duty use in schools, hospitals and commercial buildings where security, durability and low maintenance are required.

• Handing: Handed; field reversible. The lockset can be re-handed without disassembling the lock case.
• Door Thickness: 1-3/4" (4mm) standard. Optional door thickness available; consult factory.
• Backset: 2-3/4" (70mm).
• Lockcase: Heavy gauge steel, with zinc dichromate finish for corrosion resistance. 5-7/8" (149mm) x 4" (102mm) x 15/16" (24mm).
• Armored Front: Heavy gauge steel, 8" (203 mm) x 1-1/4" (32mm) x 3/32" (2mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm).
• Faceplate: Wrought brass or bronze, attached by machine screws to lockcase front.
• Latchbolt: Stainless steel, 2 piece mechanical with anti-friction insert. 5/8" (16mm) x 1" (25mm) x 3/4" (19mm) throw.
• Auxiliary Latchbolt: 9/16" (14mm) effective throw and 3/8" (10mm) effective auxiliary latch deadlocking.
• Deadbolt: One-piece stainless steel, 19/32" (15mm) x 1 1/4" (32mm) x 1" (25mm) throw.
• Hub: Lever: nickel steel, 5/16" (8mm).
• Spacing: Center to center, hub to cylinder: 3-5/8" (92mm).
• Center to center, hub to turnpiece: 2-7/16" (62 mm).
• Strike: Wrought brass or bronze, ANSI straight lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) 1-1/8" (29mm) lip to center. Optional strikes, lip lengths and ANSI wrought strike box available.
• Keys: Two nickel silver standard.
• Keying Features Available:
  • Master keying
  • Construction master keying
  • Visual key control
  • Concealed key control
  • High security cylinder
  • Interchangeable core (IC) - Pointe, Pointe Flex
• Warranty: Five-year limited.
