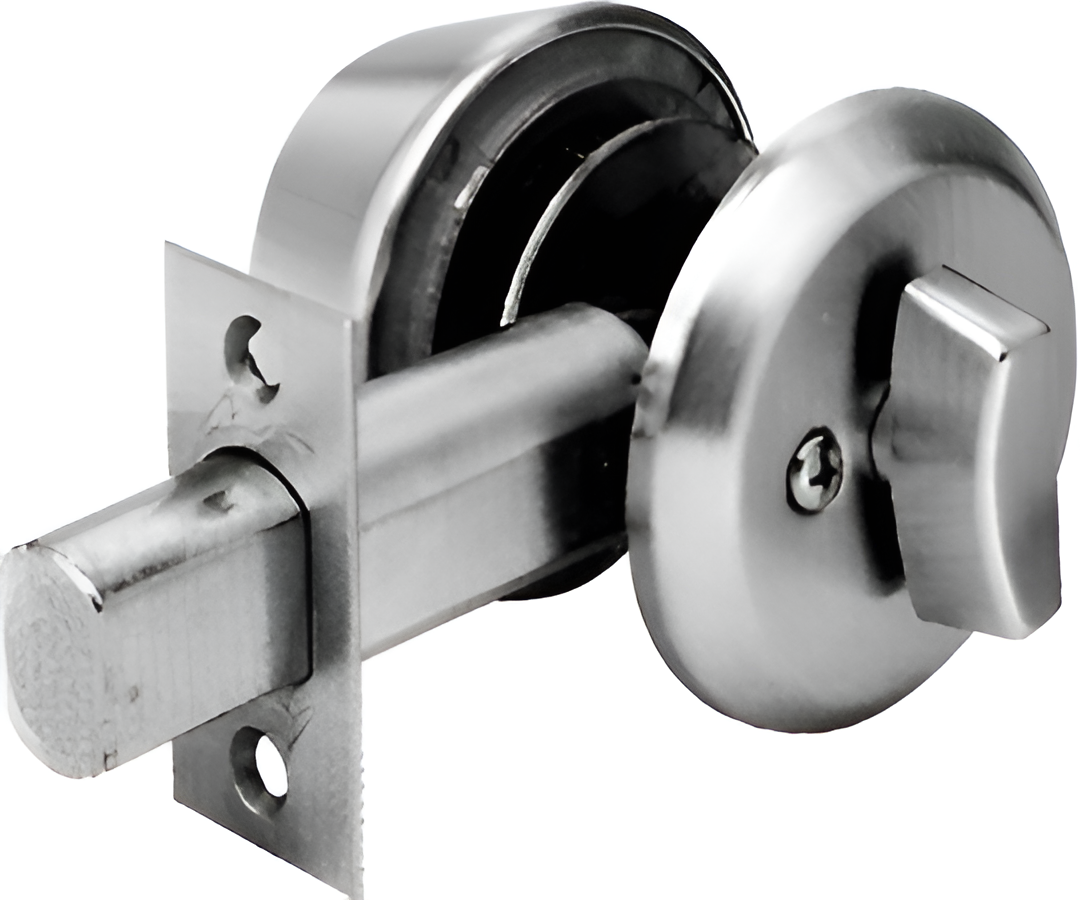

Arrow Lock D61-26D-2 3/4 BS Deadbolt - Single Cylinder, Schlage C Keyway, Grade 1, 626/US26D Satin Chrome

Arrow Lock Company D61-26D-2 3/4 BS Deadbolt is a robust security solution designed for demanding environments. As a Grade 1 extra heavy-duty deadlock, it meets the highest standards of durability and performance, making it suitable for industrial, institutional, and commercial applications. This single-cylinder deadbolt features a solid steel construction with a 1" (25.40mm) throw and a hardened, free-spinning steel pin to enhance resistance against tampering. Its two-piece housing is equipped with a free-spinning outer ring to prevent wrenching, ensuring added security. The deadbolt is compatible with doors ranging from 1-3/8" (34.925mm) to 1-3/4" (44.45mm) thick and utilizes a 2-3/8" (60.32mm) or 2-3/4" (69.85mm) backset. The D61-26D-2 also features a Schlage C keyway, providing versatility in keying options, including interchangeable cores. It comes standard with two nickel silver keys and is reversible for ease of installation. With certification under ANSI A156.5, this deadbolt is also UL listed for use on 20-minute fire doors when paired with a rated primary latching device. Finished in Satin Chrome (626/US26D), the Arrow Lock Company D61-26D-2 3/4 BS Deadbolt combines style with security, making it an ideal choice for those who prioritize safety without compromising on aesthetics.

Deadbolt - Single Cylinder, Schlage C Keyway, Grade 1, 626/US26D Satin Chrome

Arrow D Series deadlocks are engineered to perform under the most extreme conditions where security is critical. Our Grade 1 extra heavy duty deadlock surpasses the demands of industrial, institutional and commercial applications.

Specifications:

• Housing: Two-piece housing, with free-spinning outer ring to prevent wrenching. Concealed mounting screws are standard on double cylinder functions.
• Deadbolt: 1" (25.40mm) throw, solid steel deadbolt with hardened, free spinning, steel pin & insert.
• Backset: 2-3/8" (60.32mm), 2-3/4" (69.85mm)
• Deadbolt Fronts:
• 2-1/4" (57.15mm) x 1" (25.40mm) standard for 2-3/8" (60.32mm) backset
• 2-1/4" (57.15mm) x 1-1/8" (28.57mm) standard for 2-3/4" (69.85mm) backset
• Drive-in Deadbolts are available
• Doors: 1-3/8" (34.925mm) to 1-3/4" (44.45mm) thick standard
• Strikes: Supplied standard with the #346 wood frame strike and BX91D strike reinforcement
• The #345 metal frame strike is optional
• Handing: All functions are reversible
• Cylinder:
• Standard–Solid brass, Arrow "A" keyway, 6 pin cylinder. Supplied with two nickel silver keys
• Available in Schlage CS keyway and other competitive keyways
• Cylinder Options:
• Accepts 6 or 7 pin, small format
• Interchangeable cores
• Supplied less cores
• Will accept Best™ or Falcon™ type cores (except the E41)

Certification:

• ANSI A156.5, Auxiliary Locks, Grade 1
• Underwriters Laboratories (UL and CUL) listed for use on 20 minute fire doors when used in conjunction with a rated primary latching device

Finishes:

• 605/US3/03 - Bright Brass
• 606/US4/04 - Satin Brass
• 609/US5/05A - Antique Brass
• 612/US10/10 - Satin Bronze
• 613/US10B/10B - Dark Oxide Bronze, Oil Rubbed
• 625/US26/26 - Bright Chromium Plated
• 626/US26D/26D - Satin Chromium Plated

Features

• Drive-in Deadbolts are available
• Cylinder Options:
• Will accept Best™ or Falcon™ type cores (except the E41)
• 2-1/4" (57.15mm) x 1" (25.40mm) standard for 2-3/8" (60.32mm) backset
• Cylinder:
• Doors: 1-3/8" (34.925mm) to 1-3/4" (44.45mm) thick standard
• Deadbolt Fronts:
• Standard–Solid brass, Arrow "A" keyway, 6 pin cylinder. Supplied with two nickel silver keys
• Deadbolt: 1" (25.40mm) throw, solid steel deadbolt with hardened, free spinning, steel pin & insert.
• Handing: All functions are reversible
• Backset: 2-3/8" (60.32mm), 2-3/4" (69.85mm)
• The #345 metal frame strike is optional
• Strikes: Supplied standard with the #346 wood frame strike and BX91D strike reinforcement
• Housing: Two-piece housing, with free-spinning outer ring to prevent wrenching. Concealed mounting screws are standard on double cylinder functions.
• Interchangeable cores
• Accepts 6 or 7 pin, small format
• Supplied less cores
• 2-1/4" (57.15mm) x 1-1/8" (28.57mm) standard for 2-3/4" (69.85mm) backset
• Available in Schlage CS keyway and other competitive keyways
