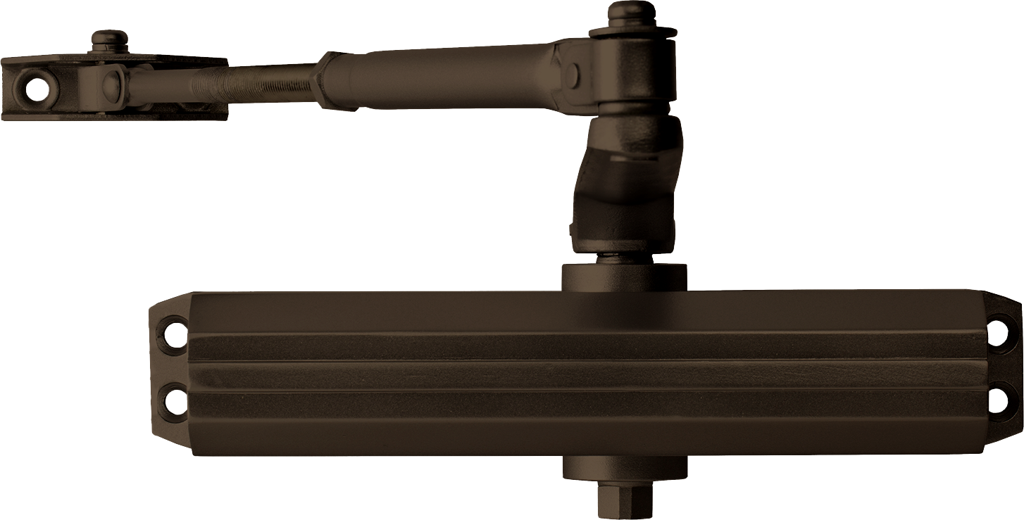

Arrow Lock DCN314-DKBZ Surface Door Closer, Less Cover, Adjustable Spring 1-4, Grade 1, Dark Bronze

Arrow Lock Company DCN314-DKBZ Surface Door Closer is an exceptional choice for those seeking a dependable and economical door closing solution. Designed to meet the needs of retail and office environments, this door closer combines convenience with enhanced security. Its durable cast aluminum body ensures longevity, while the painted dark bronze finish adds an appealing aesthetic touch. This model features a non-handed design, allowing for versatile installation options, including regular, top jamb, and parallel arm mounts. The adjustable spring mechanism accommodates door sizes with a thickness of 1-3/4", and the two non-critical adjusting valves enable precise control over the closing speed, ensuring smooth operation. Additionally, the backcheck intensity valve provides extra protection against slamming, enhancing safety for both users and the door itself. Certified to ANSI/BHMA A156.4, Grade 1 standards, the DCN314-DKBZ is UL and ULC listed, ensuring it meets rigorous safety requirements. A 10-year limited warranty further underscores its reliability. For those desiring a full plastic cover, it is available separately, offering additional options for customization. With its robust construction and thoughtful design, the Arrow Lock Company DCN314-DKBZ is a practical investment for any building professional or knowledgeable homeowner.

Surface Door Closer, Less Cover, Regular/Parallel Arm (Tri-Pack), Adjustable Spring 1- 4, Grade 1, 690/DKBZ Painted Dark Bronze

The DCN300 series surface applied door closers are an economical value for customers requiring convenience and security in an affordable package. They are ideally suited for retail or office buildings.

Features:

• Full plastic cover available (sold separately)
• Two non-critical adjusting valves (sweep and latch) control closing speed
• Supplied with fully threaded wood screws, machine screws and thru-bolts for 1-3/4" thick doors
• Non-handed for regular, top jamb and parallel arm mount applications
• Backcheck intensity valve
• 10-year limited warranty

Specifications:

• Body Material: Cast aluminum
• Door Thickness (Standard): 1 3/4"
• Handing: Non-handed
• Minimum Door Thickness: 1 3/4"
• UL Listed: Yes
• ULC Listed: Yes
• Certifications: ANSI/BHMA A156.4, grade 1

Models:

• DCN314, DCN325, DCN304, DCN305:
• Mounting Type: Top jamb
• Provides the best alternative to the regular arm application
• Must be sufficient frame face and/or ceiling clearance for this application
• Provides the best door control for doors in exterior walls that swing out of a building
• DCN314, DCN325, DCN304, DCN305:
• Mounting Type: Regular arm
• Most power-efficient application for a door closer
• Sufficient frame, door and/or ceiling clearance must be considered
• DCN325, DCN304, DCN305:
• Mounting Type: Parallel arm
• Provides the most appealing design appearance for a surface-mounted door closer having a double lever arm
• In the closed position, there is very little or no hardware projecting beyond the frame face in most situations

Finishes:

• 689/AL - Aluminum
• 690/DBZ - Dark bronze
• 693/BLK - Black
