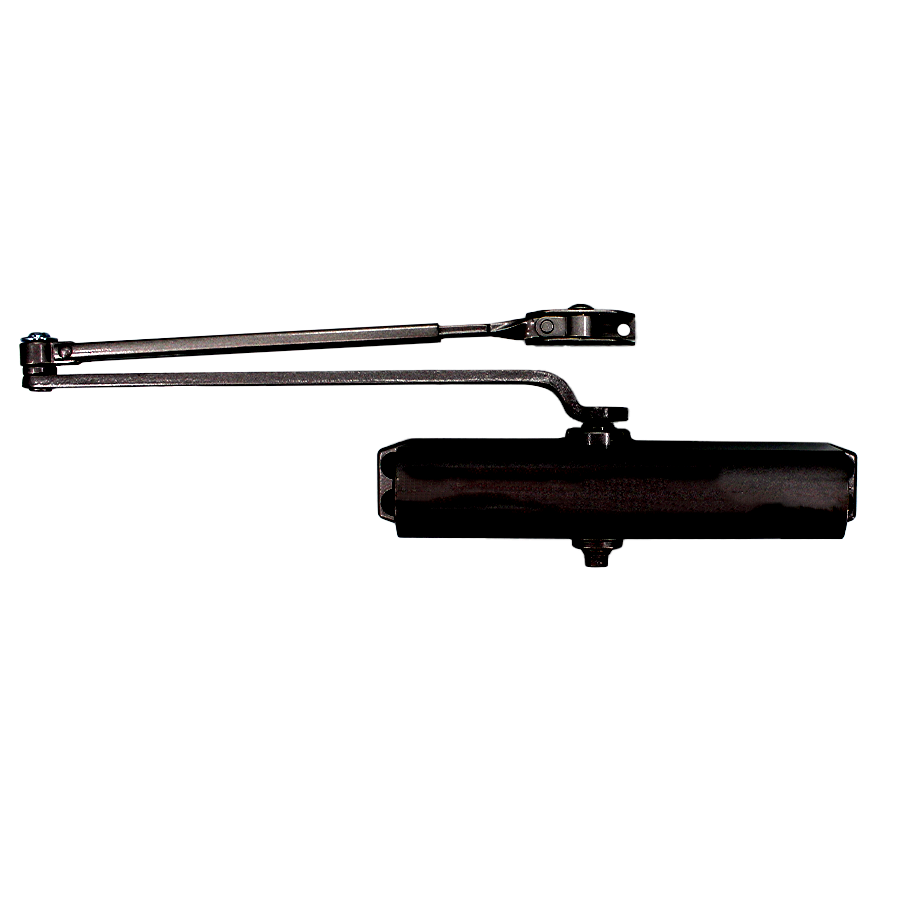

Arrow Lock DCN325-693 Surface Door Closer, Less Cover, Adjustable Spring, Grade 1, Black Powder Coat

Arrow Lock Company DCN325-693 Surface Door Closer is designed for those seeking a blend of affordability and reliable performance. This versatile door closer is perfect for retail and office environments, ensuring both security and convenience. Engineered with a cast aluminum body, it meets stringent ANSI/BHMA A156.4, grade 1 standards, making it a durable choice for high-traffic areas. The DCN325-693 features non-handed installation, allowing for regular, top jamb, and parallel arm mount applications. Two non-critical adjusting valves control the closing speed, while a backcheck intensity valve enhances durability by preventing door slamming. The closer is suitable for 1-3/4" thick doors and comes with fully threaded wood screws, machine screws, and thru-bolts for easy installation. Available in an elegant black powder coat finish, this model delivers aesthetic appeal along with function. While a full plastic cover is sold separately, the closer’s design minimizes hardware projection, maintaining a clean look. With a 10-year limited warranty, the Arrow Lock Company DCN325-693 is a reliable choice for professionals who demand quality without compromise. Whether for new installations or replacements, this door closer promises effective door control and longevity.

Surface Door Closer, Less Cover, Regular/Parallel Arm (Tri-Pack), Adjustable Spring 2- 5, Grade 1, 693/BLK Black Powder Coat

The DCN300 series surface applied door closers are an economical value for customers requiring convenience and security in an affordable package. They are ideally suited for retail or office buildings.

Features:

• Full plastic cover available (sold separately)
• Two non-critical adjusting valves (sweep and latch) control closing speed
• Supplied with fully threaded wood screws, machine screws and thru-bolts for 1-3/4" thick doors
• Non-handed for regular, top jamb and parallel arm mount applications
• Backcheck intensity valve
• 10-year limited warranty

Specifications:

• Body Material: Cast aluminum
• Door Thickness (Standard): 1 3/4"
• Handing: Non-handed
• Minimum Door Thickness: 1 3/4"
• UL Listed: Yes
• ULC Listed: Yes
• Certifications: ANSI/BHMA A156.4, grade 1

Models:

• DCN314, DCN325, DCN304, DCN305:
• Mounting Type: Top jamb
• Provides the best alternative to the regular arm application
• Must be sufficient frame face and/or ceiling clearance for this application
• Provides the best door control for doors in exterior walls that swing out of a building
• DCN314, DCN325, DCN304, DCN305:
• Mounting Type: Regular arm
• Most power-efficient application for a door closer
• Sufficient frame, door and/or ceiling clearance must be considered
• DCN325, DCN304, DCN305:
• Mounting Type: Parallel arm
• Provides the most appealing design appearance for a surface-mounted door closer having a double lever arm
• In the closed position, there is very little or no hardware projecting beyond the frame face in most situations

Finishes:

• 689/AL - Aluminum
• 690/DBZ - Dark bronze
• 693/BLK - Black
