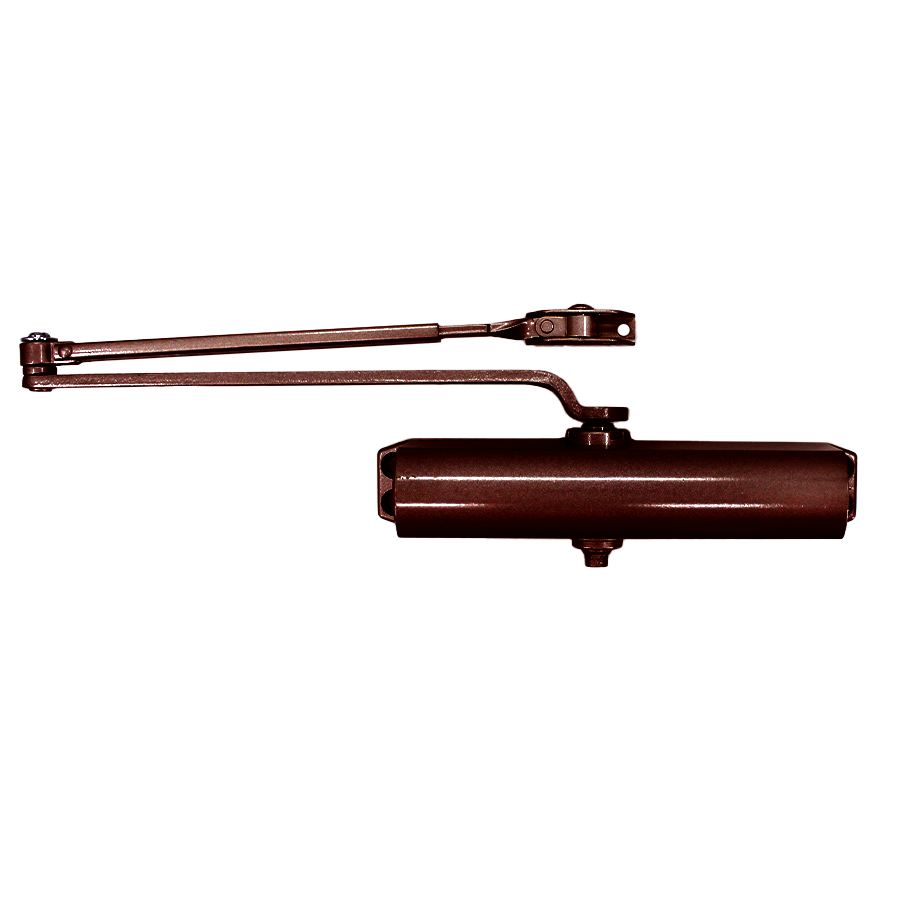

Arrow Lock DCN325-DKBZ Surface Door Closer, Less Cover, Adjustable Spring 2-5, Grade 1, Dark Bronze

Arrow Lock Company DCN325-DKBZ Surface Door Closer is designed to provide exceptional convenience and security for retail and office buildings without breaking the bank. This economical door closer features a durable cast aluminum body, ensuring long-lasting performance while meeting ANSI/BHMA A156.4 Grade 1 certification standards. The DCN325-DKBZ is equipped with adjustable spring strength settings ranging from 2 to 5, allowing for customizable closing speeds that cater to varying needs. It includes two non-critical adjusting valves for precise control over the sweep and latch speeds. This model is non-handed, making it flexible for regular, top jamb, and parallel arm mount applications. Installation is straightforward with the supplied fully threaded wood screws, machine screws, and thru-bolts, suitable for 1-3/4" thick doors. The backcheck intensity valve enhances safety by preventing damage to the door and frame during forceful operations. For added aesthetic appeal, a full plastic cover is available separately. With a 10-year limited warranty and UL/ULC listings, the Arrow Lock Company DCN325-DKBZ is an ideal choice for those seeking reliable door control in a sleek and unobtrusive design. Trust in Arrow Lock to secure your spaces efficiently and elegantly.

Surface Door Closer, Less Cover, Regular/Parallel Arm (Tri-Pack), Adjustable Spring 2- 5, Grade 1, 690/DKBZ Painted Dark Bronze

The DCN300 series surface applied door closers are an economical value for customers requiring convenience and security in an affordable package. They are ideally suited for retail or office buildings.

Features:

• Full plastic cover available (sold separately)
• Two non-critical adjusting valves (sweep and latch) control closing speed
• Supplied with fully threaded wood screws, machine screws and thru-bolts for 1-3/4" thick doors
• Non-handed for regular, top jamb and parallel arm mount applications
• Backcheck intensity valve
• 10-year limited warranty

Specifications:

• Body Material: Cast aluminum
• Door Thickness (Standard): 1 3/4"
• Handing: Non-handed
• Minimum Door Thickness: 1 3/4"
• UL Listed: Yes
• ULC Listed: Yes
• Certifications: ANSI/BHMA A156.4, grade 1

Models:

• DCN314, DCN325, DCN304, DCN305:
• Mounting Type: Top jamb
• Provides the best alternative to the regular arm application
• Must be sufficient frame face and/or ceiling clearance for this application
• Provides the best door control for doors in exterior walls that swing out of a building
• DCN314, DCN325, DCN304, DCN305:
• Mounting Type: Regular arm
• Most power-efficient application for a door closer
• Sufficient frame, door and/or ceiling clearance must be considered
• DCN325, DCN304, DCN305:
• Mounting Type: Parallel arm
• Provides the most appealing design appearance for a surface-mounted door closer having a double lever arm
• In the closed position, there is very little or no hardware projecting beyond the frame face in most situations

Finishes:

• 689/AL - Aluminum
• 690/DBZ - Dark bronze
• 693/BLK - Black
