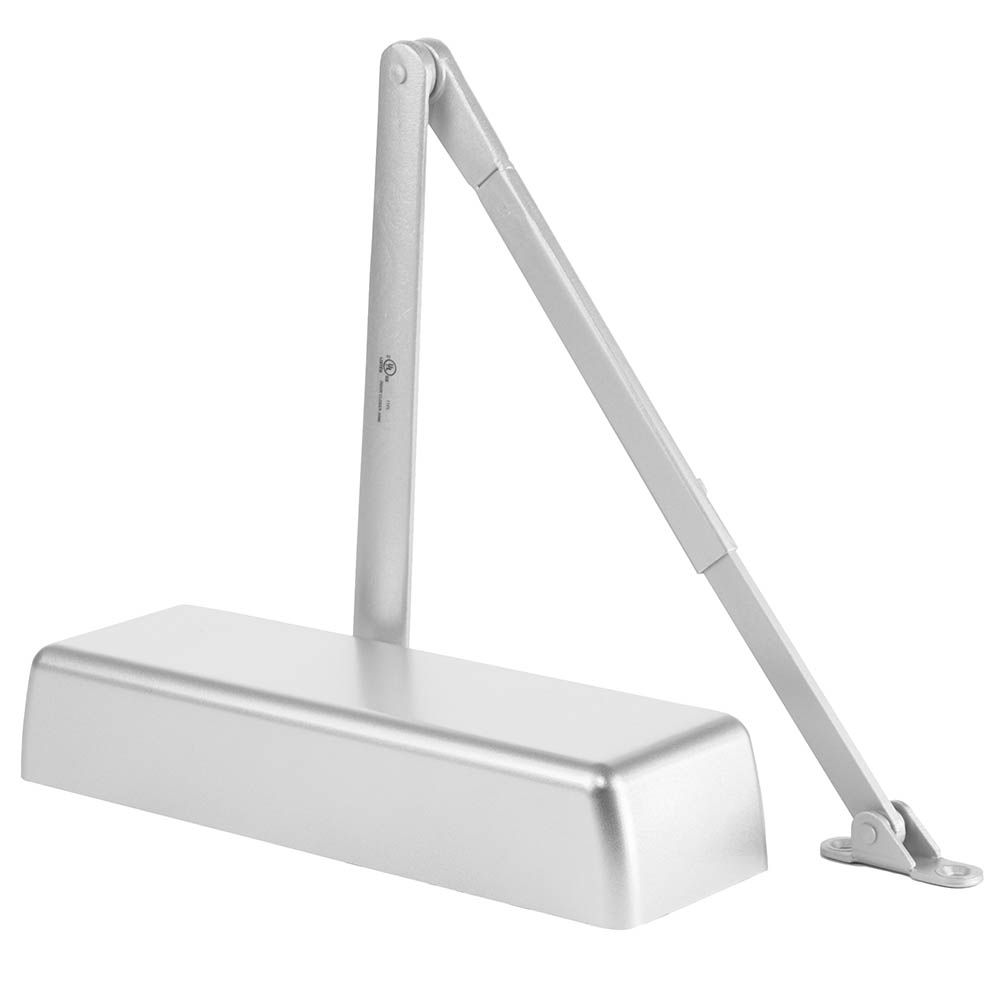

Arrow Lock DCN516 689 Tri-Pack Door Closer

Arrow Lock DCN516 689 Door Closer - Tri Pack is a Grade 1 regular surface closer designed for high-traffic environments, ensuring durability and reliability. This heavy-duty closer features a double lever arm with a PA bracket, allowing for versatile installation on both push and pull sides. It accommodates adjustable spring sizes from 1 to 6, making it adaptable for various door weights and usage scenarios. Constructed with a robust cast iron body and hardened steel rack and pinion, the DCN516 is engineered to withstand the rigors of institutional use. The unit includes non-critical adjusting valves for sweep and latch closing speeds, as well as a backcheck intensity valve to prevent damage from slamming doors. Its all-weather fluid ensures smooth operation even in extreme temperatures. The stylish aluminum finish (689) adds an aesthetic appeal, while the full plastic cover provides additional protection. With a non-handed design, installation is simplified for regular, top jamb, or parallel arm configurations. This closer meets UL/cUL and ANSI A156.4 standards, making it compliant with safety regulations. Backed by a 10-year limited warranty, the Arrow Lock DCN516 is a dependable choice for any commercial application.

Door Closer - Tri Pack

Grade 1 Regular (Double Lever) Surface Closer, Hydraulic Tri Mount Push or Pull Side Mounting, Double Lever Arm with PA Bracket, Plastic Cover, Size 1 to 6, Aluminum Painted Finish, Non-Handed

The Arrow DCN500 Series Heavy Duty Surface Applied Door Closers are ideal for Institutions or other high traffic applications. The DCN500 is designed for end users looking for value and versatility in a rugged design making this series suitable for a wide variety of applications.

The Arrow DCN500 Series Heavy Duty Surface Door Closers are ideal for Institutions or other high traffic applications.

The DCN500 is designed for end users looking for value and versatility in a rugged design making this Series suitable for a wide variety of applications

Features:

• Heavy duty cast iron body.
• Hardened steel rack and pinion.
• High tensile steel springs.
• Staked valves
• Two non-critical adjusting valves sweep and latch) control closing speed.
• Backcheck intensity valve.
• All temperature fluid.
• Full plastic cover standard.
• Non-handed for regular, top jamb and parallel arm mount applications.
• Supplied with fully threaded self reaming/tapping screws, machine nuts and thru-bolts for 1-3/4" thick doors.
• DCN5xx-1 Series door closers are supplied with a hold open arm.
• DCN5xx-2 has a heavy duty parallel arm with a stop feature for door openings between 90° and 110°.
• DCN5xx-3 has a heavy duty parallel arm with a stop and thumb turn hold open feature for door openings between 90° and 110°.
• Packaging: one per box and four boxes per carton.
• 10 year limited warranty.

Finishes:

• Aluminum (689), Specify AL
• Dark Bronze (690), Specify DBZ

Sizes (Adjustable):

• DCN516 closers are adjustable for spring sizes 1 through 6

Certification:

• UL/cUL listed.
• UL10C listed for positive pressure to comply with UBC-72 (1997).
• Meets the requirements of ANSI A156.4 and ANSI ICC A117.1.
