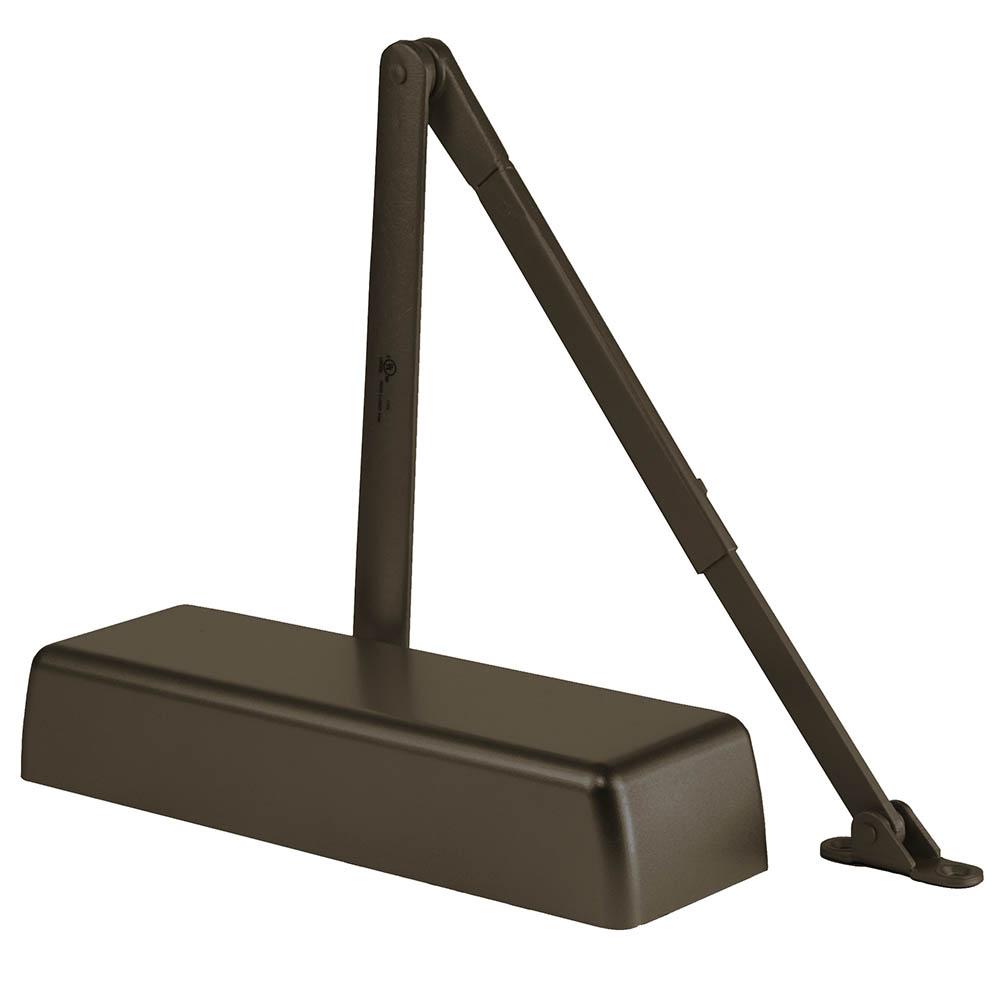

Arrow Lock DCN516 690 Tri-Pack Door Closer

Arrow Lock DCN516 690 Door Closer - Tri Pack offers a robust solution for high-traffic environments, combining durability with versatility. This Grade 1 Regular (Double Lever) Surface Closer is designed for both push and pull side mounting, making it suitable for various door applications. The hydraulic tri-mount feature allows for easy installation on regular, top jamb, and parallel arm mounts. Constructed with a heavy-duty cast iron body and hardened steel rack and pinion, the DCN516 ensures reliable performance under rigorous use. High tensile steel springs and staked valves enhance its longevity while two adjustable valves control closing speed for optimal function. The backcheck intensity valve adds an extra layer of safety, and the all-temperature fluid ensures seamless operation in diverse conditions. With a non-handed design and a dark bronze painted finish, this closer is both aesthetically pleasing and practical. It comes with a 10-year limited warranty, underscoring its quality. The packaging includes all necessary hardware for installation on 1-3/4" thick doors. UL/cUL listed and compliant with ANSI A156.4 and ICC A117.1 standards, the Arrow DCN516 is an ideal choice for commercial applications where reliability is paramount.

Door Closer - Tri Pack

Grade 1 Regular (Double Lever) Surface Closer, Hydraulic Tri Mount Push or Pull Side Mounting, Double Lever Arm with PA Bracket, Plastic Cover, Size 1 to 6, Dark Bronze Painted Finish, Non-Handed

The Arrow DCN500 Series Heavy Duty Surface Applied Door Closers are ideal for Institutions or other high traffic applications. The DCN500 is designed for end users looking for value and versatility in a rugged design making this series suitable for a wide variety of applications.

The Arrow DCN500 Series Heavy Duty Surface Door Closers are ideal for Institutions or other high traffic applications.

The DCN500 is designed for end users looking for value and versatility in a rugged design making this Series suitable for a wide variety of applications

Features:

• Heavy duty cast iron body.
• Hardened steel rack and pinion.
• High tensile steel springs.
• Staked valves
• Two non-critical adjusting valves sweep and latch) control closing speed.
• Backcheck intensity valve.
• All temperature fluid.
• Full plastic cover standard.
• Non-handed for regular, top jamb and parallel arm mount applications.
• Supplied with fully threaded self reaming/tapping screws, machine nuts and thru-bolts for 1-3/4" thick doors.
• DCN5xx-1 Series door closers are supplied with a hold open arm.
• DCN5xx-2 has a heavy duty parallel arm with a stop feature for door openings between 90° and 110°.
• DCN5xx-3 has a heavy duty parallel arm with a stop and thumb turn hold open feature for door openings between 90° and 110°.
• Packaging: one per box and four boxes per carton.
• 10 year limited warranty.

Finishes:

• Aluminum (689), Specify AL
• Dark Bronze (690), Specify DBZ

Sizes (Adjustable):

• DCN516 closers are adjustable for spring sizes 1 through 6

Certification:

• UL/cUL listed.
• UL10C listed for positive pressure to comply with UBC-72 (1997).
• Meets the requirements of ANSI A156.4 and ANSI ICC A117.1.
