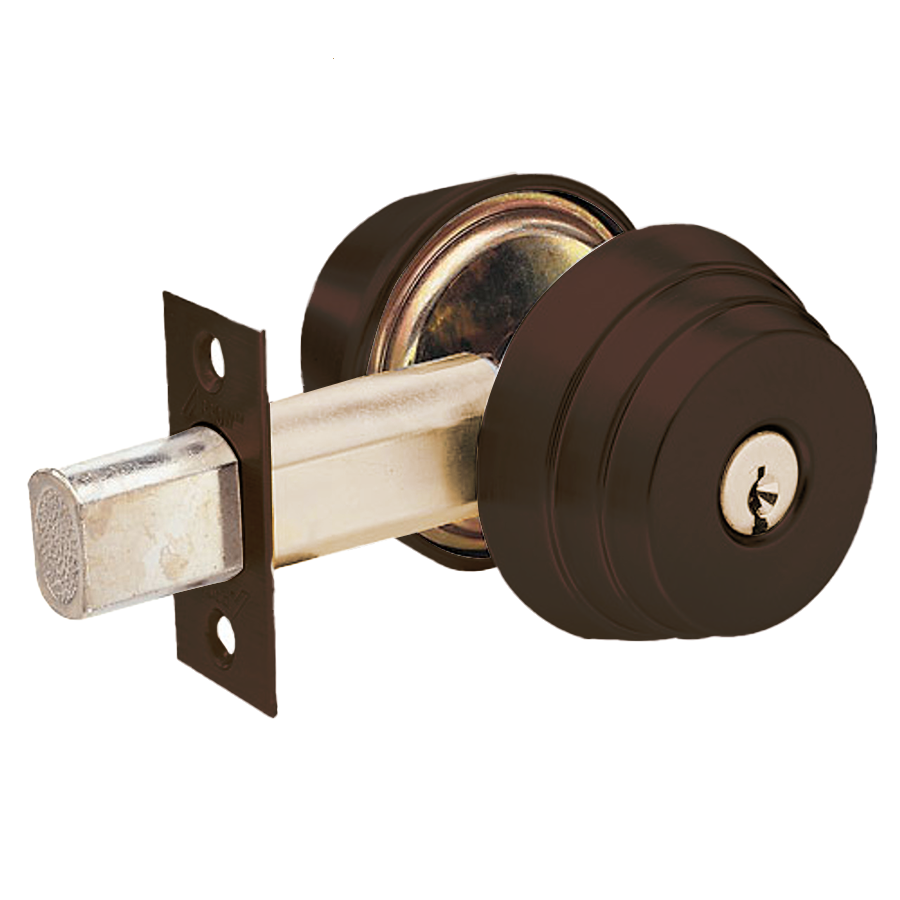

Arrow Lock E61-10B-CS-2 3/8 BS Schlage Deadbolt Single Cylinder, C Keyway, 2-3/8" Backset, Grade 2, Oil Rubbed Bronze

Arrow Lock Company E61-10B-CS-2 3/8 BS Deadbolt Single Cylinder is engineered for security and convenience, making it an excellent choice for residential and commercial applications. This Grade 2 deadbolt features a robust 1" solid steel throw, complemented by a hardened, free-spinning steel pin insert that enhances its resistance to tampering. The two-piece housing includes a free-spinning outer ring designed to thwart wrenching attempts, while concealed mounting screws provide an additional layer of security. Designed to accommodate doors with a thickness ranging from 1-3/8" to 1-3/4", the deadbolt is compatible with a 2-3/8" backset, ensuring a fit for most standard doors. The E61 model is supplied with two 1/4" steel thru-bolts for optimal anchoring. It is equipped with a Schlage C keyway and accepts 6 or 7 pin small format interchangeable cores, providing flexibility for keying options. The E61-10B-CS-2 is UL and cUL listed for use on 3-hour fire doors, making it a dependable choice for high-security settings. With its oil-rubbed bronze finish, this deadbolt not only offers superior protection but also enhances the aesthetic appeal of your entryways. Trust Arrow Lock Company for quality that stands the test of time.

Deadbolt Single Cylinder, Schlage C Keyway, 2-3/8in Backset, Grade 2, 613/US10B Oil Rubbed Bronze

Arrow E Series deadlocks are unsurpassed for value, quality and durability. Our tamper resistant rotating wrench-proof collar, steel deadbolt with hardened steel pin insert and concealed screws and security Features: that have made the E Series the most specified deadlock in its class.

Specifications:

• Housing: Two-piece housing, with free spinning outer ring to prevent wrenching.
• Concealed mounting screws standard on double cylinder functions.
• Thru-bolting: Supplied with two 1/4" steel thru-bolts.
• Deadbolt: 1" throw, solid steel deadbolt with hardened, free spinning, steel pin insert.
• Backset: 2-3/8", 2-3/4"
• Deadbolt Fronts:
• 2-1/4" x 1" standard for 2-3/8" backset
• 2-1/4" x 1-1/8" standard for 2-3/4" backset
• Drive-in Deadbolts are available.
• Doors: 1-3/8" to 1-3/4" thick standard.
• Strikes: Supplied standard with the #346 wood frame strike.
• The #345 metal frame strike is optional.
• Handing: All functions are reversible.
• Cylinder, Standard: Solid brass, Arrow "A" keyway, drilled for 6 pins, pinned to 5.
• E41 and E42 low profile Deadbolts are supplied with 5-pin cylinders. (supplied with two brass keys.
• Available in Schlage CS keyway and other competitive keyways.
• Cylinder Options: Accepts 6 or 7 pin, small format interchangeable cores.
• Supplied less cores
• Will accept Best or Falcon type cores.

Certification:

• ANSI A156.5, Auxiliary Locks, Grade 2
• Underwriters Laboratories (UL an CUL) listed for use on 3 hour fire doors when used in conjunction with a rated primary latching device.

Functions:

• E60: Exit
• E41: Single Cylinder
• E61: Single Cylinder
• DB61: Single Cylinder
• E42: Double Cylinder
• E62: Double Cylinder
• DB62: Double Cylinder
• E63: Single Cylinder
• E64: Classroom
• E71-IC: Single Cylinder with Concealed Mounting Screws (IC Only)
• E74-IC: Classroom with Concealed Mounting Screws (IC Only)

Finishes:

• 605/03 - Bright Brass
• 606/04 - Satin Brass
• 609/05A - Antique Brass
• 612/10 - Satin Bronze
• 613/10B - Dark Oxide Bronze, Oil Rubbed
• 619/15 - Nickel Plated
• 625/26 - Bright Chrome
• 626/26D - Satin Chrome

Features

• Concealed mounting screws standard on double cylinder functions.
• The #345 metal frame strike is optional.
• Handing: All functions are reversible.
• Will accept Best or Falcon type cores.
• 2-1/4" x 1-1/8" standard for 2-3/4" backset
• E41 and E42 low profile Deadbolts are supplied with 5-pin cylinders. (supplied with two brass keys.
• Deadbolt Fronts:
• Deadbolt: 1" throw, solid steel deadbolt with hardened, free spinning, steel pin insert.
• Cylinder, Standard: Solid brass, Arrow "A" keyway, drilled for 6 pins, pinned to 5.
• Strikes: Supplied standard with the #346 wood frame strike.
• Cylinder Options: Accepts 6 or 7 pin, small format interchangeable cores.
• Drive-in Deadbolts are available.
• Thru-bolting: Supplied with two 1/4" steel thru-bolts.
• Backset: 2-3/8", 2-3/4"
• Available in Schlage CS keyway and other competitive keyways.
• 2-1/4" x 1" standard for 2-3/8" backset
• Doors: 1-3/8" to 1-3/4" thick standard.
• Housing: Two-piece housing, with free spinning outer ring to prevent wrenching.
• Supplied less cores
