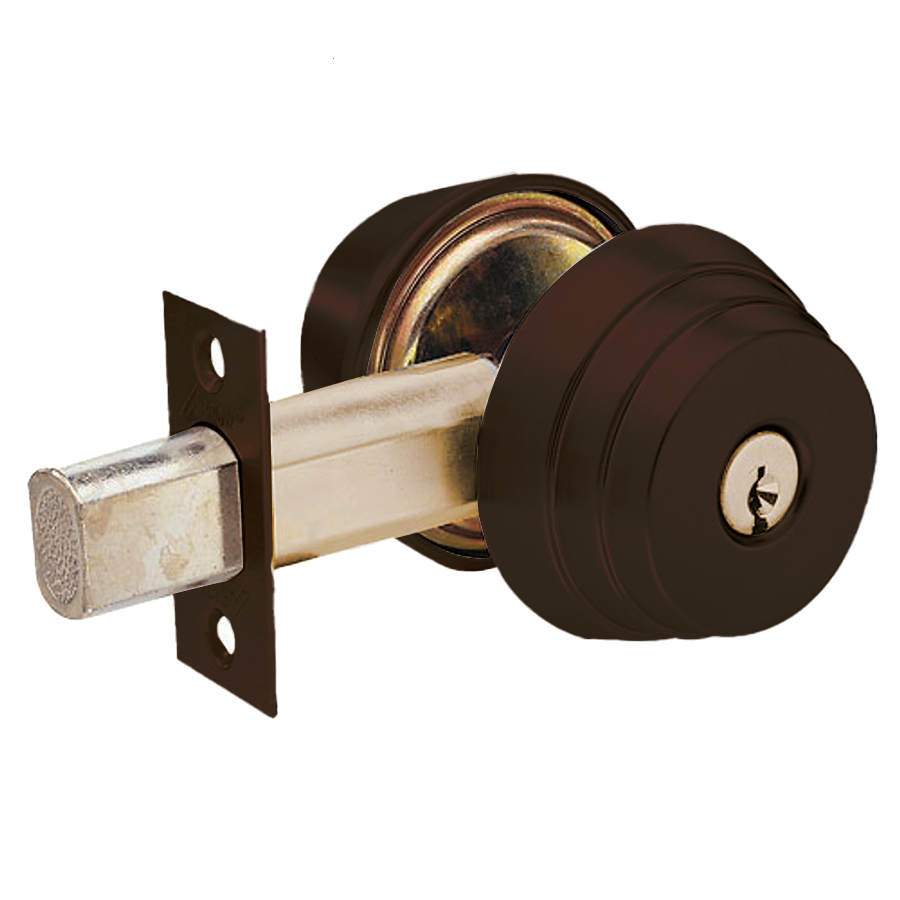

Arrow Lock E61-613E-CS-2 3/8 BS Schlage Deadbolt Single Cylinder, C Keyway, 2-3/8" Backset, Grade 2, Oil Rubbed Bronze

Arrow Lock Company E61-613E-CS-2 3/8 BS Deadbolt Single Cylinder is engineered for top-tier security and longevity, making it an ideal choice for commercial applications. This Grade 2 deadbolt features a Schlage C keyway and is finished in an elegant oil rubbed bronze, enhancing both aesthetics and function. Designed with a robust steel deadbolt and a hardened steel pin insert, the E61-613E-CS-2 ensures maximum resistance against tampering. Its unique tamper-resistant rotating wrench-proof collar, coupled with concealed mounting screws, offers an additional layer of security. The deadbolt has a 1-inch throw, providing solid locking power, while the two-piece housing includes a free-spinning outer ring to further thwart unauthorized access. Installation is straightforward, as the deadbolt accommodates standard door thicknesses of 1-3/8" to 1-3/4". It is compatible with 2-3/8" and 2-3/4" backsets, giving you flexibility for various door types. The E61-613E-CS-2 comes with a one-year mechanical warranty, assuring you of its quality and reliability. With certifications from ANSI/BHMA A156.36, this deadbolt stands out as a dependable choice for those seeking peace of mind in securing their spaces. Elevate your security with the Arrow Lock Company E61-613E-CS-2.

Deadbolt Single Cylinder, Schlage C Keyway, 2-3/8in Backset, Grade 2, 613E/US10BE Oil Rubbed Bronze

Arrow E series deadlocks are unsurpassed for value, quality and durability. Our tamper resistant rotating wrench-proof collar, steel deadbolt with hardened steel pin insert and concealed screws and security features that have made the E series the most specified deadlock in its class.

Features:

• Engineered for strength and durability in commercial applications
• Strength and security
• Tamper resistant rotating wrench-proof collar, steel deadbolt with hardened steel pin insert and concealed screws
• 1-year mechanical warranty

Specifications:

• Housing: Two-piece housing, with free spinning outer ring to prevent wrenching. Concealed mounting screws standard on double cylinder functions.
• Thru-bolting: Supplied with two 1/4" (6.35mm) steel thru-bolts.
• Deadbolt: 1" (25.40mm) throw, solid steel deadbolt with hardened, free spinning, steel pin insert.
• Backset: 2-3/8" (60.32mm), 2-3/4" (69.85mm)
• Deadbolt Fronts: 2-1/4" (57.15mm) x 1" (25.40mm) standard for 2-3/8" (60.32mm) backset, 2-1/4" (57.15mm) x 1-1/8" (28.57mm) standard for 2-3/4" (69.85mm) backset. Drive-in deadbolts are available.
• Doors: 1-3/8" (34.925mm) to 1-3/4" (44.45mm) thick standard.
• Strikes: Supplied standard with the #346 wood frame strike. The #345 metal frame strike is optional.
• Handing: All Functions are reversible.
• Cylinder, Standard: Solid brass, Arrow "A" keyway, drilled for 6 pins, pinned to 5. E41 and E42 low profile deadbolts are supplied with 5-pin cylinders. Supplied with two brass keys. Available in Schlage CS keyway and other competitive keyways.
• Cylinder Options: Accepts 6 or 7 pin, small format, interchangeable cores. Supplied less cores. Will accept Best or Falcon type cores.
• Certifications: ANSI/BHMA A156.36, grade 2

Non-Cylinder Functions:

• E50: Thumbturn x Blank - Occupancy indicator
• E60: Thumbturn x Indicator
• ANSI No. E01112
• By thumbturn inside, emergency override key outside.

Single Cylinder Functions:

• E41: Cylinder x Thumbturn - By thumbturn inside; cylinder outside
• E61: Single Cylinder
• ANSI No. E0152
• By key outside and thumbturn inside
• E63: Cylinder x Blank
• ANSI No. E0162
• By key one side only; opposite side blank
• E64: Classroom
• ANSI No. E0172
• By key outside and by thumbturn inside
• E71-IC: Single Cylinder
• ANSI No. E0152
• By key outside and thumbturn inside
• E74-IC: Classroom
• ANSI No. E0172
• By key outside and by thumbturn inside

Double Cylinder Functions:

• E42: Double Cylinder - By key either side
• E62: Double Cylinder
• ANSI No. E0142
• By key either side

Finishes:

• 605/03 - Bright brass
• 606/04 - Satin brass
• 609/05A - Antique brass
• 612/10 - Satin bronze
• 613/10B - Dark oxide bronze, oil rubbed
• 619/15 - Nickel plated
• 625/26 - Bright chrome
• 626/26D - Satin chrome
