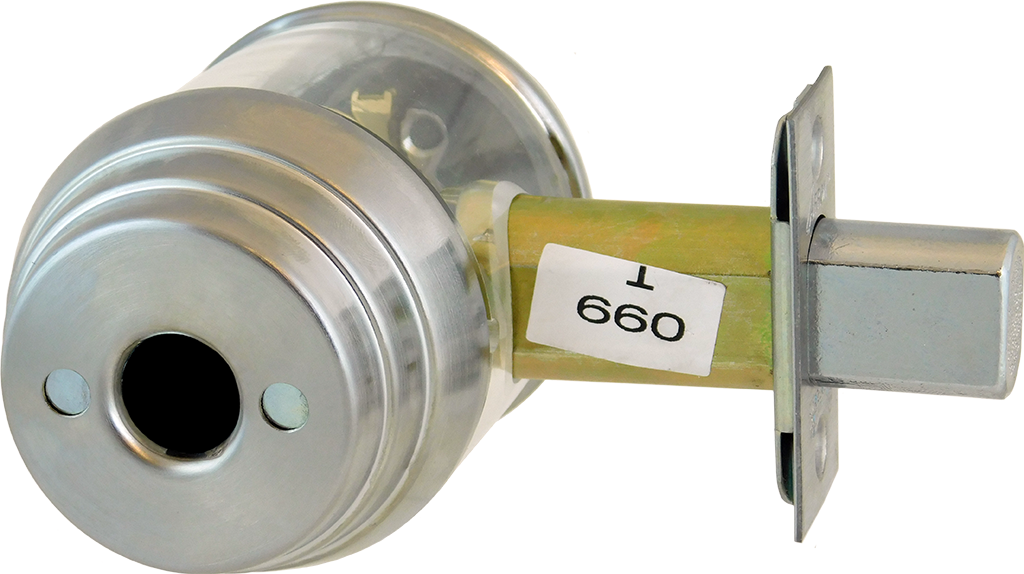

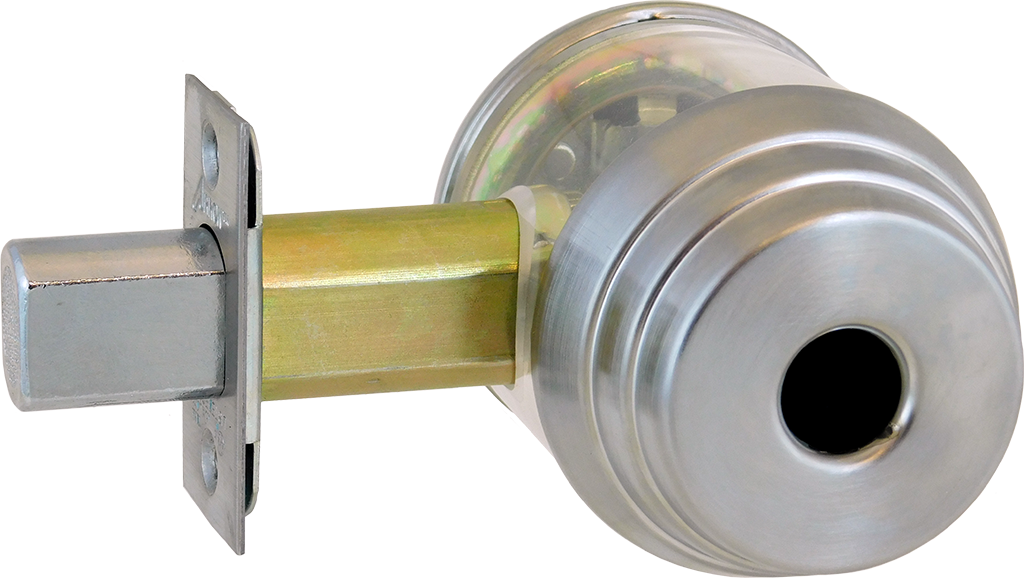

Arrow Lock E62-26D-LC-2 3/4 BS Deadbolt Double Cylinder, Less Cylinder, 2-3/4in Backset, Grade 2, Satin Chrome

Arrow Lock Company E62-26D-LC-2 3/4 BS Deadbolt Double Cylinder is engineered for superior security and reliability. This Grade 2 deadbolt features a robust design with a 1-inch throw solid steel deadbolt complemented by a hardened, free-spinning steel pin insert, ensuring tamper resistance against unauthorized access. The two-piece housing includes a free-spinning outer ring to thwart wrenching attempts, and concealed screws provide an additional layer of security. Designed for doors with a thickness ranging from 1-3/8 inches to 1-3/4 inches and compatible with backsets of 2-3/8 inches or 2-3/4 inches, this deadbolt offers flexible installation options. It includes standard wood frame strikes, with an optional metal frame strike available. The E62 model is field-reversible, catering to various handing requirements and simplifies installation. Certified to ANSI A156.5 standards and listed by Underwriters Laboratories for use on 3-hour fire doors, it is a reliable choice for commercial applications. The deadbolt is supplied less cylinder, allowing for customization with 6 or 7 pin cores, including options for Best or Falcon type cores. With its satin chrome finish, the Arrow E62-26D-LC-2 combines durability with a modern aesthetic, making it an excellent choice for securing your property.

Deadbolt Double Cylinder, Less Cylinder, 2-3/4in Backset, Grade 2, 626/US26D Satin Chrome

Arrow E Series deadlocks are unsurpassed for value, quality and durability. Our tamper resistant rotating wrench-proof collar, steel deadbolt with hardened steel pin insert and concealed screws and security Features: that have made the E Series the most specified deadlock in its class.

Specifications:

• Housing: Two-piece housing, with free spinning outer ring to prevent wrenching.
• Concealed mounting screws standard on double cylinder functions.
• Thru-bolting: Supplied with two 1/4" steel thru-bolts.
• Deadbolt: 1" throw, solid steel deadbolt with hardened, free spinning, steel pin insert.
• Backset: 2-3/8", 2-3/4"
• Deadbolt Fronts:
• 2-1/4" x 1" standard for 2-3/8" backset
• 2-1/4" x 1-1/8" standard for 2-3/4" backset
• Drive-in Deadbolts are available.
• Doors: 1-3/8" to 1-3/4" thick standard.
• Strikes: Supplied standard with the #346 wood frame strike.
• The #345 metal frame strike is optional.
• Handing: All functions are reversible.
• Cylinder, Standard: Solid brass, Arrow "A" keyway, drilled for 6 pins, pinned to 5.
• E41 and E42 low profile Deadbolts are supplied with 5-pin cylinders. (supplied with two brass keys.
• Available in Schlage CS keyway and other competitive keyways.
• Cylinder Options: Accepts 6 or 7 pin, small format interchangeable cores.
• Supplied less cores
• Will accept Best or Falcon type cores.

Certification:

• ANSI A156.5, Auxiliary Locks, Grade 2
• Underwriters Laboratories (UL an CUL) listed for use on 3 hour fire doors when used in conjunction with a rated primary latching device.

Functions:

• E60: Exit
• E41: Single Cylinder
• E61: Single Cylinder
• DB61: Single Cylinder
• E42: Double Cylinder
• E62: Double Cylinder
• DB62: Double Cylinder
• E63: Single Cylinder
• E64: Classroom
• E71-IC: Single Cylinder with Concealed Mounting Screws (IC Only)
• E74-IC: Classroom with Concealed Mounting Screws (IC Only)

Finishes:

• 605/03 - Bright Brass
• 606/04 - Satin Brass
• 609/05A - Antique Brass
• 612/10 - Satin Bronze
• 613/10B - Dark Oxide Bronze, Oil Rubbed
• 619/15 - Nickel Plated
• 625/26 - Bright Chrome
• 626/26D - Satin Chrome

Features

• Concealed mounting screws standard on double cylinder functions.
• The #345 metal frame strike is optional.
• Handing: All functions are reversible.
• Will accept Best or Falcon type cores.
• 2-1/4" x 1-1/8" standard for 2-3/4" backset
• E41 and E42 low profile Deadbolts are supplied with 5-pin cylinders. (supplied with two brass keys.
• Deadbolt Fronts:
• Deadbolt: 1" throw, solid steel deadbolt with hardened, free spinning, steel pin insert.
• Cylinder, Standard: Solid brass, Arrow "A" keyway, drilled for 6 pins, pinned to 5.
• Strikes: Supplied standard with the #346 wood frame strike.
• Cylinder Options: Accepts 6 or 7 pin, small format interchangeable cores.
• Drive-in Deadbolts are available.
• Thru-bolting: Supplied with two 1/4" steel thru-bolts.
• Backset: 2-3/8", 2-3/4"
• Available in Schlage CS keyway and other competitive keyways.
• 2-1/4" x 1" standard for 2-3/8" backset
• Doors: 1-3/8" to 1-3/4" thick standard.
• Housing: Two-piece housing, with free spinning outer ring to prevent wrenching.
• Supplied less cores

Resources

• Cut Sheet
