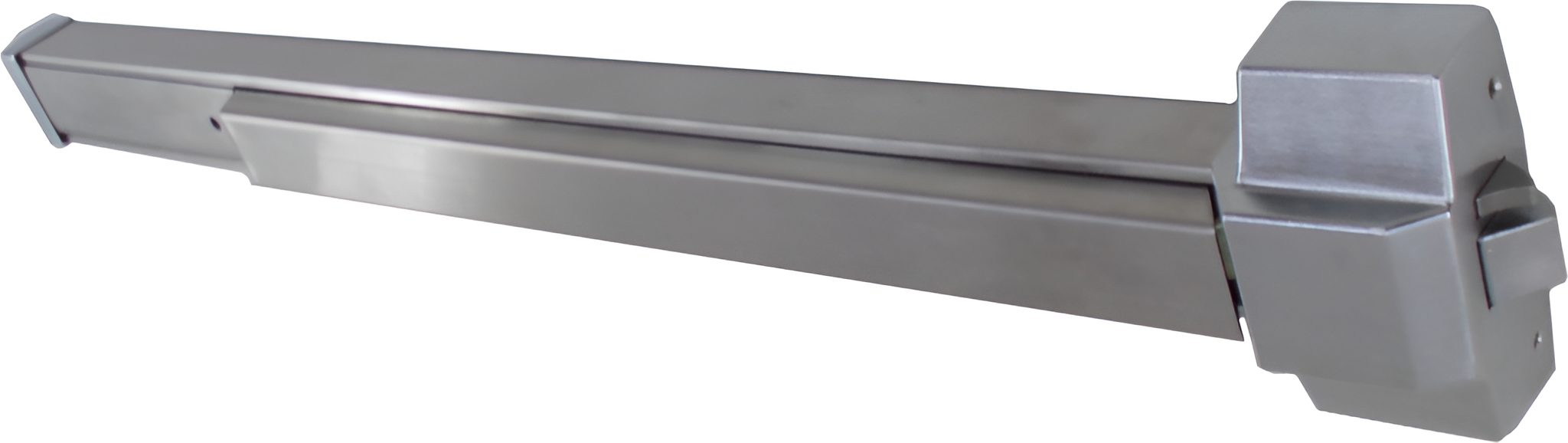

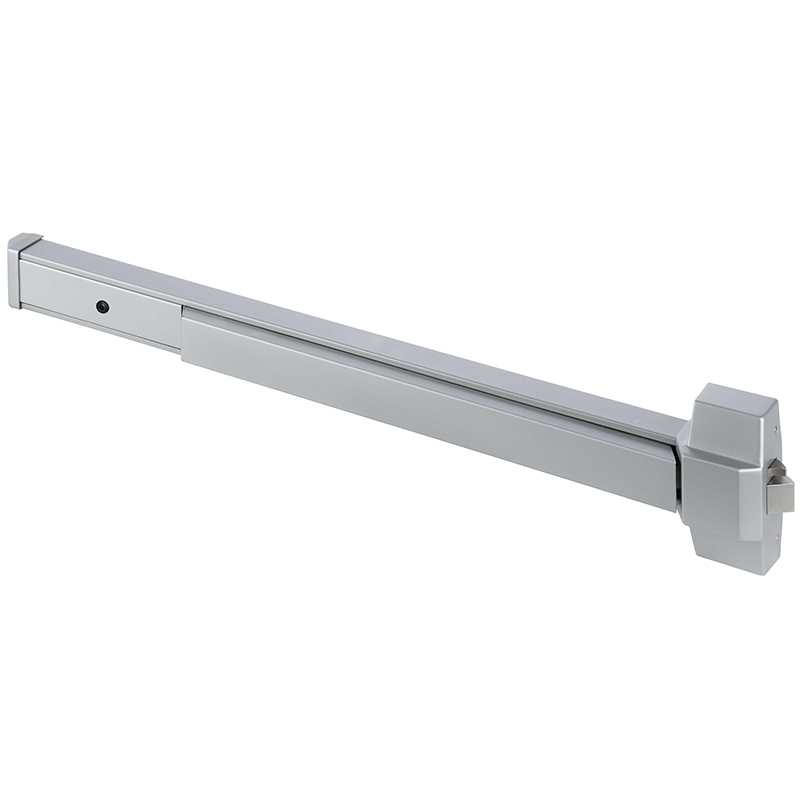

Arrow Lock ED910-36-630 Rim Exit Device, Hex Key Dogging, 36in, Grade 1, 630/US32D Satin Stainless Steel

Arrow Lock Company ED910-36-630 Rim Exit Device is an exceptional choice for those seeking reliability and durability in emergency exit solutions. This BHMA Grade 1 certified device is engineered to replace or upgrade existing exit hardware, making it suitable for various settings. With a robust chassis crafted from stamped steel and a cast zinc cover, it is built to withstand frequent use while ensuring safety. Designed for standard 1-3/4" doors, the ED910 accommodates door widths from 31" to 48", providing flexibility for different installations. The reversible handing allows for easy adaptation to either side of the door, while the hex key dogging feature enhances convenience by securing the exit device in the open position when needed. With a stainless steel latchbolt and a powder-coated steel rail assembly, this exit device promises long-lasting performance. The device is UL and CUL listed, meeting stringent accident hazard standards, and complies with the life safety code NFPA 101, ensuring peace of mind for building professionals and homeowners alike. Available in a sleek satin stainless steel finish, the Arrow ED910 is a stylish yet functional addition to any property. Backed by a generous 10-year warranty, it is a smart investment for enhancing safety and security.

Rim Exit Device, Hex Key Dogging, 36in, Grade 1, 630/US32D Satin Stainless Steel

The Arrow ED910 is a value exit device that is BHMA Grade 1 Certified. The ED910 is designed to replace or upgrade existing exit devices and comes with an extended 10 year warranty.

Features:

• Chassis: Stamped steel materials
• Chassis cover: Cast zinc
• Door Types: Fits 1-3/4" (44.5 mm) doors standard
• Door Width: For 48" doors, can be cut for a minimum 43" door width. For 36" doors, can be cut for a minimum 31" door width.
• Stile: 4-1/2" (144.30mm) minimum
• Mounting: Supplied with wood and machine screws
• Handing: Reversible
• Dogging: Hex-type hold down
• Latchbolt: Stainless steel
• Rail Assembly: Powder Coated Steel, stainless steel optional
• Strike: ES90 Strike

Certification:

• ANSI/BHMA A156.3, Grade 1
• Underwriters Laboratories (UL and CUL) Listed for accident hazard (panic) standard.
• All exit devices comply with life safety code NFPA 101

Finishes:

• 689/AL - Aluminum (sprayed finish)
• 630/US32D - Satin Stainless Steel
• 690/BRZ - Dark Bronze (sprayed finish)

Resources

• Cut Sheet
• ED910/PEC910 Series Cut Sheet
• Patented Permanent End Cap Exit Device
