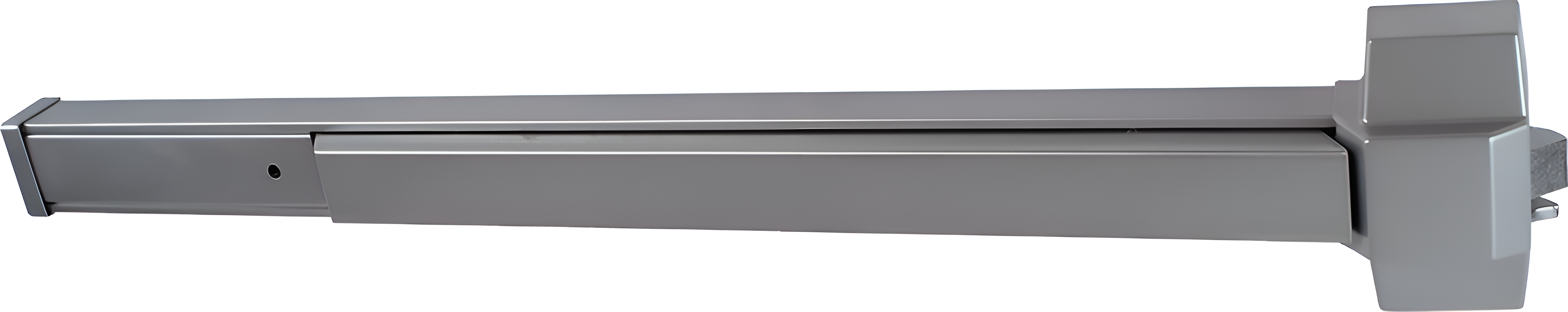

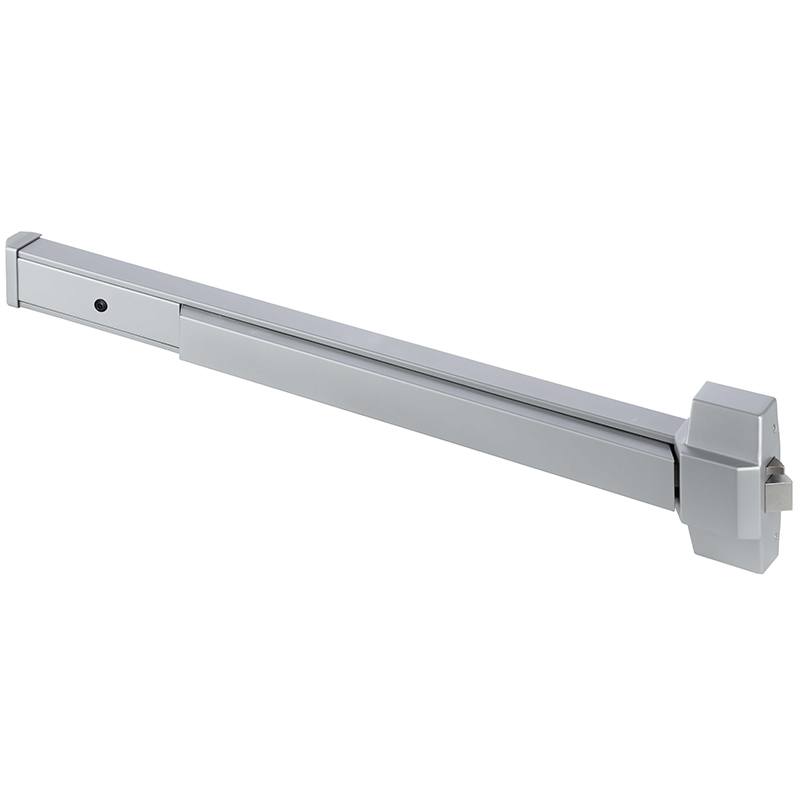

Arrow Lock ED910-36-689 Rim Exit Device, Hex Key Dogging, 36in, Grade 1, 689/US28 Sprayed Aluminum

Arrow Lock Company ED910-36-689 Rim Exit Device delivers reliability and performance for high-traffic areas. Certified to BHMA Grade 1 standards, this exit device is an ideal choice for both upgrading existing hardware and new installations. With a robust 10-year warranty, you can trust in its durability. Designed for standard 1-3/4" doors, the ED910 can accommodate door widths of 36" while being easily cut down to fit narrower openings, ensuring versatility for various applications. Its stamped steel chassis and cast zinc cover provide a sturdy construction, while the stainless steel latchbolt enhances security. The device features hex key dogging for added convenience and a reversible handing for flexible installation. The ED910 is also compliant with the life safety code NFPA 101, making it a safe choice for commercial spaces. Available in a sprayed aluminum finish (689/US28), satin stainless steel, and dark bronze, it complements a range of architectural styles. With the included wood and machine screws, installation is straightforward. Choose the Arrow Lock Company ED910-36-689 Rim Exit Device for a dependable exit solution that meets your security needs while offering peace of mind.

Rim Exit Device, Hex Key Dogging, 36in, Grade 1, 689/US28 Sprayed Aluminum

The Arrow ED910 is a value exit device that is BHMA Grade 1 Certified. The ED910 is designed to replace or upgrade existing exit devices and comes with an extended 10 year warranty.

Features:

• Chassis: Stamped steel materials
• Chassis cover: Cast zinc
• Door Types: Fits 1-3/4" (44.5 mm) doors standard
• Door Width: For 48" doors, can be cut for a minimum 43" door width. For 36" doors, can be cut for a minimum 31" door width.
• Stile: 4-1/2" (144.30mm) minimum
• Mounting: Supplied with wood and machine screws
• Handing: Reversible
• Dogging: Hex-type hold down
• Latchbolt: Stainless steel
• Rail Assembly: Powder Coated Steel, stainless steel optional
• Strike: ES90 Strike

Certification:

• ANSI/BHMA A156.3, Grade 1
• Underwriters Laboratories (UL and CUL) Listed for accident hazard (panic) standard.
• All exit devices comply with life safety code NFPA 101

Finishes:

• 689/AL - Aluminum (sprayed finish)
• 630/US32D - Satin Stainless Steel
• 690/BRZ - Dark Bronze (sprayed finish)

Resources

• Cut Sheet
• ED910/PEC910 Series Cut Sheet
• Patented Permanent End Cap Exit Device
