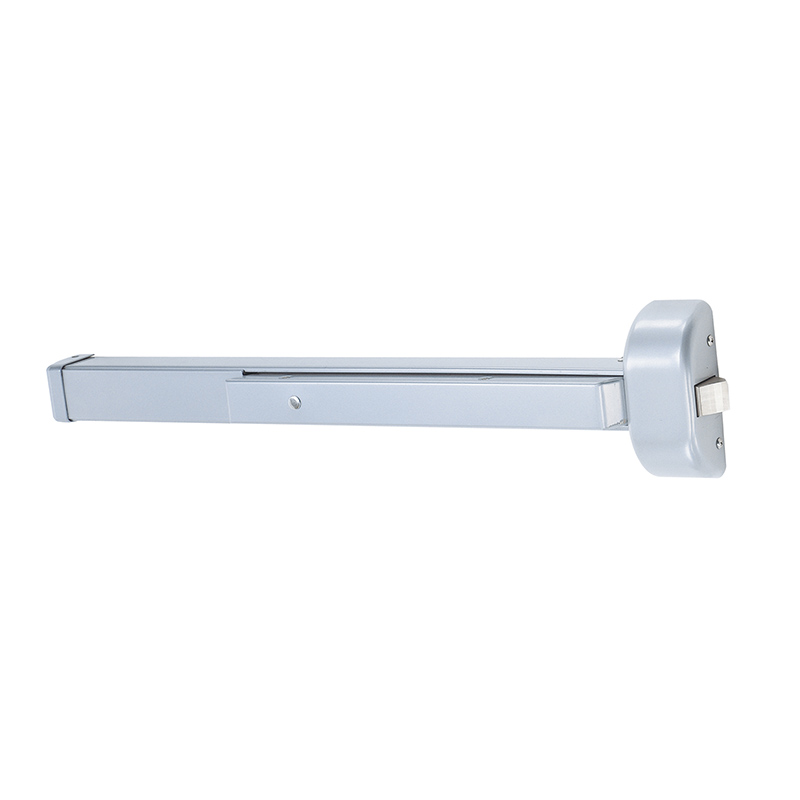

Arrow Lock FS1250G AL Fire-Rated Rim Exit Device

Arrow FS1250G AL Fire Rated Rim Exit Device delivers a robust and reliable solution for high-traffic areas, ensuring safety without compromising on performance. This Grade 1 rim exit device features a wide stile pushpad, making it easy to operate in emergencies. Designed for doors spanning 36" to 48" in width, it is ideal for both commercial and residential applications. Constructed from durable non-ferrous alloy with metal end caps, the FS1250G is engineered to accommodate 1-3/4" thick hollow metal doors, requiring a minimum stile width of 4-1/2". The non-handed design simplifies installation, while the standard Allen-type key dogging option enhances security. With a 3/4" throw stainless steel latchbolt and top/bottom bolts, this exit device ensures reliable locking capabilities. The Arrow FS1250G complies with ANSI/BHMA A156.3 Grade 1 standards and is UL and CUL listed for panic exit hardware, meeting life safety codes (NFPA 101) and fire door regulations (NFPA 80). Available in a sleek aluminum finish, this exit device combines functionality with aesthetic appeal. Choose the Arrow FS1250G for an effective, fire-rated exit solution that prioritizes safety and ease of use.

Fire Rated Rim Exit Device

Grade 1 Rim Exit Device, Wide Stile Pushpad, Fire Rated Device, 36" - 48" Wide Door, Universal Function, Less Trim, Less Dogging, Aluminum Painted Finish, Non-Handed

The Arrow S1250 Rim Exit Device offers a reliable and dependable solution at a price you can afford.

Chassis & Cover: Non-ferrous alloy

End caps: Metal

Doors:

• 1-3/4" (44.45 mm) thick
• hollow metal
• 4-1/2" (114.3 mm) minimum stile

Handling: Non-handed

Dogging: Allen-type key standard, cylinder available.

Top/Bottom Bolts/Latchbolt: 3/4" (19.05 mm) throw, stainless steel

Throughbolts: Order separately

Rail Assembly: Steel

Rail Size:

• Furnished standard for 32-1/4" to 36" door widths.
• Specify "-24" for 24" to 32" door widths.
• Specify "-48" for 36-1/4" to 48" door widths.

Finishes: AL, BRZ, LBZ (sprayed finishes)

• ANSI/BHMA A156.3, Grade 1
• Underwriters Laboratories (UL and CUL) listed for accident hazard (panic) standard.
• Fire Exit hardware for hollow metal doors, UL and CUL listed for 3 hour, A label and lesser doors, Prefix "F" before part number.
• ANSI A117.1 Accessibility Code
• Fire Exit Hardware for wood doors, listed up to 1-1/2 hour, B label doors
• All exit devices comply with life safety code NFPA 101.
• All fire rated devices comply with fire door and window code NFPA80

Resources

• S1150 Series / S1250 Series Cut Sheet
