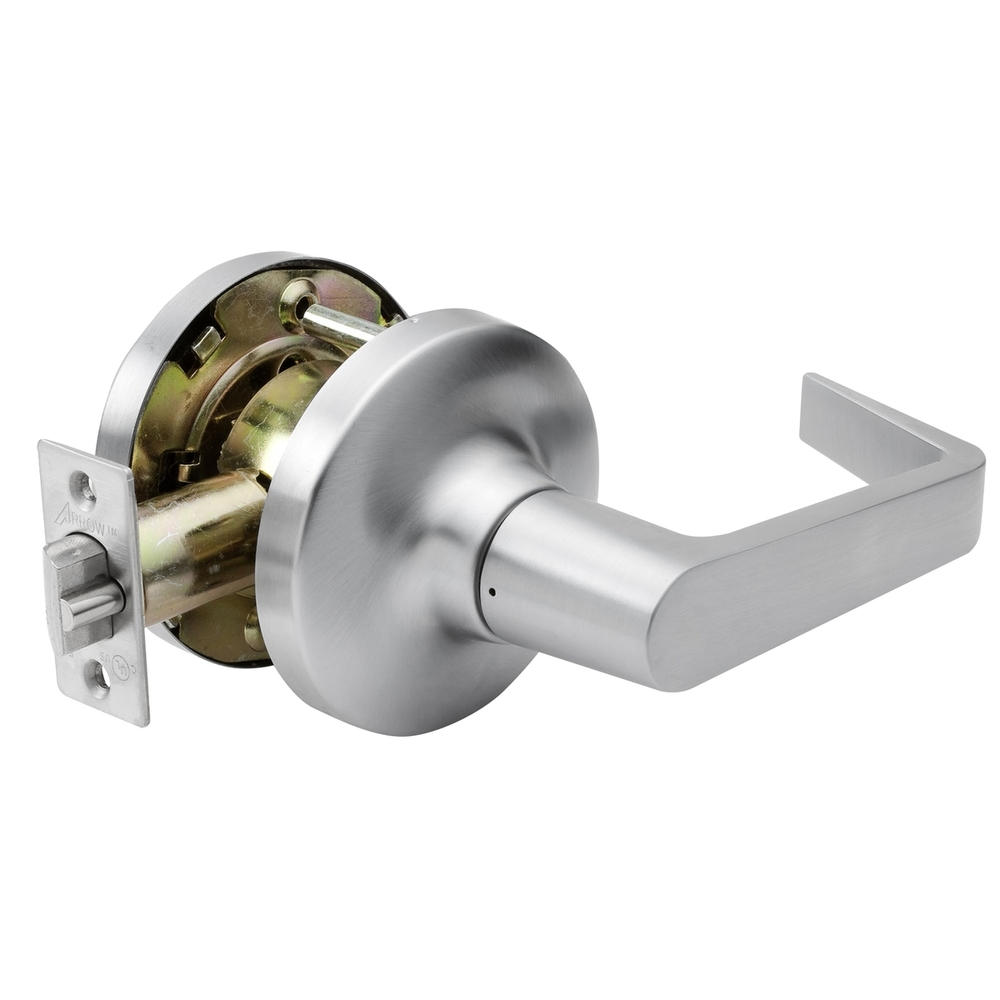

Arrow Lock GL08-SR-26D Grade 1 Single Dummy Trim

Arrow Lock GL08-SR-26D Grade 1 Single Dummy Trim combines durability and functionality in a sleek design. This Grade 1 dummy cylindrical lock features the elegant Sierra lever, finished in a contemporary satin chrome that complements various architectural styles. Designed with both the installer and end-user in mind, this lock offers a straightforward installation process due to fewer subcomponents, making it an economical choice for those prioritizing efficiency. The GL Series is ADA compliant, ensuring accessibility without sacrificing quality. The freewheeling lever action-thanks to the OverDrive™ mechanism-allows the latch retraction to disengage from the handle when locked, providing added convenience. Crafted with a stainless steel latch featuring a ½" throw, the lock ensures reliability and resistance to wear. With a non-handed design, the levers operate bi-directionally, accommodating diverse applications. This lock suits doors with a thickness ranging from 1-3/8" to 2", and the robust brass and stainless steel components ensure longevity. Additionally, it includes a limited five-year warranty, affirming the lock's durability and performance. The Arrow GL08-SR-26D is an excellent option for commercial settings, delivering security and style in one package.

Grade 1 Single Dummy Trim

Grade 1 Dummy Cylindrical Lock, Sierra Lever, Non-Keyed, Satin Chrome Finish, Non-handed

Arrow GL Series Grade 1 heavy duty levers offer an economically pleasing solution for ADA compliance. The GL solution is designed with the installer in mind, providing fewer subcomponents to allow for an easier to install system. Simply put, the GL Series will be your number one choice when economy is your first priority.

The GL Series is a grade 1 heavy duty lever lock that is ADA compliant.

The Arrow GL Series is designed with the installer in mind, providing fewer subcomponents to allow for an easier to install system. Simply put, the GL Series will be your number one choice when economy is your first priority.

• OverDrive™ – Freewheeling lever action occurs when latch retraction mechanism disengages from lever handle when handle is locked. Built-in stops in the rose insert prevent lever from traveling beyond approximately 70 degrees.
• Backset – 2-3/4" (69.85mm) standard. See price book for alternate backsets.
• Latch – Stainless Steel with 1/2" (12.7mm) throw standard. Latch housing is steel, zinc dichromate finish for corrosion resistance. 1" (25.4mm) bore in edge of door is required.
• Latch Front – Brass and stainless steel. 2-1/4" (57.15mm) x 1-1/8" (28.57mm), 1/8" (3.175mm) in 2" (50.8mm).
• Exposed Trim – Levers are pressure cast zinc. Streamline rose scalp of brass or bronze complements other series of lever locks.
• Rose Inserts – Contain coil spring which is a permanent assembly within rose insert. Inside and outside rose scalps are retained by dimples that create an interference fit with the rose inserts. There are no special retention features added to the rose insert that align the scalp.
• Strikes – Brass and stainless steel. ANSI A115.2, 4-7/8" (123.82mm) x 1-1/4" (31.75mm) curved lip strike standard.
• Door Thickness – 1-3/8" (34.92mm) to 2" (50.8mm).
• Handing – Non-handed. Levers operate bi-directionally.
• Finishes – US3, US10B, US26D.
• Packaging – 1 per box, 10 per case.
• Warranty – Limited five year warranty.
