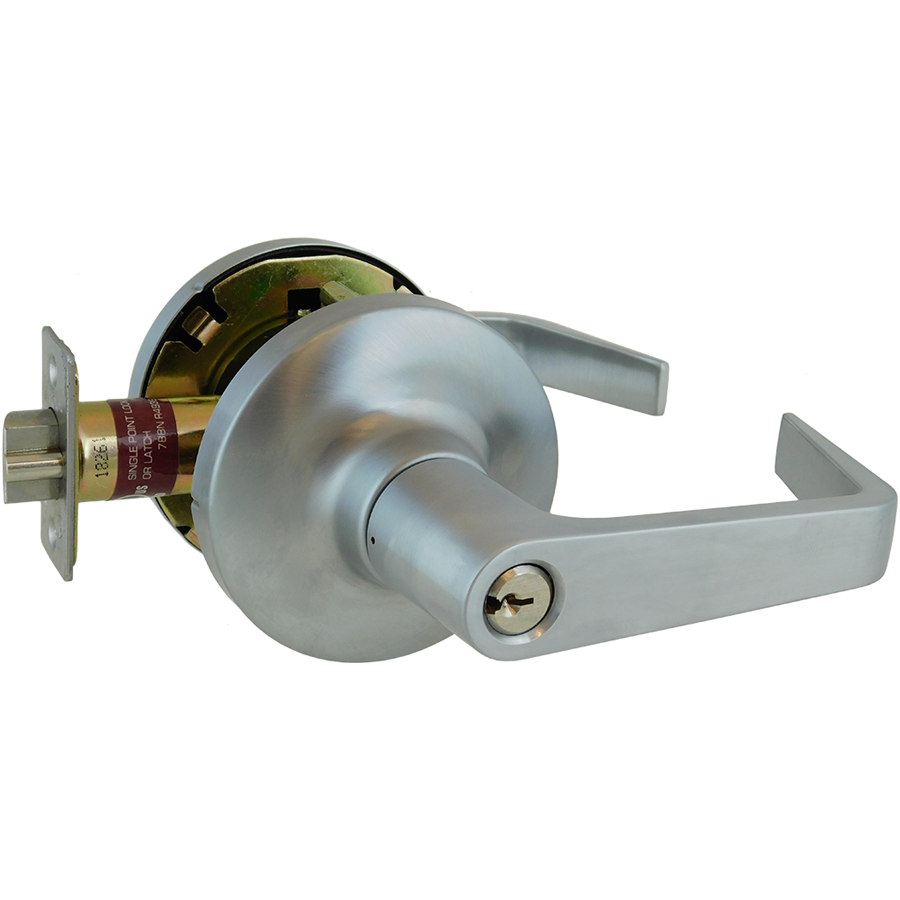

Arrow Lock GL82SR26D-CS-2 3/4 BS Sierra Lever, Schlage C Keyway, 2-3/4in Backset, Grade 1, Satin Chrome

Arrow Lock Company GL82SR26D-CS-2 3/4 BS Storeroom Sierra Lever is a Grade 1 heavy-duty lever designed for exceptional durability and ADA compliance. This storeroom function lever features a Schlage C keyway and a standard 2-3/4 inch backset, making it an ideal choice for commercial applications where security and ease of access are paramount. Constructed from interlocking dichromate plated steel, the lever’s housing ensures strength while resisting corrosion. The lever action is engineered to allow freewheeling when the latch is locked, preventing damage during forced entry attempts. The GL82SR lever is non-handed, allowing for bi-directional operation and simplifying installation. Additionally, the stainless steel latch provides a 1/2 inch throw, ensuring robust locking performance. The pressure cast zinc levers and the streamlined rose scalp, available in satin chrome finish, offer a polished look that complements various architectural styles. With a five-year limited warranty, this lever is not only reliable but also easy to maintain. The GL Series is a practical solution for building professionals seeking a cost-effective yet high-quality locking mechanism. Whether it's for a storeroom or other secure areas, Arrow Lock Company delivers a product that combines functionality with style.

Storeroom Sierra Lever, Schlage C Keyway, 2-3/4in Backset, Grade 1, 626/US26D Satin Chrome

GL Series Grade 1 heavy duty levers offer an economically pleasing solution for ADA Compliance. The GL solution is designed with the installer in mind, providing fewer subcomponents to allow for an easier to install system. Simply put, the GL Series will be your number one choice when economy is your first priority.

Features:

• Housing: Interlocking lever tubes are made from dichromate plated steel. The tubes are attached to the rose insert.
• Standard bearing sleeves used on most other Arrow lever series are not used on the GL.
• Requires standard 2-1/8" (53.97mm) bore through door.
• Thru-Bolts: Removable thru-bolts standard on GL Series.
• Overdrive: Freewheeling lever action occurs when latch retraction mechanism disengages from lever handle when handle is locked.
• Built-in stops in the rose insert prevent lever from traveling beyond approximately 70 degrees
• Backset: 2-3/4" (69.85mm) standard. See price book for alternate backsets.
• Latch: Stainless Steel with 1/2" (12.7mm) throw standard. Latch housing is steel, zinc dichromate finish for corrosion resistance. 1" (25.4mm) bore in edge of door is required.
• Latch Front: Brass and stainless steel. 2-1/4" (57.15mm) x 1-1/8" (28.57mm), 1/8" (3.175mm) in 2" (50.8mm).
• Exposed Trim: Levers are pressure cast zinc. Streamline rose scalp of brass or bronze complements other series of lever locks.
• Rose Inserts: Contain coil spring which is a permanent assembly within rose insert.
• Inside and outside rose scalps are retained by dimples that create an interference fit with the rose inserts.
• There are no special retention Features: added to the rose insert that align the scalp.
• Strikes: Brass and stainless steel. ANSI A115.2, 4-7/8" (123.82mm) x 1-1/4" (31.75mm) curved lip strike standard.
• Door Thickness: 1-3/8" (34.92mm) to 2" (50.8mm).
• Handing: Non-handed. Levers operate bi-directionally.
• Finishes: US3, US10B, US26D.
• Warranty: Limited five year warranty.

Cylinder Options:

• Conventional–GL Series locksets are supplied standard with Arrow "A" keyway, 6 pin cylinder.
• Conventional cylinders are available in a variety of competitive manufacturers keyways.
• Supplied with two nickel silver keys.
• Interchangeable core – lockset prepared for use with 6 or 7 pin interchangeable core.
• Supplied less core, but packed with 6 and 7 pin tailpieces.
• Suffix "IC" to request Small Format Interchangeable Core prep.
• Suffix "LIC" for Medeco Large Format Interchangeable core prep.

Functions Available:

• Arrow Standard
• GL01 Passage
• GL02 Privacy
• GL08 Single Dummy Trim
• Arrow Overdrive
• GL81 Entrance/Office
• GL82 Storeroom
• GL87 Classroom
• GL97 Intruder/Classroom

Latches and Strikes:

• Spring Latches: 2-3/4" Backset, 2-3/8" Backset
• Dead Latches: 2-3/4" Backset, 2-3/8" Backset
• Strikes: ASA ANSI 115.2 (4-7/8" x 1-1/4")

Finishes:

• 605/US3/03 - Bright Brass
• 613/US10B/10B - Dark Oxide Bronze, Oil Rubbed
• 626/US26D/26D - Satin Chromium Plated
