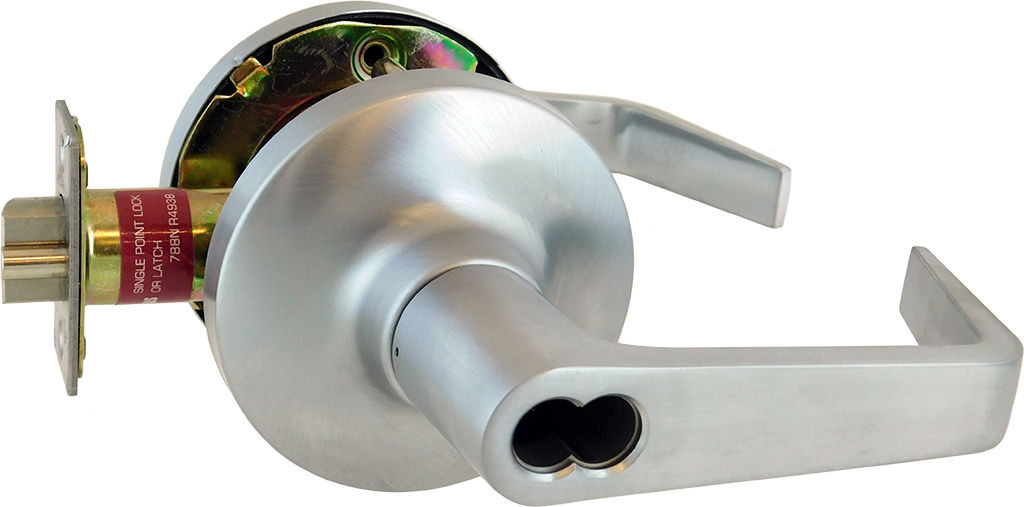

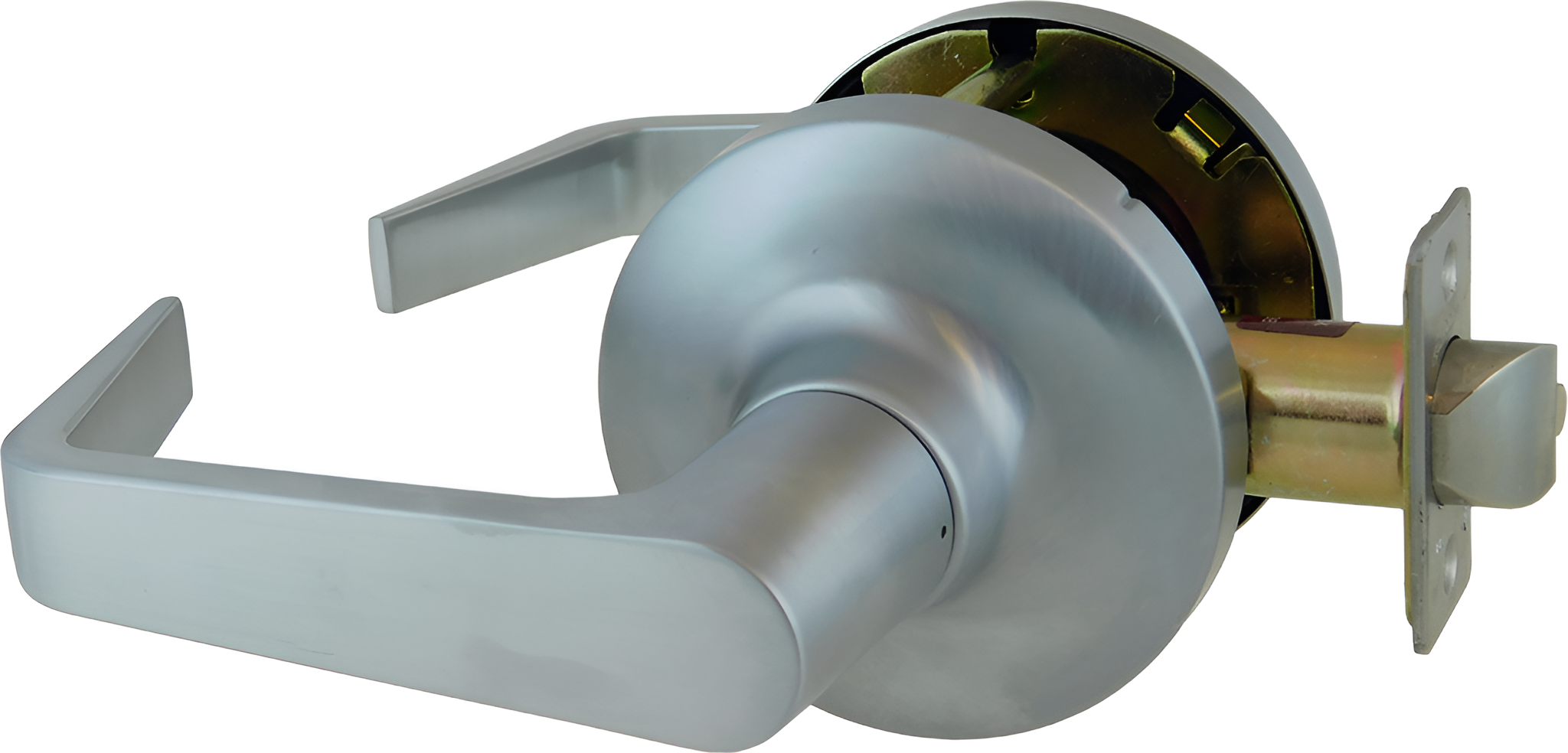

Arrow Lock GL87SR26D-IC-2 3/4 BS Classroom Sierra Lever, SFIC Less Core, 2-3/4" Backset, Grade 1, Satin Chrome

Arrow Lock Company GL87SR26D-IC-2 3/4 BS Classroom Sierra Lever is a Grade 1 heavy-duty lever designed for durability and ADA compliance, making it an ideal choice for educational and commercial environments. This lever is built with interlocking lever tubes made from dichromate plated steel, ensuring robust performance and longevity. With a standard 2-3/4" backset, it fits most door applications, while its non-handed design allows for versatile installation and operation. The GL Series lever features a freewheeling action that disengages the latch retraction mechanism when locked, preventing wear and tear. The stainless steel latch with a 1/2" throw and corrosion-resistant zinc dichromate finish enhances its durability. Removable thru-bolts simplify installation, and the integrated coil spring within the rose insert guarantees reliable operation. This model comes prepared for a small-format interchangeable core, allowing for easy rekeying when needed. It is available in a sleek satin chrome finish (626/US26D) that complements a variety of architectural styles. Certified to ANSI, ADA, and UL standards, the GL87SR26D-IC-2 is backed by a limited five-year warranty, assuring you of its quality and reliability. Enhance your security solution with this efficient and stylish classroom lever from Arrow Lock Company.

Classroom Sierra Lever, SFIC Less Core, 2-3/4in Backset, Grade 1, 626/US26D Satin Chrome

GL Series Grade 1 heavy duty levers offer an economically pleasing solution for ADA Compliance. The GL solution is designed with the installer in mind, providing fewer subcomponents to allow for an easier to install system. Simply put, the GL Series will be your number one choice when economy is your first priority.

Features:

• Housing: Interlocking lever tubes are made from dichromate plated steel. The tubes are attached to the rose insert.
• Standard bearing sleeves used on most other Arrow lever series are not used on the GL.
• Requires standard 2-1/8" (53.97mm) bore through door.
• Thru-Bolts: Removable thru-bolts standard on GL Series.
• Overdrive: Freewheeling lever action occurs when latch retraction mechanism disengages from lever handle when handle is locked.
• Built-in stops in the rose insert prevent lever from traveling beyond approximately 70 degrees
• Backset: 2-3/4" (69.85mm) standard. See price book for alternate backsets.
• Latch: Stainless Steel with 1/2" (12.7mm) throw standard. Latch housing is steel, zinc dichromate finish for corrosion resistance. 1" (25.4mm) bore in edge of door is required.
• Latch Front: Brass and stainless steel. 2-1/4" (57.15mm) x 1-1/8" (28.57mm), 1/8" (3.175mm) in 2" (50.8mm).
• Exposed Trim: Levers are pressure cast zinc. Streamline rose scalp of brass or bronze complements other series of lever locks.
• Rose Inserts: Contain coil spring which is a permanent assembly within rose insert.
• Inside and outside rose scalps are retained by dimples that create an interference fit with the rose inserts.
• There are no special retention Features: added to the rose insert that align the scalp.
• Strikes: Brass and stainless steel. ANSI A115.2, 4-7/8" (123.82mm) x 1-1/4" (31.75mm) curved lip strike standard.
• Door Thickness: 1-3/8" (34.92mm) to 2" (50.8mm).
• Handing: Non-handed. Levers operate bi-directionally.
• Finishes: US3, US10B, US26D.
• Warranty: Limited five year warranty.

Cylinder Options:

• Conventional–GL Series locksets are supplied standard with Arrow "A" keyway, 6 pin cylinder.
• Conventional cylinders are available in a variety of competitive manufacturers keyways.
• Supplied with two nickel silver keys.
• Interchangeable core – lockset prepared for use with 6 or 7 pin interchangeable core.
• Supplied less core, but packed with 6 and 7 pin tailpieces.
• Suffix "IC" to request Small Format Interchangeable Core prep.
• Suffix "LIC" for Medeco Large Format Interchangeable core prep.

Functions Available:

• Arrow Standard
• GL01 Passage
• GL02 Privacy
• GL08 Single Dummy Trim
• Arrow Overdrive
• GL81 Entrance/Office
• GL82 Storeroom
• GL87 Classroom
• GL97 Intruder/Classroom

Latches and Strikes:

• Spring Latches: 2-3/4" Backset, 2-3/8" Backset
• Dead Latches: 2-3/4" Backset, 2-3/8" Backset
• Strikes: ASA ANSI 115.2 (4-7/8" x 1-1/4")

Finishes:

• 605/US3/03 - Bright Brass
• 613/US10B/10B - Dark Oxide Bronze, Oil Rubbed
• 626/US26D/26D - Satin Chromium Plated
