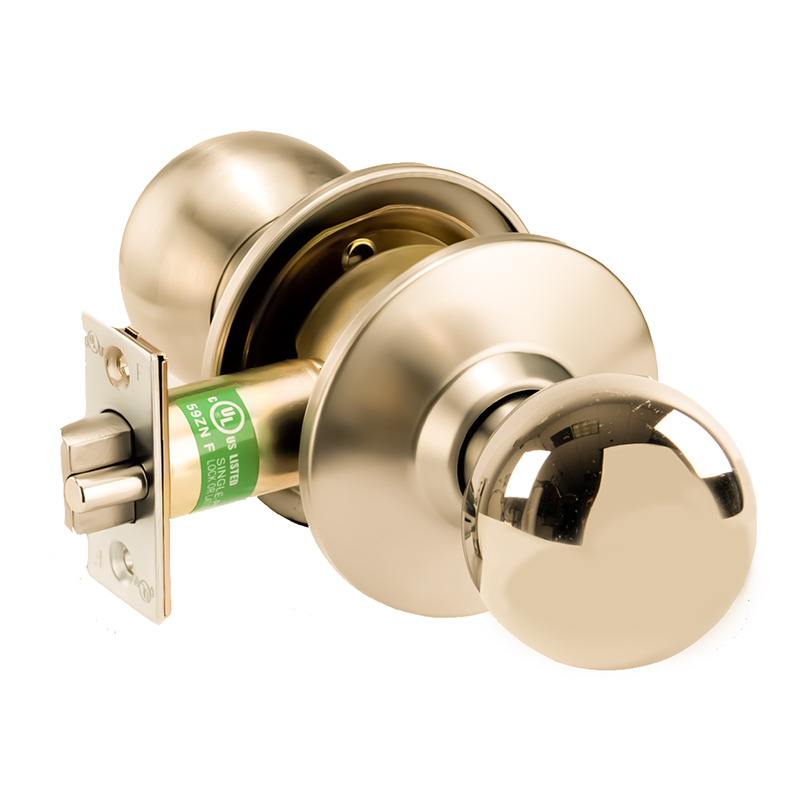

Arrow Lock HK01-BB-605 Grade 1 Passage Latch

Arrow HK01-BB-605 Grade 1 Passage Latch offers a reliable and robust locking solution for commercial applications. This Grade 1 cylindrical knob lock is designed to withstand heavy use, making it perfect for high-traffic areas. With its non-keyed mechanism and bright brass finish, it combines both functionality and aesthetic appeal, ensuring it complements any door style. Crafted from cold-rolled steel with a zinc dichromate finish, the lock chassis is built for corrosion resistance, while the precision stainless steel latch retractor enhances durability. The latch itself features a ½-inch throw and requires a standard 1-inch bore for installation. Suitable for door thicknesses ranging from 1-3/8 inches to 2 inches, this lock is versatile and accommodates various door types. The Arrow HK series is non-handed, allowing for easy installation from either side, and it comes with a standard solid brass 6-pin cylinder, complete with two nickel-plated brass keys. Moreover, the lock is UL listed and certified to BHMA Grade 1, backed by a generous 10-year warranty, providing peace of mind for building professionals and homeowners alike. Choose the Arrow HK01-BB-605 for a dependable locking solution that meets rigorous standards and enhances your property's security.

Grade 1 Passage Latch

Grade 1 Passage Cylindrical Lock, Ball Knob, Non-Keyed, Bright Brass Finish, Non-handed

The HK series Grade 1 Cylindrical Knob lock is designed and tested for the most robust applications for Grade 1 knob locksets. Backed by the Arrow 10 year warranty and Certified to BHMA Grade 1 it is the worry free solution when a Grade 1 knob lock is needed.

The Arrow HK Series is a Grade 1 Knob Lock that comes in a variety of finishes and functions.

• Lock Chassis – Cold rolled steel with zinc dichromate finish for corrosion resistance. Latch retractor is precision stainless steel. Requires standard 2-1/8" (53.97mm) bore through door.
• Door Thickness – 1-3/8" (35mm) to 2" (50.80mm)
• Latch – Stainless steel with 1/2" (12.7mm) throw. Latch housing is steel, zinc dichromate finish for corrosion resistance. 1" (25.4mm) bore in edge of door required.
• Latch Front – Brass or stainless steel, 2-1/4" (57.15mm) x 1-1/8" (28.57mm), beveled 1/8" (3.17mm) in 2" (50.8mm)
• Handing – Reversible.
• Strike – Brass or stainless steel. ANSI A115.2,4-7/8" (123.82mm) x 1-1/4" (31.75mm) curved lip standard with a 1-1/4" (31.75mm) lip to center dimension.
• Cylinder, Standard – Solid brass 6 pin cylinder supplied with two 6 pin nickel plated brass keys. Available in Arrow AR or Schlage CS keyway.
• Cylinder Options – Interchangeable core-lockset prepared for use with 6 or 7 pin interchangeable core available. SFIC format. Supplied less core. Suffix "IC" to design.
