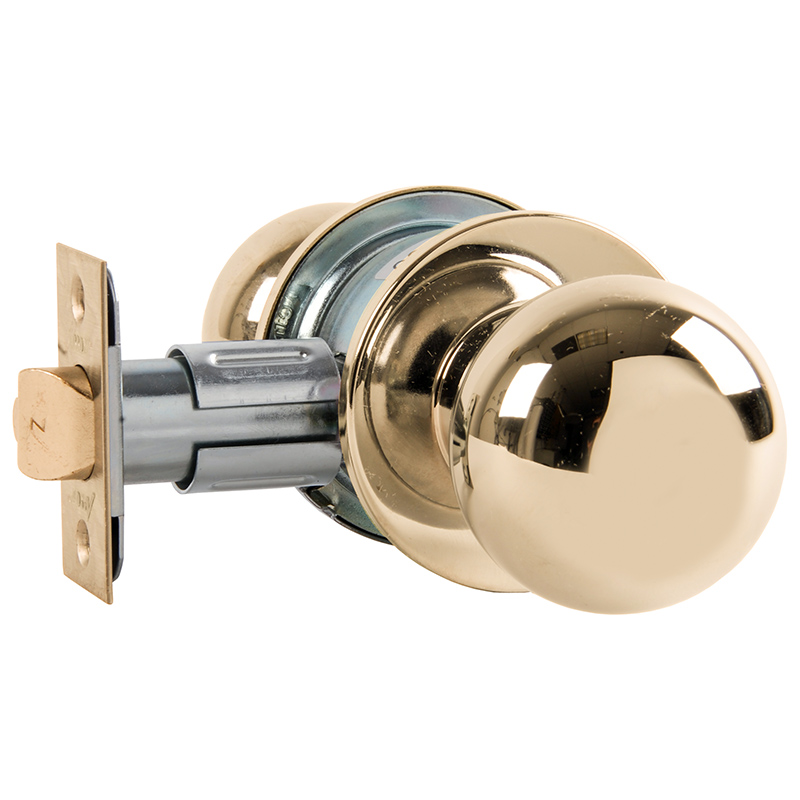

Arrow Lock MK02-BD-03 Grade 2 Privacy Knob

Arrow MK02-BD-03 Grade 2 Privacy Knob offers a reliable solution for both commercial and residential applications requiring privacy. This Grade 2 cylindrical lock features a stylish ball knob design, finished in bright brass, providing an elegant touch while ensuring durability. The lock is non-keyed and designed to be non-handed, making installation straightforward and adaptable to various door setups. Constructed from cold-rolled steel with a zinc dichromate finish, the lock chassis ensures corrosion resistance, making it ideal for long-term use. It accommodates standard door thicknesses of 1-3/8" to 1-3/4" and requires a 2-1/8" bore through the door. The latch, with a 1/2" throw, is crafted from brass and housed in a steel casing, further enhancing its durability. The MK Series excels in meeting accessibility requirements with its clean design and practical functionality. With the option of multiple backset sizes, including the standard 2-3/8", the lock can be tailored to fit a variety of door configurations. Backed by a one-year warranty, the Arrow MK02-BD-03 is a dependable choice for those seeking quality and style in door hardware.

Grade 2 Privacy Knob

Grade 2 Privacy Cylindrical Lock, Ball Knob, Non-Keyed, Bright Brass Finish, Non-handed

Arrow MK Series offer the designer, architect and contractor simple solutions to accessibility requirements. Their clean designs, architectural finishes and available functions make them ideal for commercial applications where heavy duty grade one hardware may not be necessary.

The Arrow MK Series has a clear design and is a simple solution to accessibility requirements.

The MK Series is available in several finishes and functions that make them ideal for commercial applications where heavy duty grade one hardware may not be necessary.

• Lock Chassis – Cold rolled steel with zinc dichromate finish for corrosion resistance. Requires standard 2-1/8" (53.97mm) bore through door.
• Backset – 2-3/8" (60.32mm) standard. 2-3/4" (69.85mm), 3-3/4" (95.25mm) and 5" (127mm) available.
• Door Thickness – 1-3/8" (34.92mm) to 1-3/4" (44.45mm). Latch – Brass with 1/2" (12.7mm) throw.
• Latch housing is steel, with zinc dichromate finish for corrosion resistance. 7/8" (22.225mm) bore in edge of door is required.
• Latch Front – Brass, bronze or stainless steel. Standard faceplate for 2-3/8” (60.32.mm) backset measures 2-1/4” (57.15mm) x 1” (25.40mm) with a flat front, for 2-3/4” (69.85mm) backset standard faceplate measures 2-1/4” (57.15mm) x 1-1/8” (28.57mm) with beveled front 1/8” (3.17mm) in 2” (50.8mm).
• Strike – Brass, bronze or stainless steel. Standard “T” strike measures 2-3/4" (69.85mm) x 1-1/8" (28.57mm). Optional ANSI A115.1 strike measures 4-7/8" (123.82mm) x 1-1/4" (31.75mm). All strikes have a 1-1/4" (31.75mm) lip to center dimension.
• Handing– Reversible.
• Cylinder, Standard – Solid brass 6 pin cylinder with Arrow “A” keyway, keyed to 5 pin for stock. Can be masterkeyed, grandmaster keyed and construction masterkeyed. Conventional cylinders are also available in a variety of competitive manufacturer’s keyways. Supplied with two 5 pin brass keys for stock. Available in Schlage CS keyway and other competitive keyways.
