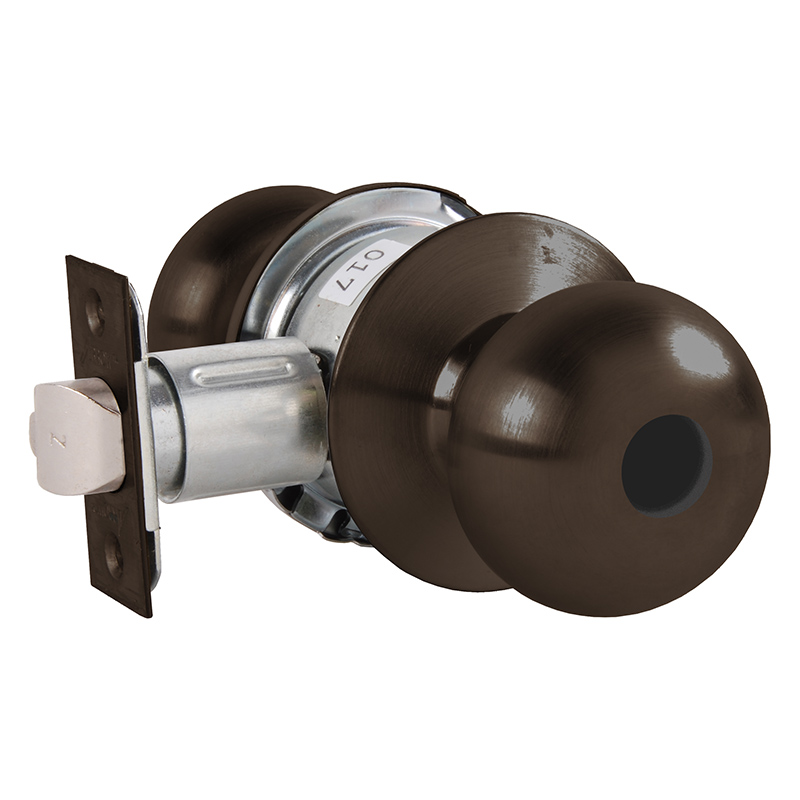

Arrow Lock MK11-TA-10BE-LC Grade 2 Entry/Office Lock

Arrow MK11-TA-10BE-LC Grade 2 Entry/Office Lock combines functionality with a sleek design, making it an ideal choice for commercial applications. This Grade 2 turn-pushbutton cylindrical lock features a Tudor knob and comes in a dark oxidized bronze finish, offering both style and durability. Non-handed and adaptable, it is suitable for doors with a thickness ranging from 1-3/8" to 1-3/4". Constructed from cold-rolled steel with a zinc dichromate finish, the lock chassis ensures corrosion resistance, while the 1/2" throw brass latch provides reliable security. Designed for easy installation, it requires a standard 2-1/8" bore through the door and is available in multiple backset options, including 2-3/8" and 2-3/4". The lock is equipped with a solid brass 6-pin cylinder that can be masterkeyed, providing flexibility for various keying needs. Additionally, the MK series meets accessibility requirements with its clean lines and functional design. UL listed and backed by a one-year warranty, this lock delivers peace of mind without compromising on aesthetics. Whether for office entrances or commercial spaces, the Arrow MK11-TA-10BE-LC is a trusted choice for quality and performance.

Grade 2 Entry/Office Lock

Grade 2 Turn-Pushbutton Entrance Cylindrical Lock, Tudor Knob, Conventional Less Cylinder, Dark Oxidized Bronze Finish, Non-handed

Arrow MK Series offer the designer, architect and contractor simple solutions to accessibility requirements. Their clean designs, architectural finishes and available functions make them ideal for commercial applications where heavy duty grade one hardware may not be necessary.

The Arrow MK Series has a clear design and is a simple solution to accessibility requirements.

The MK Series is available in several finishes and functions that make them ideal for commercial applications where heavy duty grade one hardware may not be necessary.

• Lock Chassis – Cold rolled steel with zinc dichromate finish for corrosion resistance. Requires standard 2-1/8" (53.97mm) bore through door.
• Backset – 2-3/8" (60.32mm) standard. 2-3/4" (69.85mm), 3-3/4" (95.25mm) and 5" (127mm) available.
• Door Thickness – 1-3/8" (34.92mm) to 1-3/4" (44.45mm). Latch – Brass with 1/2" (12.7mm) throw.
• Latch housing is steel, with zinc dichromate finish for corrosion resistance. 7/8" (22.225mm) bore in edge of door is required.
• Latch Front – Brass, bronze or stainless steel. Standard faceplate for 2-3/8” (60.32.mm) backset measures 2-1/4” (57.15mm) x 1” (25.40mm) with a flat front, for 2-3/4” (69.85mm) backset standard faceplate measures 2-1/4” (57.15mm) x 1-1/8” (28.57mm) with beveled front 1/8” (3.17mm) in 2” (50.8mm).
• Strike – Brass, bronze or stainless steel. Standard “T” strike measures 2-3/4" (69.85mm) x 1-1/8" (28.57mm). Optional ANSI A115.1 strike measures 4-7/8" (123.82mm) x 1-1/4" (31.75mm). All strikes have a 1-1/4" (31.75mm) lip to center dimension.
• Handing– Reversible.
• Cylinder, Standard – Solid brass 6 pin cylinder with Arrow “A” keyway, keyed to 5 pin for stock. Can be masterkeyed, grandmaster keyed and construction masterkeyed. Conventional cylinders are also available in a variety of competitive manufacturer’s keyways. Supplied with two 5 pin brass keys for stock. Available in Schlage CS keyway and other competitive keyways.

Resources

• MK Series Cut Sheet
• MK Series Dummy Knob Template
• MK Series Grade 2 Cylindrical Knob Locks Cut Sheet
• MK Series Template
