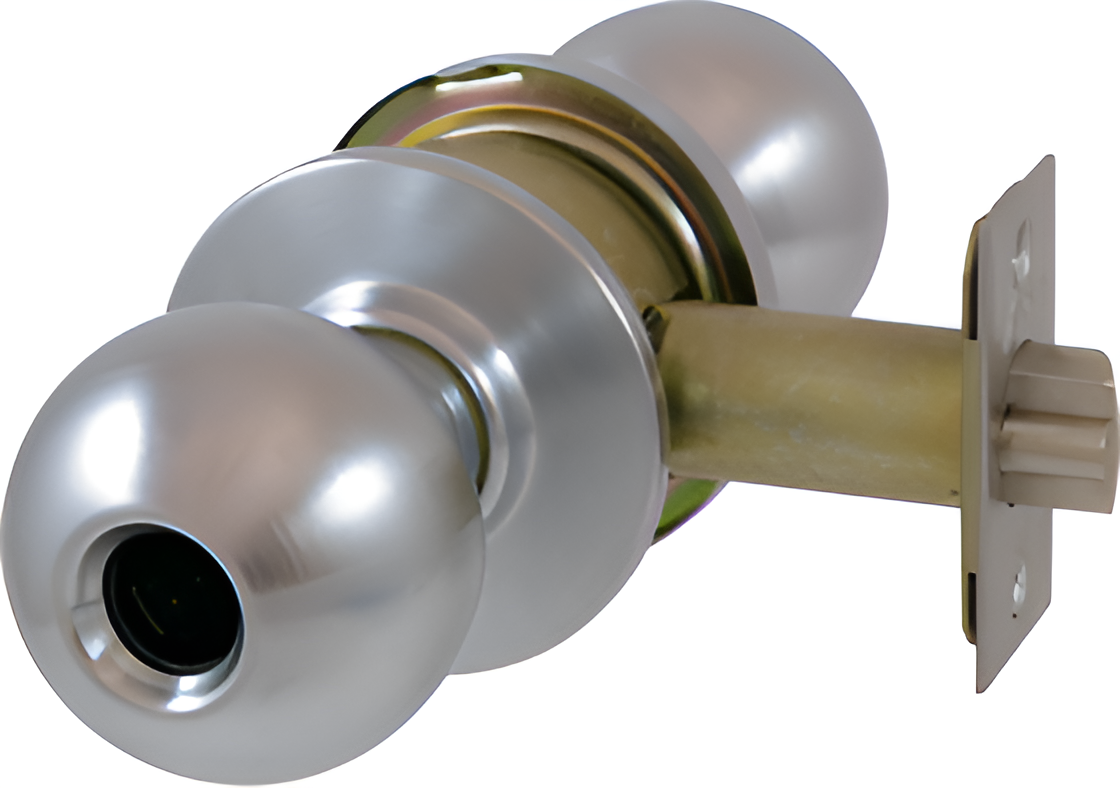

Arrow Lock MK11BD26D-LC-2 3/8 BS Entry Ball Knob, Less Cylinder, 2-3/8in Backset, Grade 2, 626/US26D Satin Chrome

Arrow Lock Company MK11BD26D-LC-2 3/8 BS Entry Ball Knob offers a practical and stylish solution for commercial settings where robust security is essential, but heavy-duty hardware is not required. This Grade 2 lockset features a cold-rolled steel chassis with a zinc dichromate finish, ensuring excellent corrosion resistance while maintaining a sleek look in satin chrome (626/US26D). Designed for ease of use, it accommodates standard door thicknesses of 1-3/8" to 1-3/4" and is outfitted with a reversible handing option for versatile installation. The lockset’s 2-3/8" backset is ideal for common door applications, while the brass latch boasts a 1/2" throw for reliable closure. This entry knob is supplied less cylinder, allowing for customization with interchangeable cores or standard solid brass 6-pin cylinders that can accommodate various keyways, including Schlage CS. It includes two brass keys for immediate use and can be easily master keyed for enhanced security. The MK series emphasizes clean design and architectural finishes, making it a perfect choice for architects, designers, and contractors looking for reliable and accessible locking solutions. With its combination of functionality and aesthetics, the MK11BD26D-LC-2 is an excellent addition to any commercial space.

Entry Ball Knob, Less Cylinder, 2-3/8in Backset, Grade 2, 626/US26D Satin Chrome

MK Series offers the designer, architect and contractor simple solutions to accessibility requirements. Their clean designs, architectural finishes and available Functions make them ideal for commercial applications where heavy duty grade one hardware may not be necessary

Specifications:

• Lock Chassis: Cold rolled steel with zinc dichromate finish for corrosion resistance. Requires standard 2-1/8" (53.97mm) bore through door.
• Backset:
• 2-3/8" (60.32mm) standard
• 2-3/4" (69.85mm)
• 3-3/4" (95.25mm)
• 5" (127mm)
• Door Thickness: 1-3/8" (34.92mm) to 1-3/4" (44.45mm)
• Latch: Brass with 1/2" (12.7mm) throw.
• Latch housing is steel, with zinc dichromate finish for corrosion resistance.
• 7/8" (22.225mm) bore in edge of door is required.
• Latch Front: Brass, bronze or stainless steel.
• Standard faceplate for 2-3/8" (60.32.mm) backset measures 2-1/4" (57.15mm) x 1" (25.40mm) with a flat front
• For 2-3/4" (69.85mm) backset Standard faceplate measures 2-1/4" (57.15mm) x 1-1/8" (28.57mm) with beveled front 1/8" (3.17mm) in 2" (50.8mm)
• Strike: Brass, bronze or stainless steel. Standard "T" strike measures 2-3/4" (69.85mm) x 1-1/8" (28.57mm).
• Optional ANSI A115.1 strike measures 4-7/8" (123.82mm) x 1-1/4" (31.75mm).
• All strikes have a 1-1/4" (31.75mm) lip to center dimension.
• Handing: Reversible.
• Cylinder, Standard: Solid brass 6 pin cylinder with Arrow "A" keyway, keyed to 5 pin for stock.
• Can be master keyed, grandmaster keyed and construction master keyed.
• Conventional cylinders are also available in a variety of competitive manufacturer’s keyways.
• Supplied with two 5 pin brass keys for stock.
• Available in Schlage CS keyway and other competitive keyways.

Cylinder Options:

• Conventional–MK Series locksets are supplied standard with Arrow "A" keyway, 6 pin cylinder. As with all other lock series, various levels of master keying are available. Conventional cylinders are available in a variety of competitive manufacturers keyways. Supplied with two brass keys.
• Interchangeable Core – Lockset prepared for use with 6 or 7 pin interchangeable core. Supplied less core, but packed with 6 and 7 pin tailpieces. Will also accept cores manufactured by Best™, Falcon™, Medeco Keymark™ and others. Suffix "IC" to design. Temporary Arrow construction cores are also available.

Functions:

• MK01 F75/161N, 160N Passage
• MK02 F76/161L, 160L Privacy
• MK03 F111 Communicating Passage
• MK04 F77/161P, 160P Patio
• MK05 F78/161M, 160M Communicating
• MK08 Single Dummy Trim
• MK11 F109 (F81 & F82)/161A, 160A Entrance/Office
• MK12 F86/161D, 160D Storeroom
• MK13 F82A/161B, 160B Exterior
• MK14 F92/161E, 160E Service Station
• MK15 F93/161H, 160H Hotel
• MK17 F84/161R, 160R Classroom
• MK18 F113 Communicating Classroom
• MK31 F80/161S, 160SCommunicating
• MK32 F88/161C, 160C Public Entrance
• MK33 F87/161W, 160W Asylum
• MK34 Exterior

Finishes:

• 605/US3/03 - Bright Brass
• 606/US4/04 - Satin Brass
• 609/US5/05A - Antique Brass
• 612/US10/10 - Satin Bronze
• 613/US10B/10B - Dark Oxide Bronze, Oil Rubbed
• 619/US15/15 - Nickel Plated
• 625/US26/26 - Bright Chromium Plated
• 626/US26D/26D - Satin Chromium Plated
